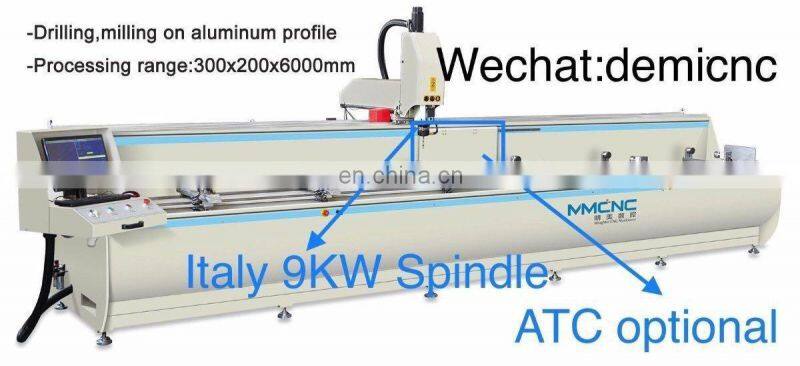

Aluminium Profile 3 Axis LCJG3-CNC-6000 Aluminum Curtain Wall/Facade CNC Drilling Milling Machining Center with ATC,Italy Spindle,Japan Yaskawa servo motors&drivers

 auminium profile machining center

 Feature :

1. Feature
1.1  This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,

window-door and curtain wall industry,it is also suitable for processing milling,chamfering,

engraving plane surface and other procedure.
1.2  Main spindle adopt air-cooling electric main axis from Italy,have the function of high precision,

high safety and high reliable.
1.3  Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming

software.It can transform processing code automatically,have the function of easy operation,

high efficiency and lower labor intensity.
1.4  Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y

and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision

of whole machine.
1.5  Inside blades storage can hold 6 sets blades,the handle is approved ISO30 standard,it is very safety and reliable.
1.6  Adopt manual pump oil supply system,blades adopt system control system control spray

cooling device.
1.7  The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8  The main components adopts steel structure and they are all through aging treatment.

2. Specification
2.1  Power supply: 380V/50Hz (Can produce according to clients need)
2.2  Air pressure: 0.5~0.8MPa
2.3  Total power: 12KW
2.4  Main axis power: 9KW
2.5  Max rotary speed: 24000/min
2.6  X axis journey: 6000mm
2.7  Y axis journey: 500mm
2.8  Z axis journey: 350mm
2.9  X axis speed: 50000mm/min
2.10  Y and Z axis speed:15000mm/min
2.11  Overall dimension:6890mm×1600mm×2200mm
2.12  Weight:2360KG
2.13  Tool magazine:8 Tools
2.14  Servo Motor:Japan YASKAWA

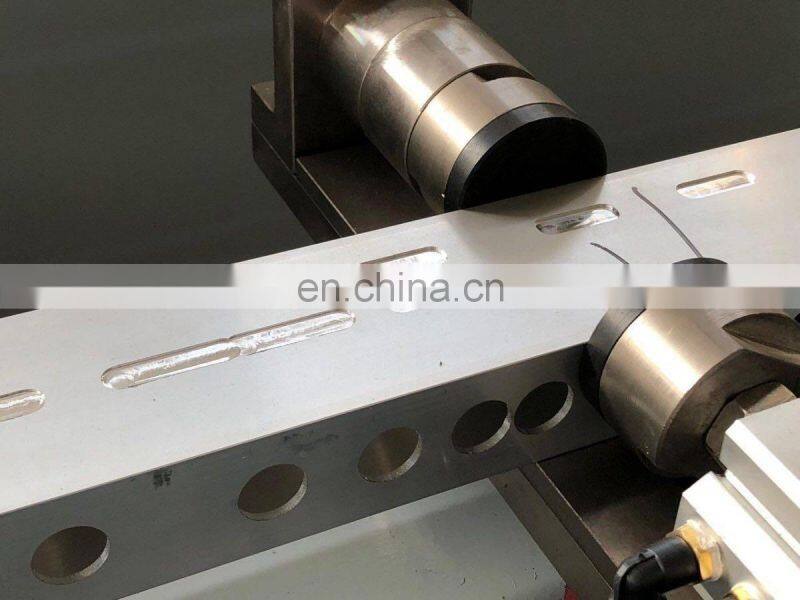

Aluminum Profile CNC Milling Samples:

Detailed Photos:

Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.

As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.

Main products include aluminum doors and windows, aluminum curtain wall, aluminum window, UPVC window. We have advanced machining centers, large planer, horizontal boring machine and other specialized machining equipments and realize the specialized and scale model manufacturer.

 Pre-Sales Service :

        * Inquiry and consulting support.

        * Sample testing support.

        * Design drawing of the factory workshop

        * View our Factory.

 After-Sales Service :

        * One year warranty time, we can repair and replace parts for free in one year.

        * Free training course at our factory with professional engineers.

        * Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

        * Engineers available to service machinery overseas.

        * We provide the consumable parts at agent price when you need replacement

        With us your money in safe,your business in safe!
