Latest product of Notching Saw For Aluminum Profile

Standard Package

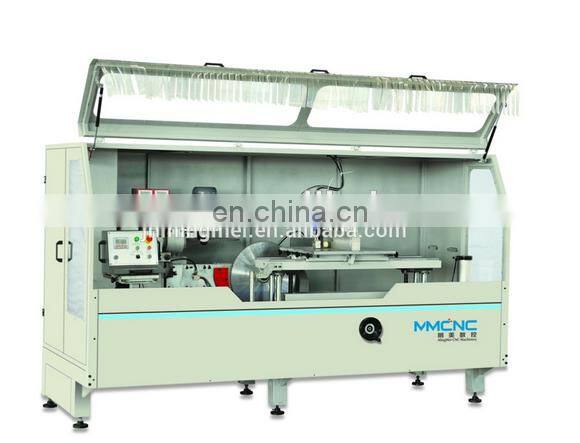

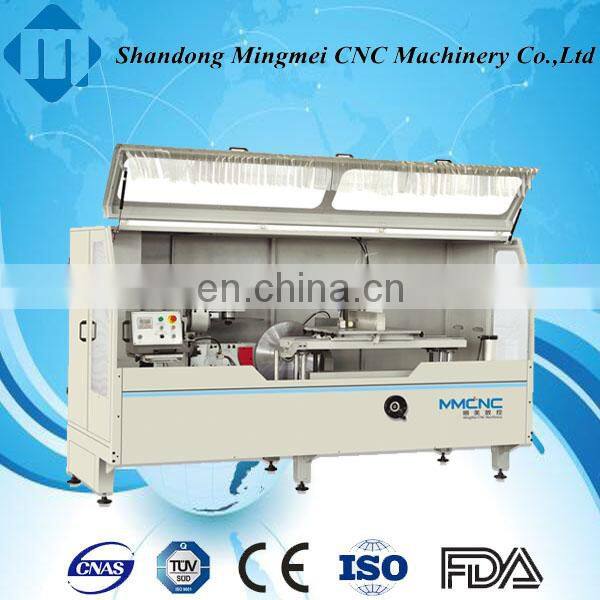

Notching Saw For Aluminum Profile     LJK-600

1. Feature:

1.1  This machine is specialized design for aluminum curtain wall and skylights industry.

1.2  It have the function of easy operation, reliable performance, advanced technology and easy maintenance.

1.3  This machine is mainly used for end parts angle milling on aluminum curtain wall and skylights profile

1.4  Using carbide blade, fast cutting speed, high efficiency and high processing precision.

1.5  Two saw heads work together, can be cut the needed angle on end profile at one time.

1.6  Two blades can sawing within any range of +/-45 degree.

1.7  Have magnetic scale control system, can display the cutting angle and work table height.

1.8  Work-table and positioning device if easy to adjust.

2. Technical Parameter

2.1  Input power              2*2.2KW

2.2  Power supply             380V/ 50Hz (According to clients need)

2.3  Air pressure              0.5~0.8MPa

2.4  Motor rotary speed        2800r/min

2.5  Saw Blade specification    Φ600xΦ30x4.4 Z=120

2.6  Saw blade sawinging range  +/-45°

2.7  Cutting depth             Max 200mm

2.8  Cutting feeding speed      0~3m/min

2.9  Overall dimension         3250x1500x1800mm

2.10  Weight                 1700kg

Product detail photos
