cnc aluminum profile door frame bending machine
- qingdao
- T/T Credit Card
You May Like
-
Single Head 45 and 90 degree upset aluminum window equipment
-
CNC thermal break aluminum window bending machine
-
Hot sale popular aluminum window frame assembly machine
-
Aluminum Tube Profile Automatic Cutter Machine
-
Aluminium Door Window Machine CNC Automatic Double Mitre Cutter
-
Aluminum Tube Aluminum Cylinder 90 Degrees Automatic Cutter Machine
Product Details
| Brand Name | Sinon |
witnin wooden case / nude packing or custumed
Product Description

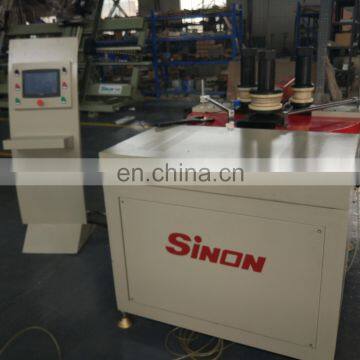

cnc aluminum profile door frame bending machine
| Details |
- Quipped with three drive rollers
- The maximum hydraulic pressure can be up to 30 tons.
- It can bend all kinds of aluminum profiles ( normal profiles, thermal break aluminum , alu-plastic-alu profile, alu-plastic profile) and rectangular steel pipe, stainless steel tubes etc.
- All profiles can be bent to designed shapes at one time which is of high efficiency and without wear; Or it can be bent multi-times if needed.
- Three drive rollers are controlled by CNC , smooth movement and accurate positioning. Positioning accuracy : + /-0.02mm.
- Distance between three drive rollers can be adjusted as your requirement.
- It can bend one radius arc ( ordinary “C”-shape arc ) , also can bend two radius arc (“U” –shape arc ) , and also three radius arc ( bread arcs and ellipses) ; Both planar circular and vertical surface can be bent.
- Function of resilience calculation and compensation. For the same radius arc , it can automatically calculate the amount of resilience . Thus , it saved a lot of profile and time when bend different profiles.
- It can store a certain amount of program ( depending on memory space ) , and enter as much information as in the program in order to easily identify it next time.
| Technical Specifications |
Min. profile diameter | 200mm |
Drive rollers diameter | 65mm |
Working mode | cnc control, hydraulic drive |
Distance between drive rollers | 260mm |
Accuracy for drive roller | 0.02mm |
Max. moving track for upper roller | 400mm |
Max. profile width | 260mm |
Power for hydraulic station | 4.5kw |
Max. hydraulic station | 30T |
Voltage | 380VAC/50HZ (can change as requirements) |
Dimension (L*W*H) | 1300*1100*1500mm |
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
