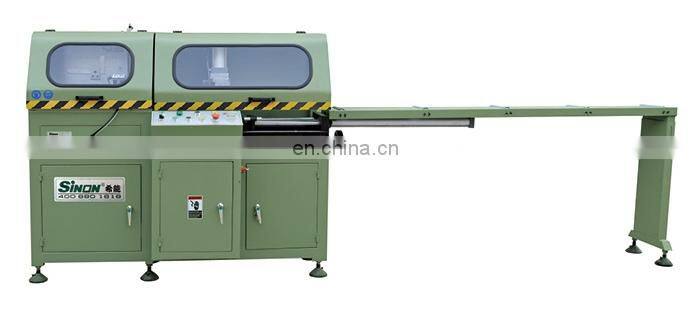

Corner Connector Automatic Heavy-duty Cutting Saw / Plastic Profile Cutting Machine
- Qingdao
- T/T Credit Card
You May Like
-
Single Axis or double axis copy router for aluminum window and door
-
number display mitre saw cutting saw for aluminum-alloy window door production line
-
Automatic Single Head Saw Aluminum Window Corner Key Cutting Machine
-
Aluminum Profile Copy Milling Machine for making Window Holes
-
agent wanted in saudi arabia welding machines for aluminium fabrication upvc plastic window machines pvc door making machine
-
aluminum window machine double door hinge drilling machine of high quality
Product Details
| Brand Name | Sinon |
wooden case or according to customers' demand
Product Description
Corner Connector Automatic Heavy-duty Cutting Saw / Plastic Profile Cutting Machine
Details
- It is used for cutting corner connecter of aluminium profiles
- Adopts industry grade computer system, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.2mm(optional: cnc model)
- Automatic alarm function when without work pieces or finish cutting
- Auto device to realize the continuous feeding
- The feeding stroke can adjustable within 3-600mm
- Saw blade rotates smoothly due to high accurate main spindle, steady running with high precision
- The speed of saw blade infeed in linearity adjustable by air-hydraulic cylinder
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
Technical Specifications
Product Name | Auto feeding aluminum profile cutting machine |
Power supply | 380V 50HZ |
Total power for motor | 3.0KW |
Motor’s rotation speed | 2800r/min |
Air working pressure | 0.5-0.8MPa |
Blade specification | Φ500mm×φ30mm×4.4mm |
Cutter feeding speed | 0-3m/min |
Cutting length | Max 180mm Min3mm |
Blade W*H | 135*135mm |
Cutting angle | 90° |
Repeat locating length tolerance | ±0.20mm |
Cutting profile surface plane | ≤0.10 mm |
Cutting angle tolerance | ±5′ mm |
Cutting profile surface roughness | Ra12.5um |
Contour dimension(L*W*H) | 5500×1700×1900mm |
Weight | 750kg |
Details Photo
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
