SG-II-80 Hydraulic Stainless Steel Pipe End Expanding Machine for Pipe Expander or Tube Reducer
- Shanghai China
- T/T Credit Card
You May Like
-
SG-I-40 Single Head One Station Hydraulic Stainless Steel Pipe Reducer Machine Also for Pipe Expander Function
-
SG-80 Oil Pressure Type Metal Tube End Forming Machine for End Shaping
-
SG-II-60 Single Head Steel Pipe End Reducer Machine
-
ZSG-60 Low Noise Hydraulic Tube Rotary Swaging Machine to Taper Reduce Pipe Diameter
-
DEF-FA/52 High Speed Double Head Round Bar Chamfering Machine, Rotary Deburring Machine, Chamfering & Deburring Machine
-
DEF-FA/52 Automatic Hydraulic Automatic Double End Pipe Chamfer Cutting Machine
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | SG-II-80 stainless steel pipe end expanding machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SG-I-60 Automatic hydraulic steel pipe end flanging machine, copper tube end expanding machine, hot sale hydraulic pipe expander
Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language
Main specification
1) PLC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds
Technical parameter
Type | SG-40 | SG-60 | SG-80 | SG-100 |
Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
Max processing length(mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight(kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The max processing length can according to customers requirement. | |||

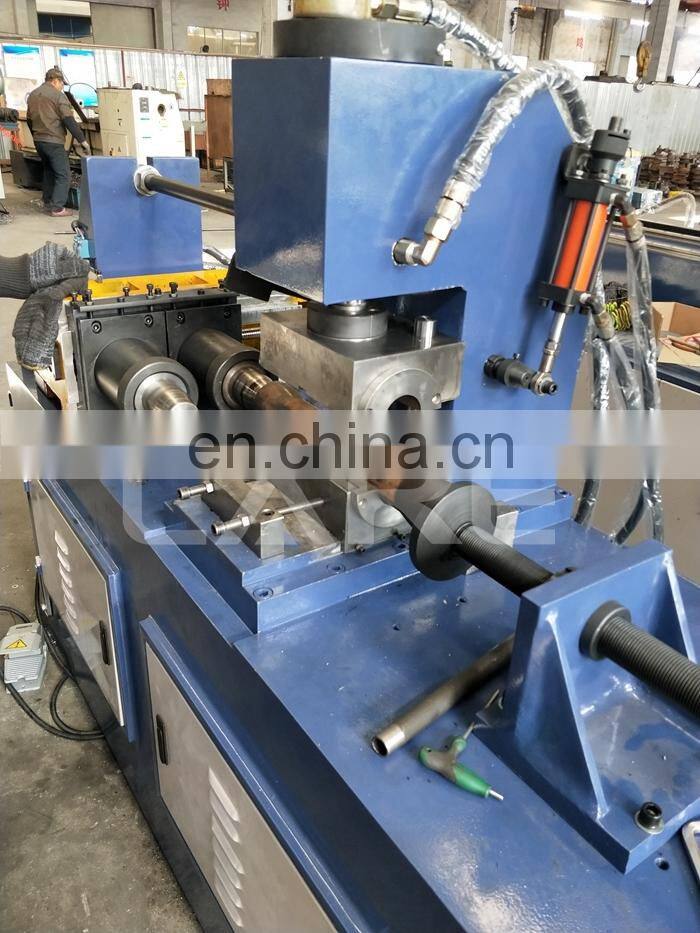

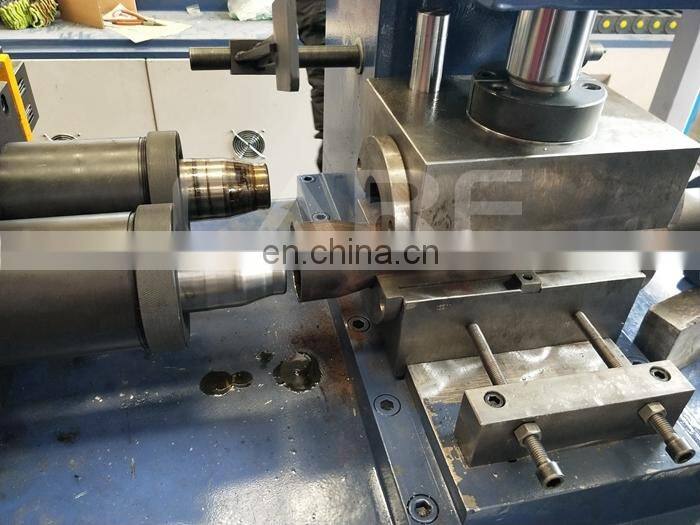

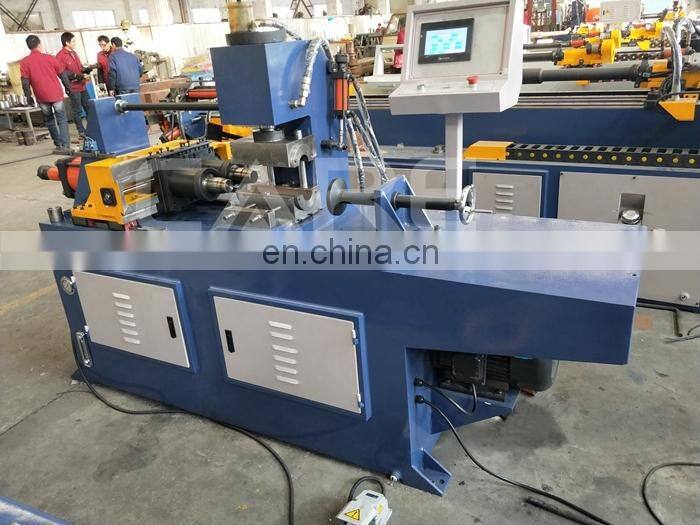

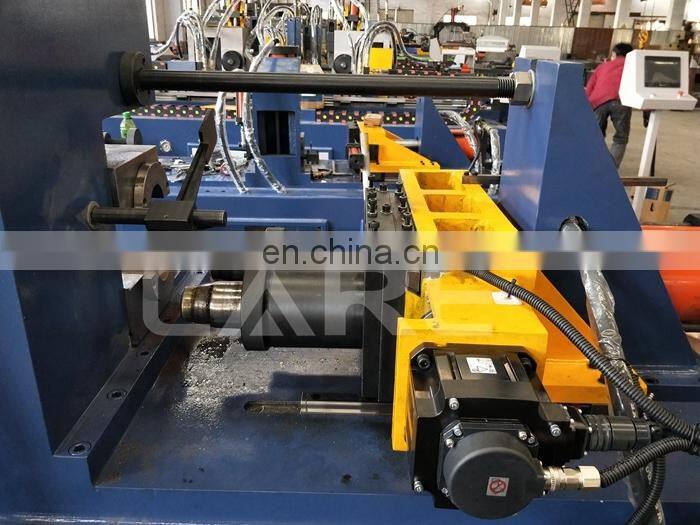

Machine photo

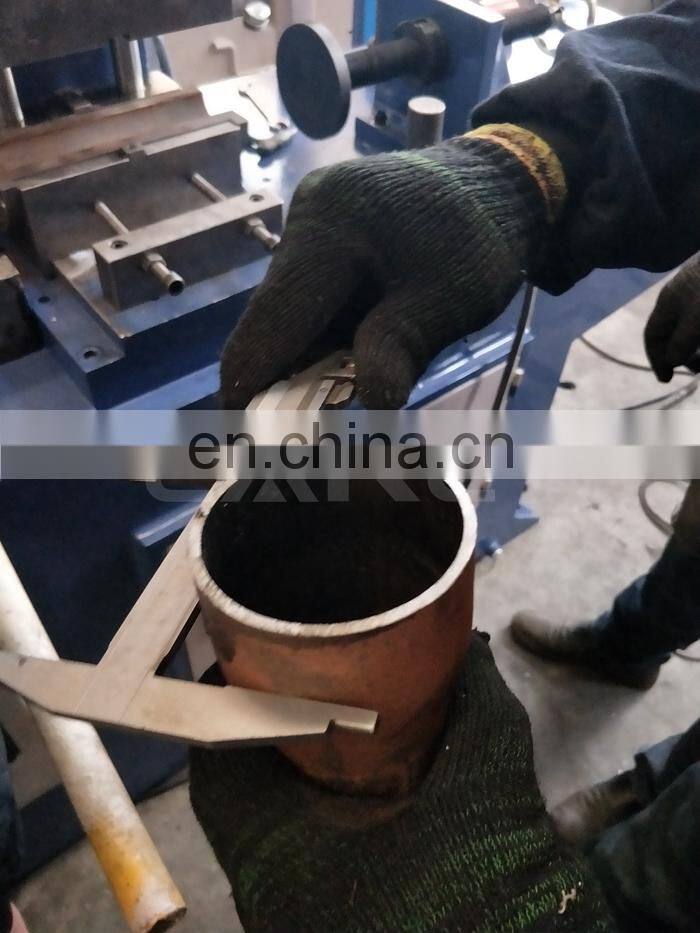

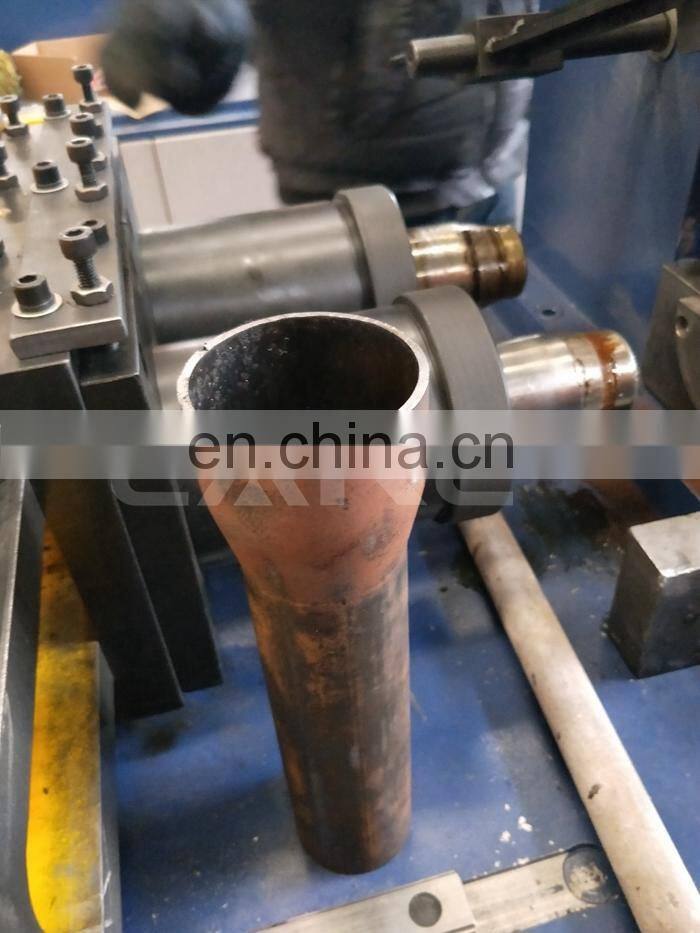

Pipe samples
To know more information, please contact us at any time.
