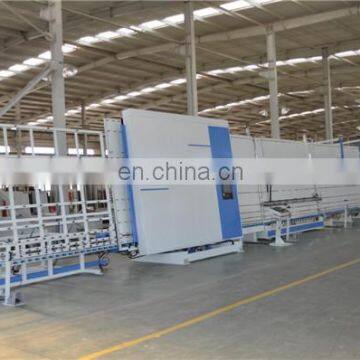

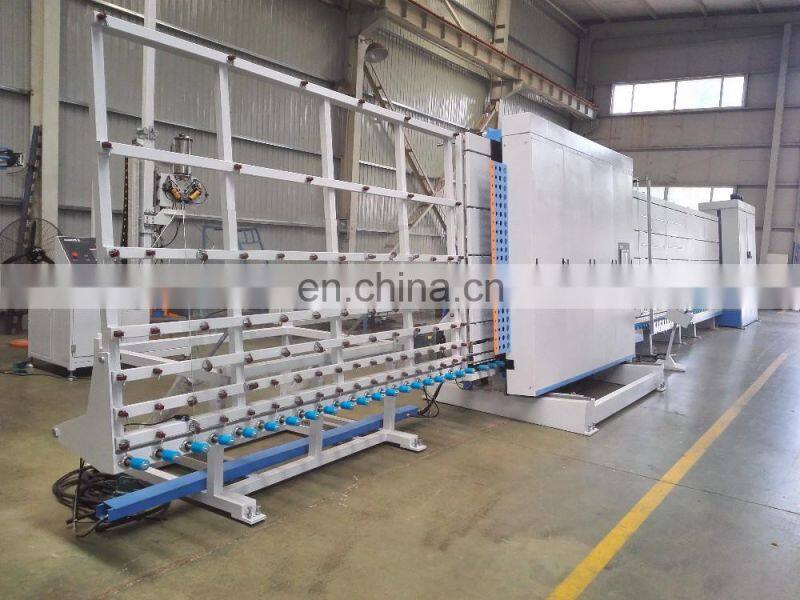

Parker Vertical Automatic Flat Press Insulating Glass Produce Line

Parker Vertical Automatic Flat Press Insulating Glass Produce Line

Model: IGV25-S

Feature:

1.The electric component, sensor and PLC auto-controlling is imported low power supply;

2.The appliance is efficient for the operator can input the order continuously;

3.Touching screen is imported originally. It is easy to operate. The process and fault can be showed automatically;

4.It is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep;

5.It can produce big and small scale insulating glass(Optional)

6.Cleaning Part is consisted of stainless steels. Three pairs of brush can work separately. It can recognize the LOW-E glass automatically. So it can protect the LOW-E glass from scratching.

7.This machine adopts inverter control transmission motor. So it can easily slow down and accelerate.

8.This machine has the self- diagnosis function, which is easy for check the error.

9.Germanic technology is adopted in the whole line and main components are imported from world famous brand since it will be stable, convenient to maintain, and easy to handle.

10.Insulating glass like standard glass, overlength glass, coated glass, low-E glass, big and small glass, varity glass, special shape glass, triple glass, etc can be produced.

11.The carbon steel plate with high strength and accuracy is adopted as the whole back plate, since it's laser cut and CNC bent with high strength and easy to install.

12.The convey part is equipped with safe guard for easier maintenance and safety.

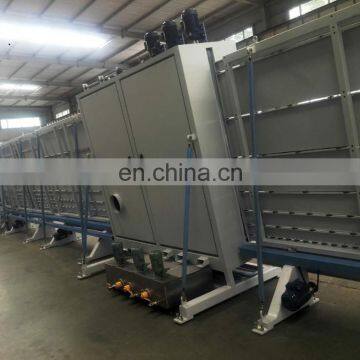

Washing and drying section.

1.This section is equipped with stainless steel to prevent any rust.

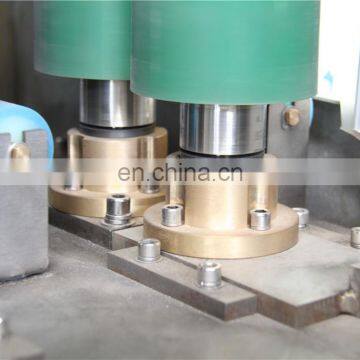

2. 7 motors are equipped. There are 6 motors supplying 6 brushes and 1 motor supplying the rubber. There are 3 separated tanks outside each pair of brushes with thermostatic heating system to improve the cleaning effect. The first pair of brush won't work when low-E or tempered glass processed for protection the film.

3.Germany industrial plastic(avoid getting rusty) bearings are used so there is no need to maintain daily.

4.This machine adopts high pressure fan, equipped with special air knife with bigger angle others which can improve the drying effect. Multistage frequency conversion control is exclusively used, and multi-speed revolution optimization function can realize all kinds of size of glass movement.

5.Big color touching screen can lively monitor working stage of each section, equipped with self-diagnosis function, easy to maintain, also with remote diagnosis function.

Assembling section

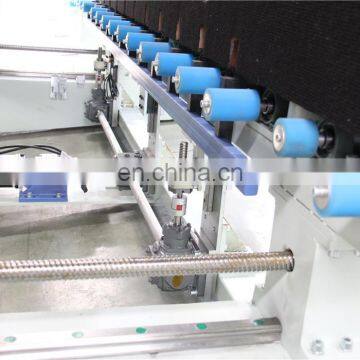

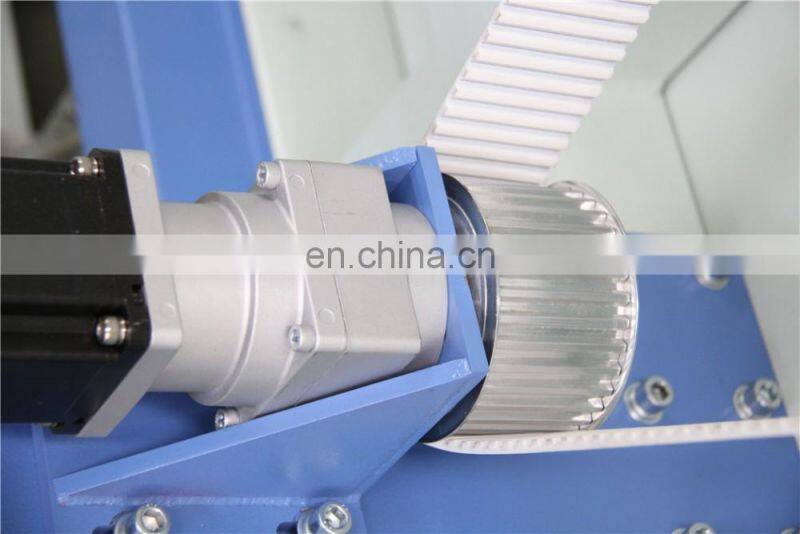

1.Servo motor and ball screw is adopted for locations and assembling for the high accuracy.

2.There are 22 suckers with sensor switch under each in the assembling cabinet. The glass will touch the sensor switch when coming by, then the sucker up the touched sensor switch will suck the glass. Other suckers with sensor switch being not touched won't work.

3.The distance between two boards of the pressing cabinet can be adjusted automatically according to the thickness and size of the glasses.

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
