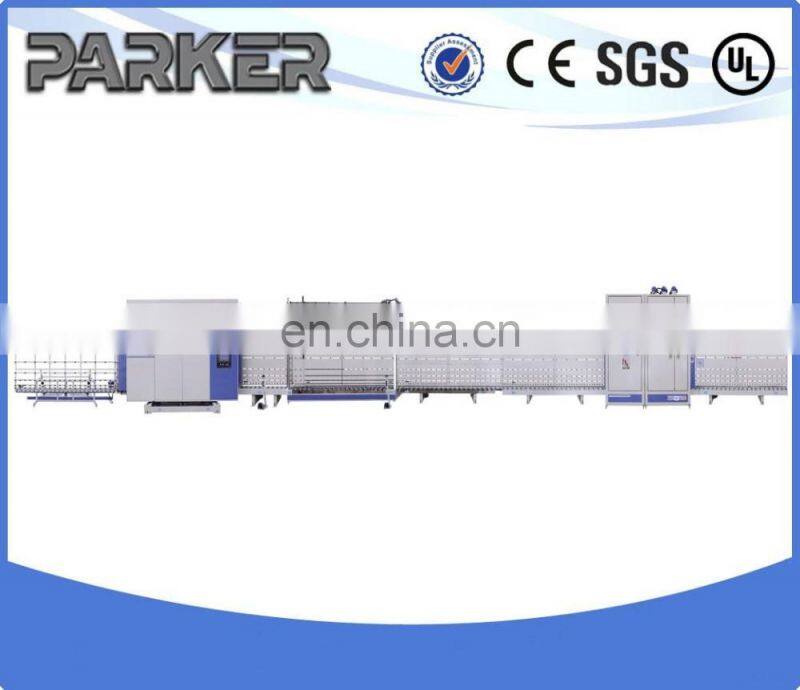

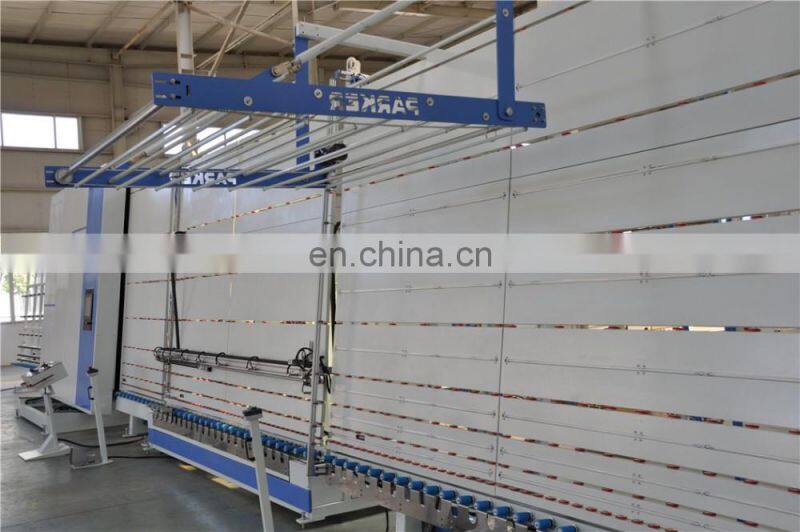

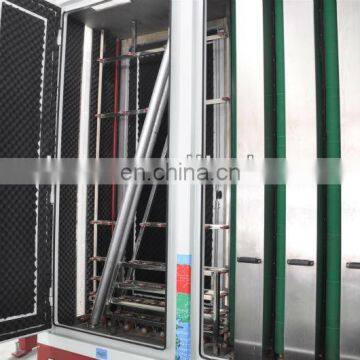

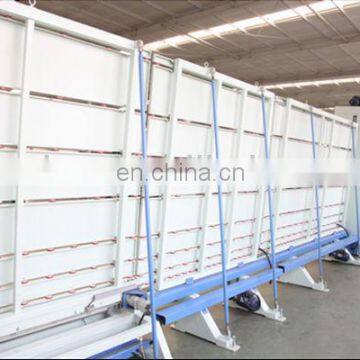

Parker Vertical Flat Press Insulating Glass Double Glazing Glass Produce Line

Parker Vertical Flat Press Insulating glass Double Glazing Glass Produce Line

Model: IGV27-S

Feature:

1.The whole line adopts Germany Technical. This line has passed CE.

2.This machine has self-diagnose system, easily check the error.

3.It can identify the Low-E glass and coating glass automatically. So it can stop the first hard brush automatically protecting the glass from scratching.

4.The PLC and proximity switch adopt Schneider imported for France.

5.It has high precision and works steadily. Because we adopt the screw and flat press.

6.Servo driver and servo motor imported from France can control glass-combining precisely.

7.This machine adopts inverter control transmission motor. So it can easily slow down and accelerate.

8.The cleaning part adopts Germany Industrial Plastic Bearing.

9.It can produce big and small scale, tri-glass insulating glass(Optional)

Parameter:

Voltage: 380V 50HZ

Power: 20.5KW

Air pressure: 0.5-0.8Mpa

Air consumption: 200L/min

Max. process dimension: 2700mm x 3500mm

Min. process dimension: 250mm x 380mm

Max. thickness: 60mm

Convey speed: 12-50m/min

Cleaning Speed: 0-8m/min

Glass cleaning thickness: 3-12mm

Max. processing speed: 40m/min

Overall dimension: 26000mm x 2800mm x 3500mm

Weight: 3200Kg

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
     CNC machining center

     Aluminum window door/ curtain wall making machine

     UPVC window door making machine

     Insulating glass making machine
