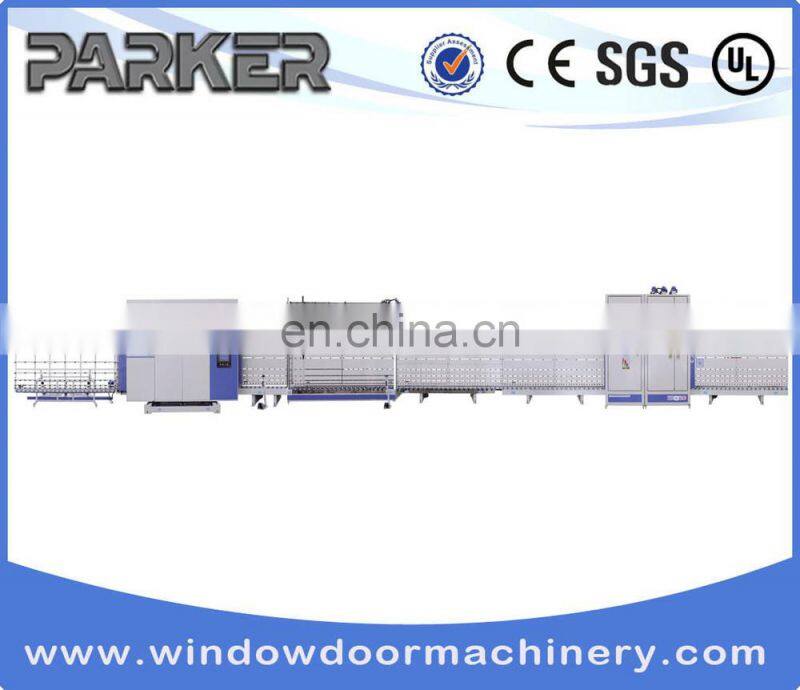

1800mm Flat Press Insulating Glass Production Line Machine/Double Glass Machine

FOB Price

US$ 38,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PARKER	Place of Origin	Shandong, China
Certification	CE
Warranty	1 Year, 1 year	Weight	6500Kg
Dimension(LWH)	26500mm 2800mm3500mm	Production Capacity	800pieces/day
Condition	New	Voltage	380V 50HZ
Power(W)	32KW	Machine Type	Insulating Glass Production Line

1800mm Flat Press Insulating Glass Production Line Machine/Double Glass Machine

Product Description

Model:IGV8-S

Feature:

ØThe whole line adopts Germany Technical. This line has passed CE.
ØThis machine has self-diagnose system, easily check the error.
ØIt can identify the Low-E glass and coating glass automatically. So it can stop the first hard brush automatically protecting the glass from scratching.
ØThe PLC and proximity switch adopt Schneider imported for France.
ØIt has high precision and works steadily. Because we adopt the screw and flat press.
ØServo driver and servo motor imported from France can control glass-combining precisely.
ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
ØThe cleaning part adopts Germany Industrial Plastic Bearing.
ØIt can produce big and small scale, tri-glass insulating glass(Optional)
ØCan realize outer-assembling

Parameter:

ØVoltage:	380V 50HZ
ØPower:	32KW
ØAir pressure:	0.5-0.8Mpa
ØAir consumption:	200L/min
ØCleaning Speed:	0-12m/min
ØMax. convey speed:	40m/min
ØMax. process dimension:	1800mm x 2500mm
ØMin. process dimension:	250mm x 380mm
ØGlass type:	Ordinary-coated
ØMax. thickness of insulating glass:	12-60mm
ØGlass cleaning thickness:	3-12mm
ØOperating height:	485±50mm
ØDepth of glue coating:	0-20mm
ØWorking direction	Left-right or Right-left
ØStepped glass size	Vertical: 0-50mm, horizontal: 0-250mm
ØWorking type	Lead screw
ØOverall dimension:	26500mm x 2800mm x 3500mm
ØWeight:	6500Kg
