Insulating Glass Sealing Machine / Double Glass Sealing Machine / Silicone Sealing Machine
- Qingdao Port China
- T/T Credit Card
You May Like
-
Low-E Insulating Glass Production Line / Double Glazing Glass Production Line
-
CNC Aluminum Spacer Bending Machine For Insulating Glass Production Line
-
Automatic Glass Cutting Machine Any Shape
-
Automaique Glass Cutting Machine/ Air Floating Glass Cutting Table
-
CNC Aluminum Spacer Bar Bending Machine / Double Glass Making Machine/Double Glazing Machine
-
IGV27-S Line For Insulated Double Triple Glass Production/Insulating Double Glazing Glass Production Line
Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| Certification | CE | After-sales Service Provided | Overseas service center available | |
| Warranty | lifetime | Weight | 600kgs | |
| Dimension(L*W*H) | 1100mm x 950mm x 1630mm | Production Capacity | 5000 pieces per shift | |
| Condition | New | Voltage | 380/220/110 V etc | |
| Power(W) | 50Hz | Machine Type | Insulating Glass Production Line |
Product Description

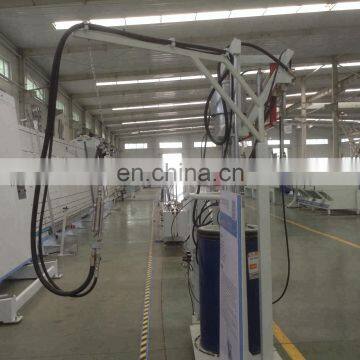

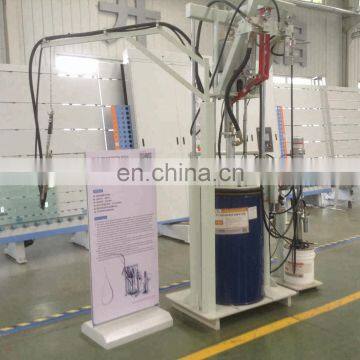

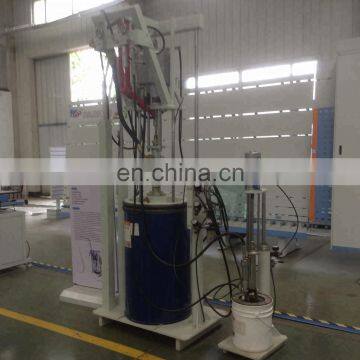

insulating glass sealing machine / double glass sealing machine / silicone sealing machine
Model: TCC300A
Features:
♦ This is a special purpose and machine spreading two-part polg sulfide sealant when making aluminum groove type insulating glass and curtain wall glass.

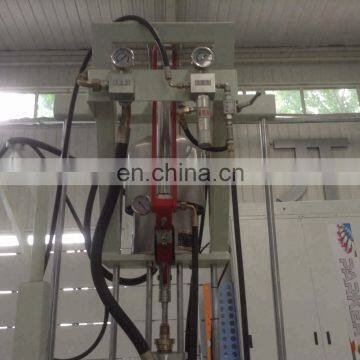

♦ The main and auxiliary pumps activated by hydraulic lubrication oil and compressed air, controlled by no-touch-point electric control system, is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant, high in efficiency and convenient to use and maintain, so it is one of the most important equipment to make aluminum groove type insulating glass and curtain glass.
♦ Most of the parts on the machines are imported.
Parameter:
♦ Voltage: | 380V 50HZ |
♦ Power: | 1.1KW |
♦ Air pressure: | 0.5-0.8Mpa |
♦ Air consumption: | 0.6L/min |
♦ A pump pressure plate size: | Φ565 (50 gallon barrel) |
♦ B pump pressure plate size: | Φ285 (5 gallon barrel) |
♦ Mixed rate: | 100:6.5-100:14.5 |
♦ Overall dimension: | 1100mm x 950mm x 1630mm |
♦ Weight: | 600kg |
♦ Glue type: | SILICON,SULFIDE,URETHANE |
Other Double Glazing Machines:

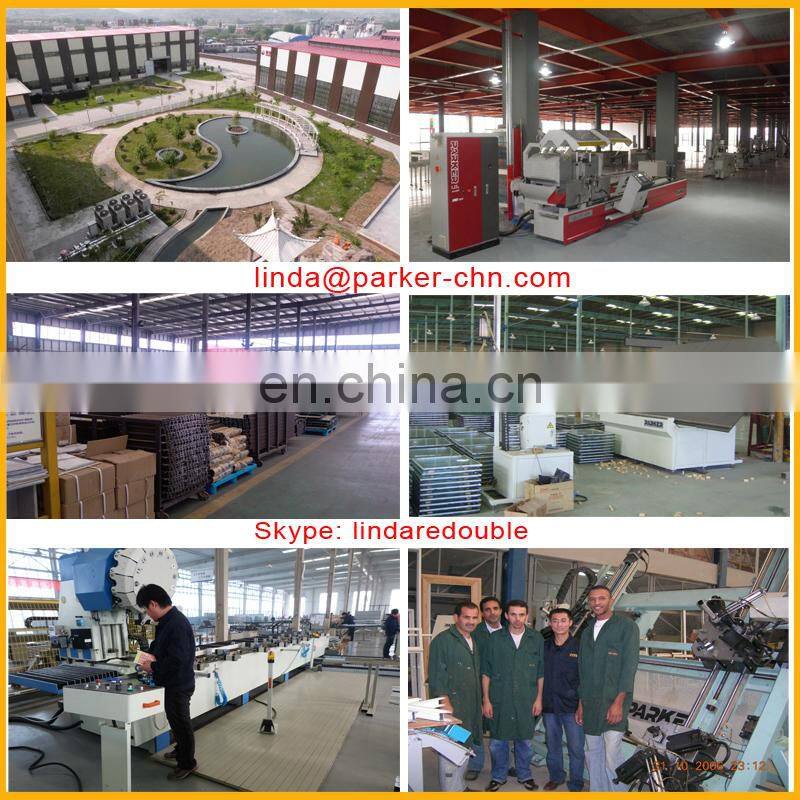

Factory:
Samples:
Exhibitions:
Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
