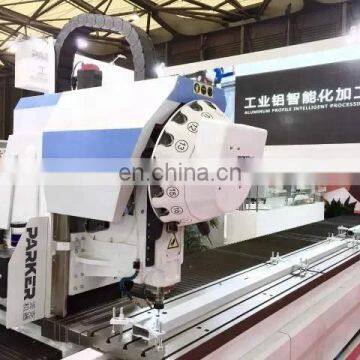

4.5m and 7.2m Stroke 3 Axis Milling Tapping Machine for Aluminum Profile

Product Application

DMCC-3 is used for industrial & Building Aluminum Drilling, Milling and Tapping process. It adopt Germany cnc contol cystem with high efficiency spindle, which suitable for big quantity working.

Main Features

1, Integrated bed, heat treatment setting, good rigidity.

2, The integrated design of the total power control cabinet and the body is convenient for transportation, installation and operation, and the stability is higher.

3, Equipped with chip guide grooves, the processing debris is all concentrated in the bottom drawer of the bed, convenient to clean up.

4, Double zone and double position processing, high efficiency, and according to the customer needs to increase the position.

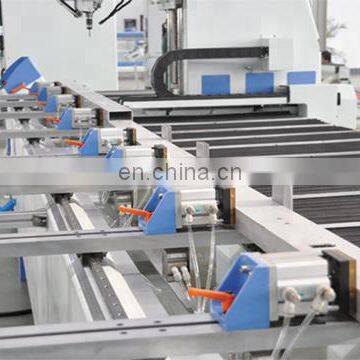

5, The fixture air road uses the original imported telescopic hose to make the clamp have a larger lateral moving range, which is suitable for the processing of various profiles.

6, The point control clamp brake is more convenient for the operator to move and locate the fixture.

7, The cable tank chain, the guide rail of each shaft, the drive rack and the screw rod adopt the full protection structure, which effectively prevents the processing of the debris from entering, and greatly improves the life of the transmission parts.

8, Automatic oil injection system with guide rail for easy maintenance

9, The micro lubricating system is equipped with plant micro lubricating oil, which is non-toxic and pollution-free, effectively protecting the tool and improving the tool life.

10, The main shaft is the original Taiwan brand, with the maximum speed of up to 12000RPm.

11, The first wheel of Taiwan is equipped with 16 tool cutters and 3 sec.

12, With the function of rigid tapping, the processing speed is fast, and the precision of the tapping is high.

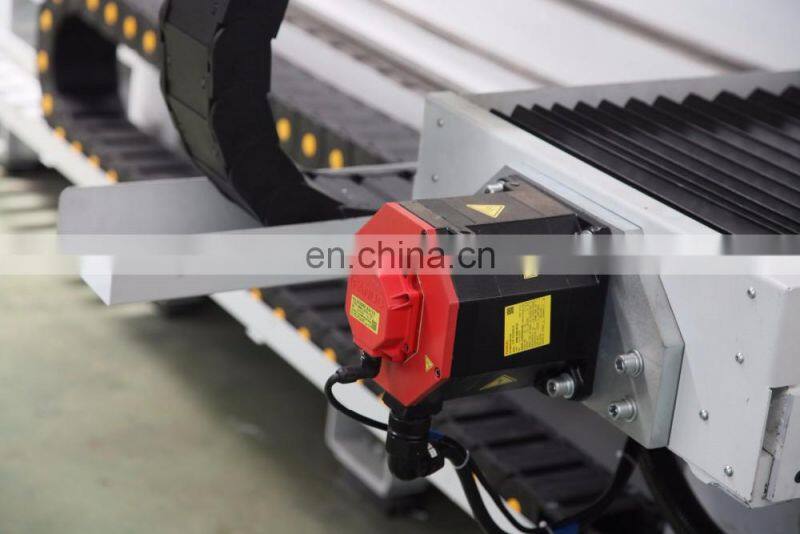

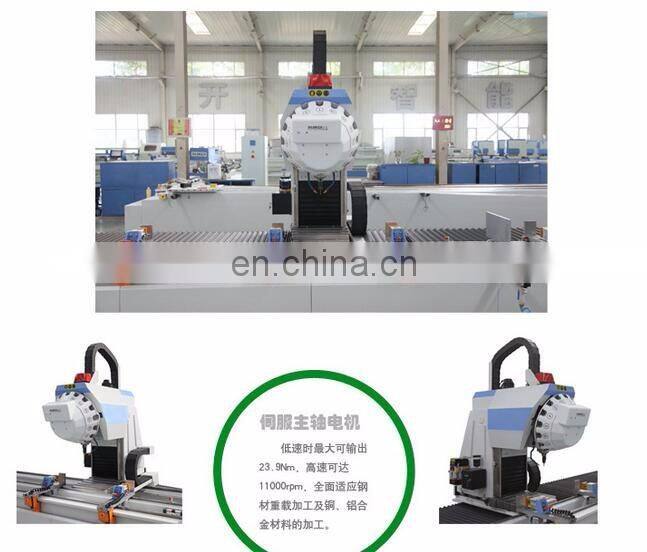

13, The servo spindle motor can output 23.9Nm at low speed and can reach 11000rpm at high speed. It is fully adapted to the heavy load processing of steel and the processing of copper and aluminum alloy materials.

Machine Parts

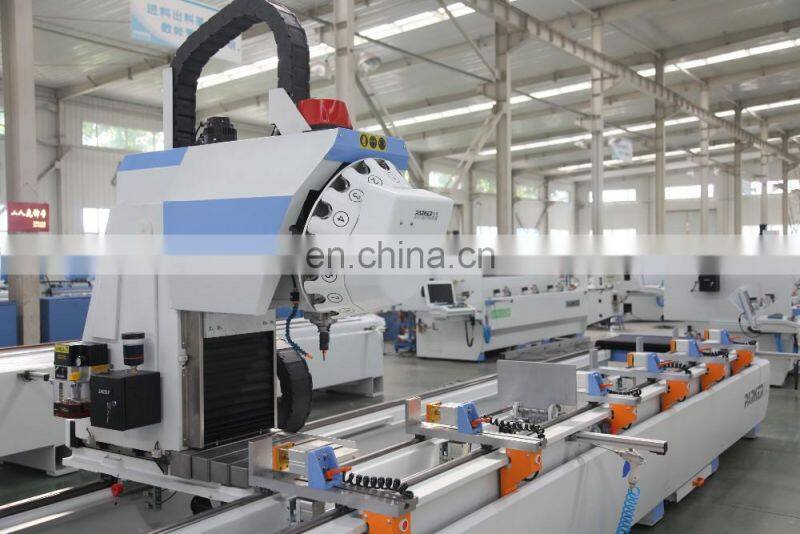

Name: Turret-style tool magazine

Original: Taiwan

Using large-capacity tool magazine turret from Taiwan enhanced the efficiency of automatic tool changing. The max diameter is 16mm, the min diameter is 4mm, it could process the profile of 20mm.

Main Parts

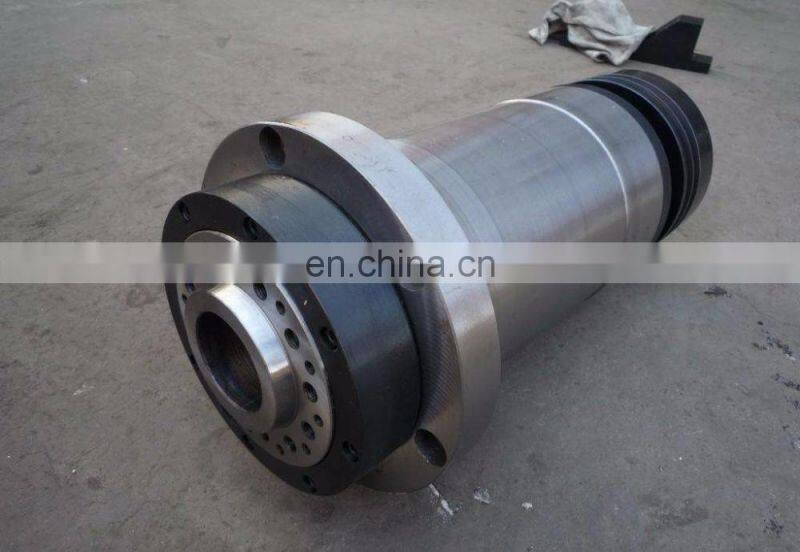

Name: Main Spindle
Brand: CELL
Original: TAIWAN

Machine Parts

Name: Lubrication & Cooling Syterm
Brand: Accue-Lube & Sagely lubrication Systerm
Original: USA
The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.

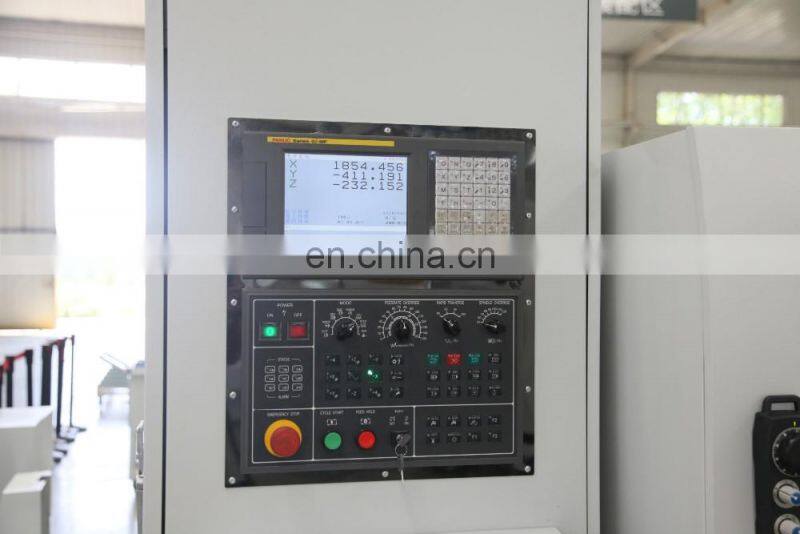

Brand: FANUC / PA
Original: JAPAN / GERMANY

The Systerm can use the CADCAM software drawing and processing. It is very practicality.

Main Parts

Main Parts

Main Parts
