INTRODUCTION

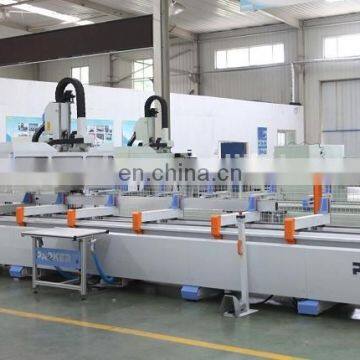

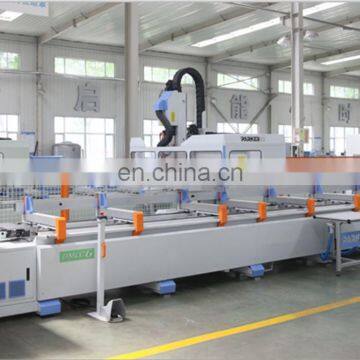

DMCC6 curtain walls drilling-milling processing center is designed for processing mounting hole, launder, lock hole and screw on various curtain wall profiles made of aluminum, light alloy or UPVC.
This curtain wall processing equipment can be used for window and door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, etc.
Our drilling-milling processing center is also applied in industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling and milling.
FEATURES
1.The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
2. It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
3.It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.
4. It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.
5. Equipped Six cutters positions, the cutter can change quickly and automatically .
6. The semi-closed guard improved security greatly.
7. Clamping device position can be optimized and put to right position automatically and freely.
Technique Parameter
☆ Y- axis speed: 0~80m/min
☆ Z- axis speed: 0~75m/min
☆ Main shaft rotary range: - 90º ~ 0º ~ + 90º
☆ Tool magazine: 6 different cutters, change cutter automatically
☆ Max cutter length: 165mm
☆ Air Pressure: 0.5-0.8Mpa
☆ Voltage: 380V/50Hz
☆ Total power: 10kw
☆ Number of clamping device: 8
☆Lubrication and cooling : Lubricating automatically, spray cooling
☆ Processing size range(WXHXL): 550×300×7300mm
☆Overall dimension：10100×2300×2600mm

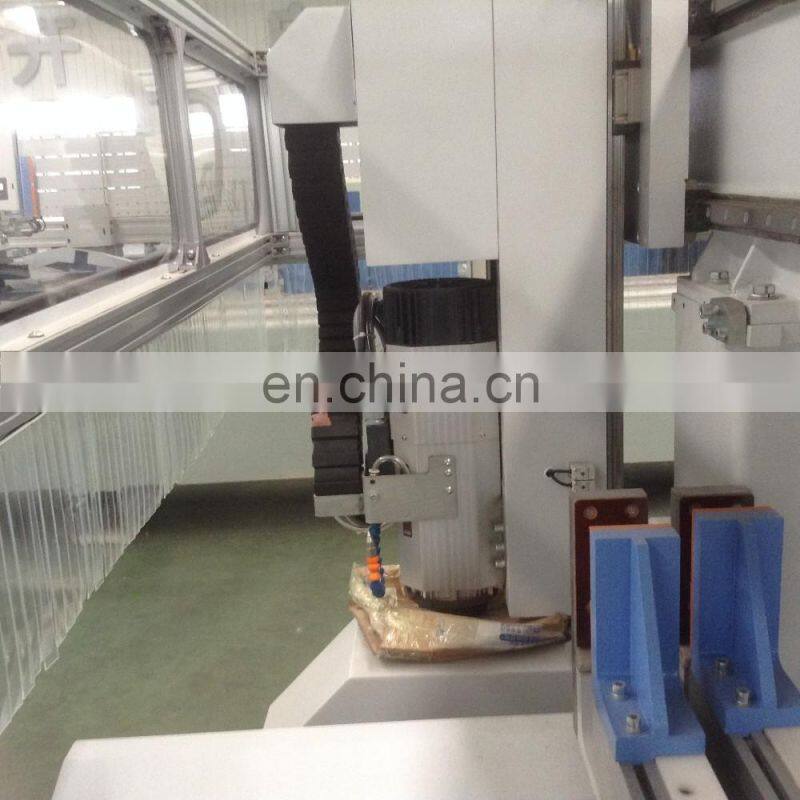

Electric Principal Axis
It adopts high -speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in ±90 degree.
Controlling System
It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.
Tool Magazine
Equipped Six cutters positions, the cutter can change quickly and automatically .

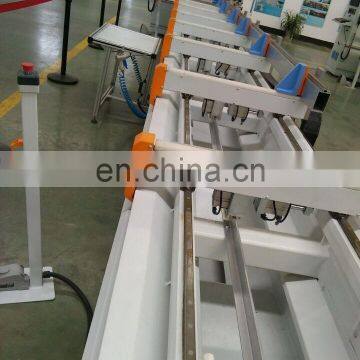

Clamping Device Optimization
Clamping device position can be optimized and put to right position automatically and freely.
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker service
What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
