Window Door Frame Making Machine/Aluminum Door Window Profile Cutting Saw/Alu-alloy Profile Cutting Machine (LJZ2-450X3700)

Window door frame making machine/Aluminum door window profile cutting saw/Alu-alloy profile cutting machine    (LJZ2-450X3700)

Double head cutting saw for aluminum profile window door,Cutting Saw For Aluminum Window and Door ,Aluminum window assembly machine,PVC window cutting saw

1. Product Description

1)This machine is used for processing the aluminum profiles at angles -45°,90°,45°,it makes aluminum profile cutting. pneumatic driving system and linear feeder are used in machine, The moving of two heads are driven by motors, it has the features of firm structure, reliability, good rigidity, high accuracy, large processing range, high efficiency and easy operation.

2).On engine bed's lathe bed is loaded with two saw heads. Left saw is fixed, fixed with the bolts on the guide rail ,the right saw heads can be moved to the size what you need and be locked.the cutting size is showing according to the ruler on the machine.

3).This saw can process both the PVC profile and Aluminum profile, and it is suitable for the middle production scale factory to choose this model., but if cutting Aluminum profile, this model is the best choosing.

4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.

2.Technical parameters

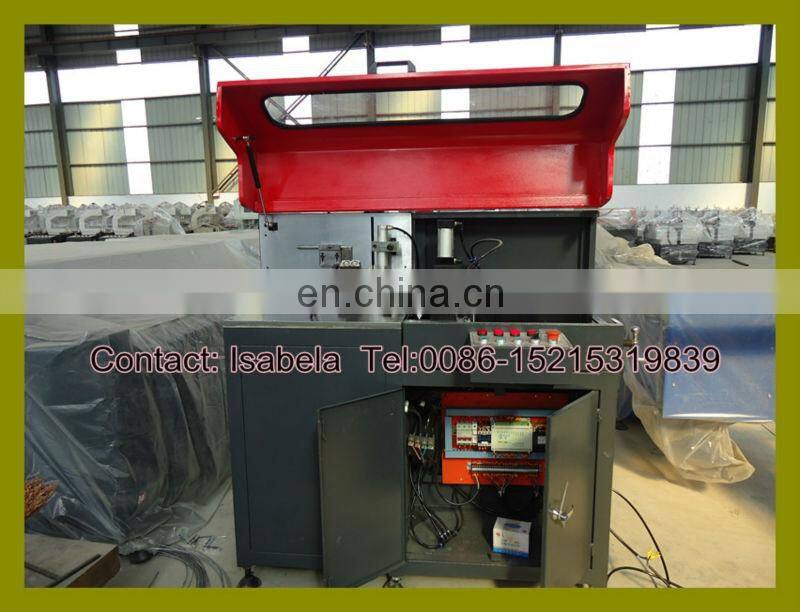

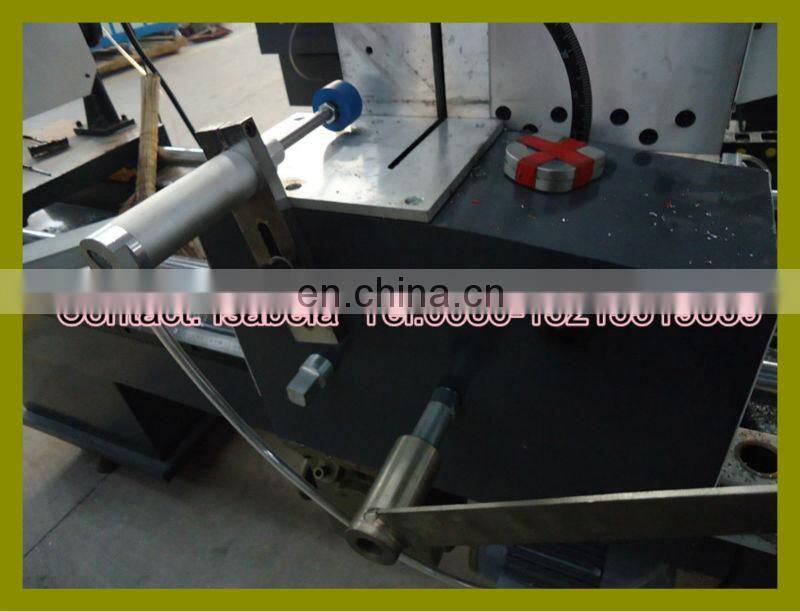

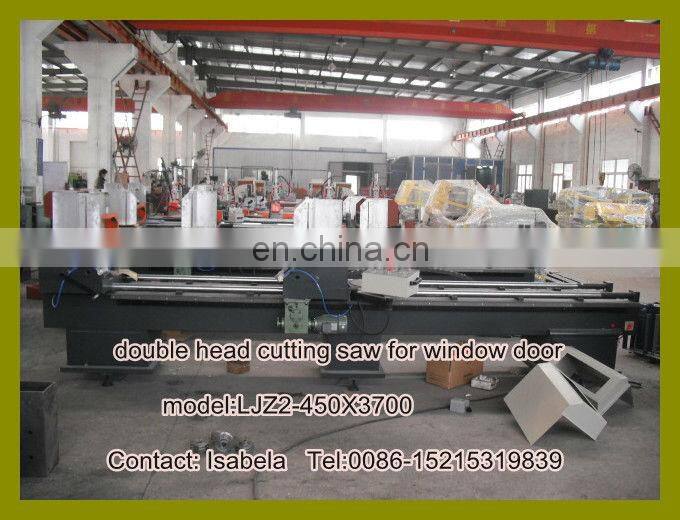

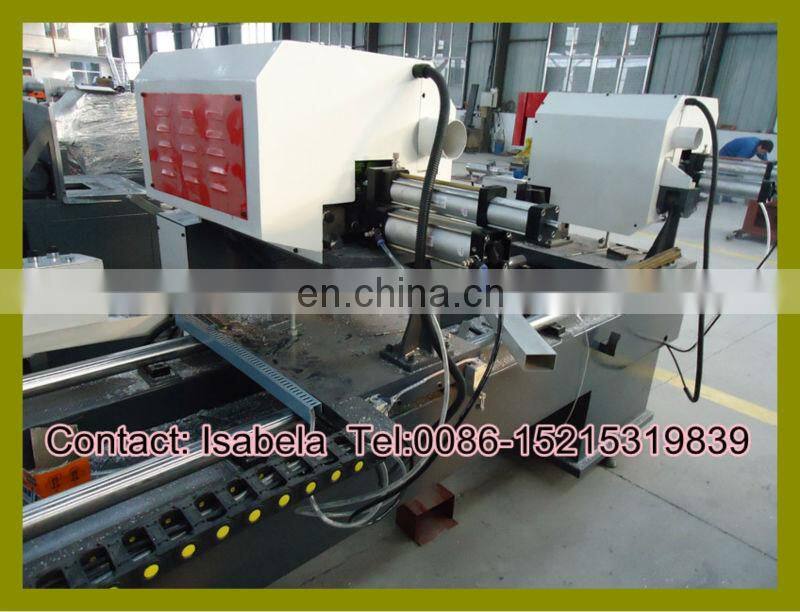

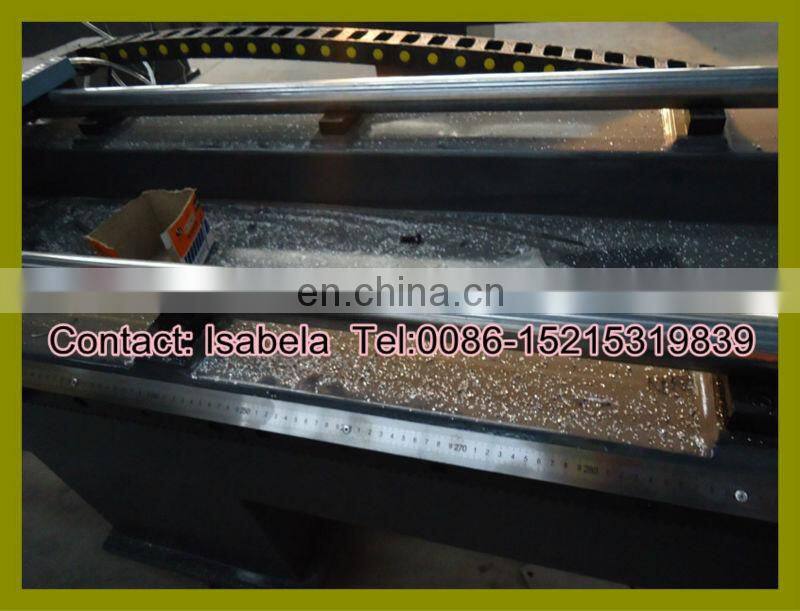

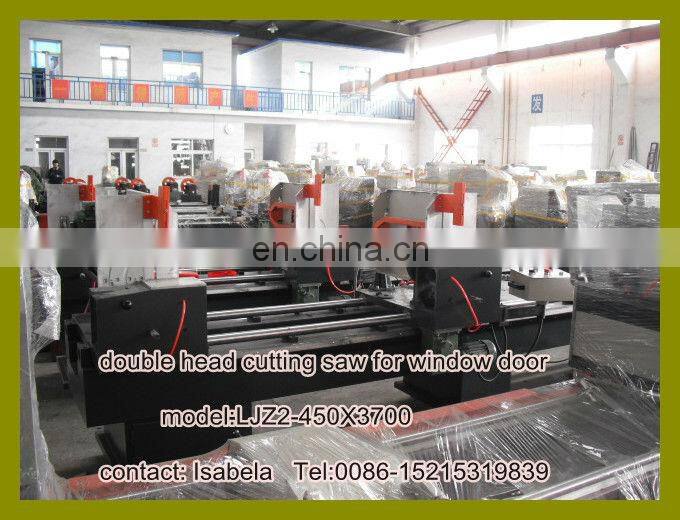

3.Machine model LJZ2-450X3700 photo

4.If you make Aluminum window door, you need the following basic machines

1).Double head aluminum profile cutting saw,model:LJZ2-450X3700

2).Lock hole milling machine,model:SZJ01

3).End milling machine,model:LXD-200

4).Automatic Corner connector automatic cutting saw,model:LJJ-140

5).Single head Corner combining machine,model:LZJ-02

Kindly note

These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.

5.Related other models of aluminum profile cutting saw

1).Aluminum profile double head precision cutting saw, model: LJZB-500*4200

2). Aluminum profile double head precision cutting saw with digital display, model: LJZY-500*4200

3). CNC Aluminum profile double head precision cutting saw, model: LJZ-CNC-500*4200

6.After-sale service

7. Contact information
