45 degree cutting glazing beads plastic window and door machine
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- Aluminum PVC window door lock hole milling machine
- 45 degree cutting glazing beads PVC window and door processing machine
- 45 degree cutting glazing beads UPVC window door processing machine
- 45 degree cutting glazing beads plastic window processing machine
- PVC Window Machine Upvc Machinery / Glazing Bead Cutting Saw Machine
- Glazing bead cutting saw UPVC window and door processing machine
Product Details
Brand Name: | Better | Place of Origin: | Shandong, China | Model Number: | SYJ03-1800 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
45 degree cutting glazing beads plastic window and door machine
SYJ03-1800 1.45 degree cutting 2.long life use 3.double cutting in one time 4.CE&ISO
Production process

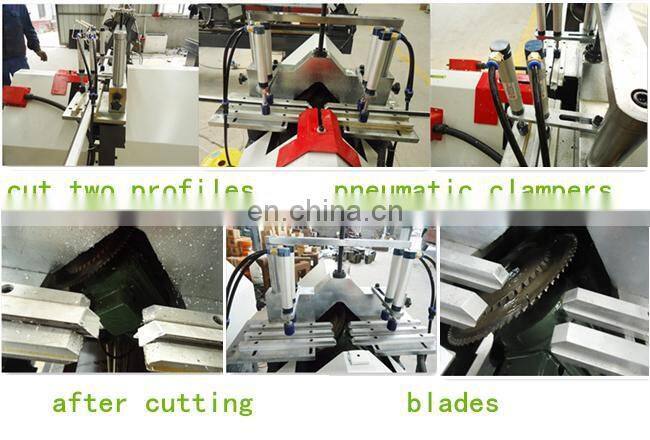

Glazing beads profile cutting machine near view
1.The machine is used for processing the glazing bead,Cutting range +45° / -45° and intermediate degrees.Two fixed,
opposed blade motors on the mobile carriage set at 45° to the workpiece support surface.4 cutting saw blades HSS
(High Speed Steel).Vertical pneumatic clamping system.Setting handle for easy mold adjustment.Adjustable cutting
speed with regulator on control panel.Double cutting in one time.The machine is standard equipped with completed
bearing and measuring conveyors.Particular care has been taken over the safety measures,both mechanical and
electrical.Power supply protects system from voltage overload.
2.Change of the saw blade.after the saw blade is used for a long time ,the blade must be grinded and keep it sharp,if
the blade is damaged. It must be changed ,use the spanner in the accessory box.
Working Air Pressure | 0.4~0.6Mpa |
Air Consumption | 80L/min |
Power Supply | As required |
Input Power | 0.75kw*2 |
Motor rotational speed | 2800 r/min |
Welding Profile Height | 20~100mm |
Processing length | 320~1800mm |
Outside Dimension | 1350*500*1350mm |
Weight(about) | 210kg |
We declare that all spare parts are top quality and famous brand.
PLC : | Mitsubishi |
Saw blades: | Wagen,Japan |
Bearings: | SKF,Sweden |
Switches: | Schneider |
Motor: | Sanyang,China |
Linear Guide rails: | ABBA,Taiwan |
Sensor : | Omron |
Air pipe: | Rishun,Japan |
Cylinder: | Baidi,Taiwan |
Solenoid Valve: | STNC,Taiwan |

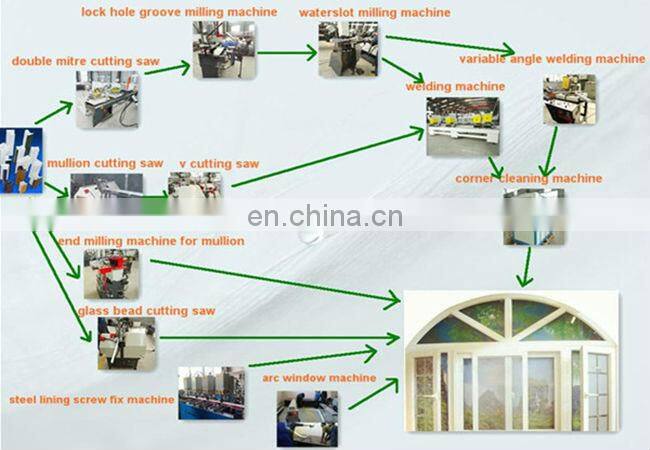

Necessary machines for making UPVC/PVC/plastic/vinyl windows and doors------

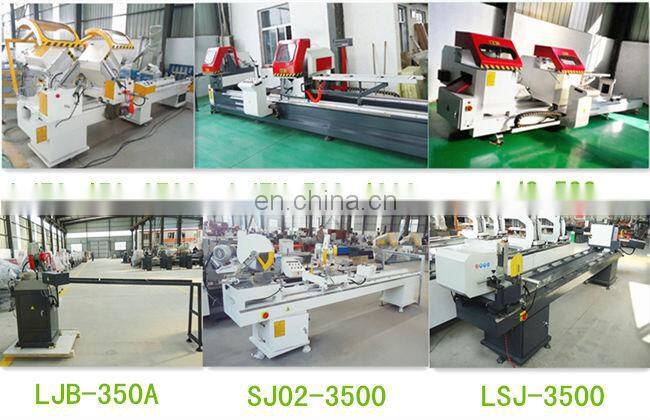

Cutting saw machines.Model:LJZ2-450x3700 and LJG-500 also can be installed with digital displayer.
mode:LJB-350A,SJ00-3500 and LSJ-3500 can cut aluminum thinkness under 2mm.

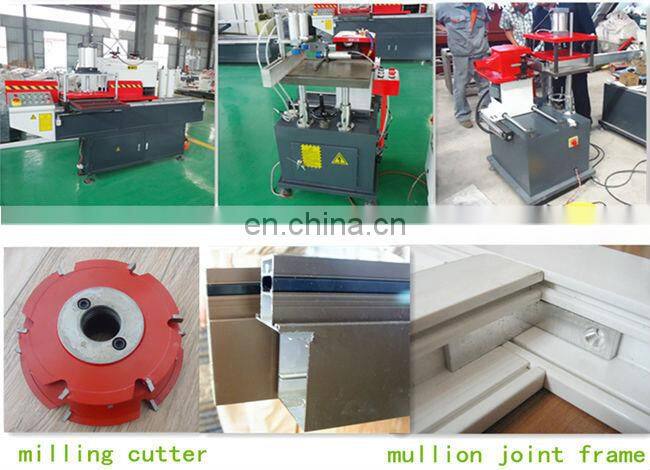

End milling machine(for mullion).Model:LXD-200 and LXDA-200 need special cutters according to profile.Model:LXD-250 cutters are universal.

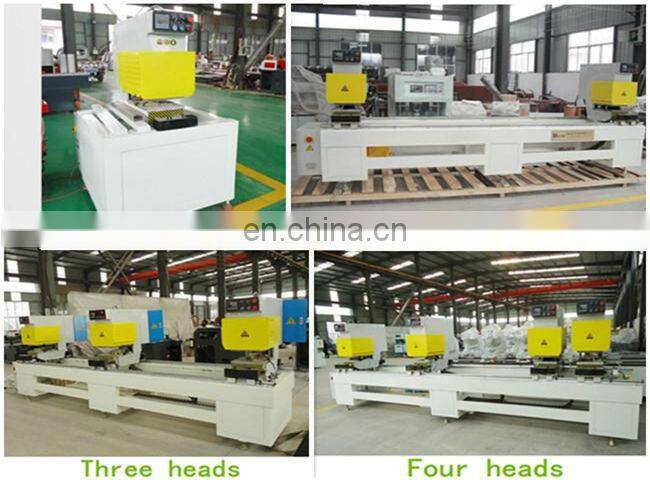

Seamless welding machine.If you use colourful profile,seamless welding machine is necessary.
Non-seamless welding machine

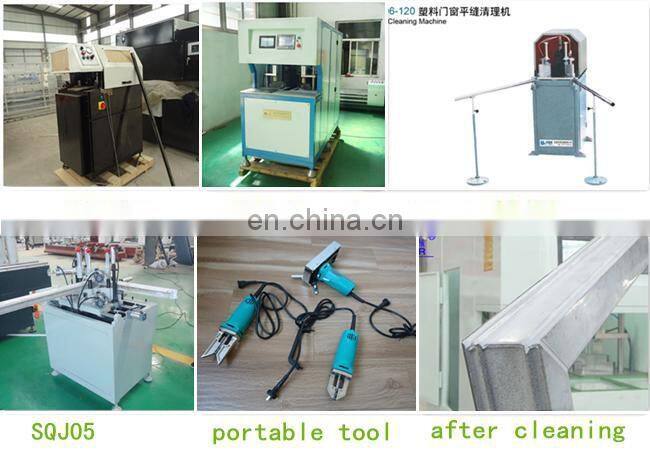

Corner cleaning machine.CNC corner cleaning machine,with three cutters---clean upper,lower and external seam.with five cutters---clean internal more.six cutters---all cleaning.

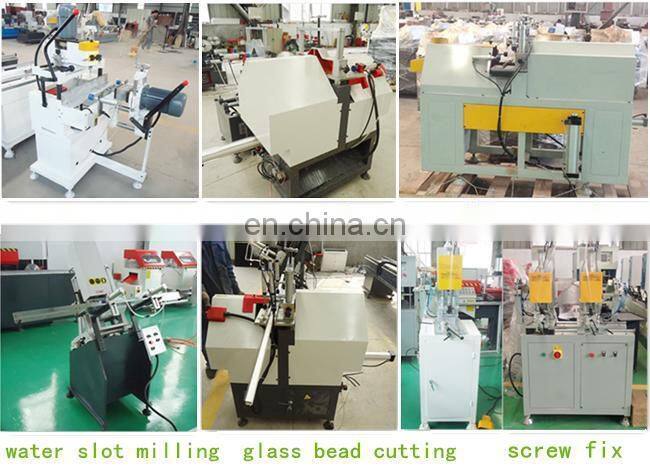

small machines:Loack hole milling machine,V notch cutting machine,mullion cutting machine,water slot milling machine,glazing beads cutting machine,steel reinforcement screw fix machine.
Arc window machine.If you want to make arched windows,this machine is necessary.
Certificates

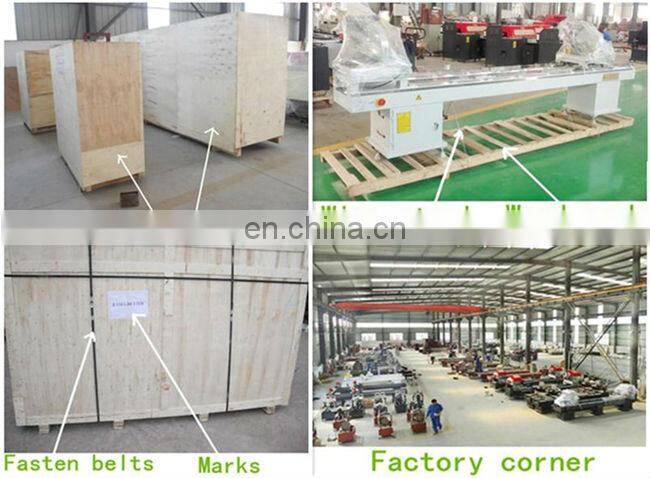

International standard ply wooden packing or as your required
Warranty and Guarantee.
The manufacturer warranty and guarantee period will be 24 months from the buyer’s full receipt of the goods at the
destination port. Any malfunctioned parts, those are not caused by the user,during this guarantee period will be for
the seller’s guarantee responsibility.The seller must send the part for replacement within 5 days after receiving
buyer’s report. If the buyer need, our engineer will fly to help to install machines,design workshop and train workers.
