Insulating Glass Washing Machine With Vertical Type

Insulating Glass Washing Machine With Vertical Type photo-1
Insulating Glass Washing Machine With Vertical Type photo-2
Insulating Glass Washing Machine With Vertical Type photo-3
Insulating Glass Washing Machine With Vertical Type photo-4
Insulating Glass Washing Machine With Vertical Type photo-5
Insulating Glass Washing Machine With Vertical Type photo-6
Insulating Glass Washing Machine With Vertical Type photo-7
US$ 4,500 - 17,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Truepro
Place of Origin:
Shandong, China
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Truepro
Place of Origin Shandong, China
Warranty 1 year
Weight 3000kg
Dimension(L*W*H) 8000*2100*3200mm
Production Capacity 100%
Condition New
Voltage 380V
Power(W) 19kw
Machine Type Glass Washing and Drying Machine
Product Description

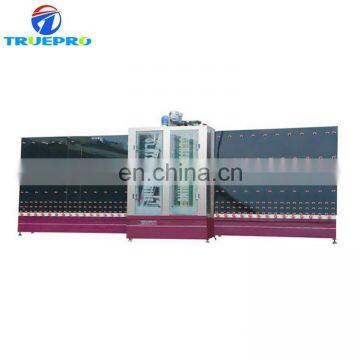

Insulating Glass Washing Machine with Vertical Type

Detailed Information


Main Feature:
1. Washing section and water system adopt complete stainless steel or rot proof materials.
2. It has 3 pairs of glass washing soft brushes for coated glass and LOW-E glass.
3. Drying section adopts rubber roller to scrape of the water,and use the hot wind to dry the glass.
4. The transmit system of washing machine adopts unlimited speed adjustment to realize high efficiency of application.

Main Technical Parameter:

Brand Name
TRUEPRO
Model
JY-2000
Power Supply
380V 50Hz
Power
19 kw
Work pressure
0.5-0.8MPa
Min. Cutting glass size
280*450mm
Max. Cutting glass size
2000*2500mm
Working direction
Left-Right
Pane glass thickness
3-18mm
Washing speed
0-8m/min
3Total Weight
3000kg
Boundary dimension
8000*2100*3200mm
Packing & Delivery
Company Overview
Cooperative Partner

Our service

Before payment

Free contact for the most suitable machine
Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.


FAQ


1.Q:Are you a manufacturer?
A: Yes,we have been in providing the professional products in this field for 10 years.

2.Ask:how to install the machine ?
A:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you to install it in your country .


3.Q :How you pack the products ?
A: Normally as the export standard packaging or as you required.

4.Q: What is your available port of shipment?
A:Qingdao port,shanghai,tianjin,guangzhou etc.

5.Q: Is customized available ?
A: Yes, according to your detailed drawings you provide

6.Q: Are you trading company or manufacturer ?
A: We are factory and welcome to visit us at any time.

7.Q: How long is your delivery time?
A: Generally single tanks need 15-30 days, for whole plant need 30-50days.

8.Q: Do you have CE and UL certification?
A: Yes.
