Jinan Insulating glass making machine /glass tempering machine
insulating glass machine Vertical Automatic Insulating Glass Machine Production Line glass machine production line
double glazing machine/ Insulating double glass machine/ double glazing glass machine
Features:
PLC control system with whole process, touch-sensitive screen and man-machine interface.
Realize the surface layer of coated glass and LOW-E glass automatically.
The cleaning machine and washer system adopt stainless steel and anticorrosion material with all parts and it has features of super durability.
It adapts to clean 3 to 12 thickness glass, transmission setup of cleaning and drying part is designed automatically.

Performance :

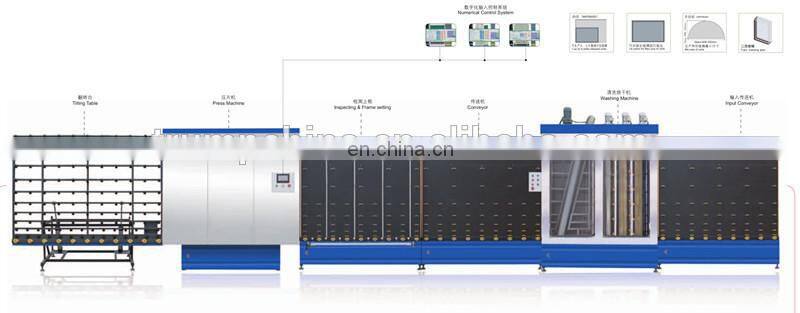

- The first part: Input Unit Realize the surface layer of coated glass and LOW-E glass with a sensor

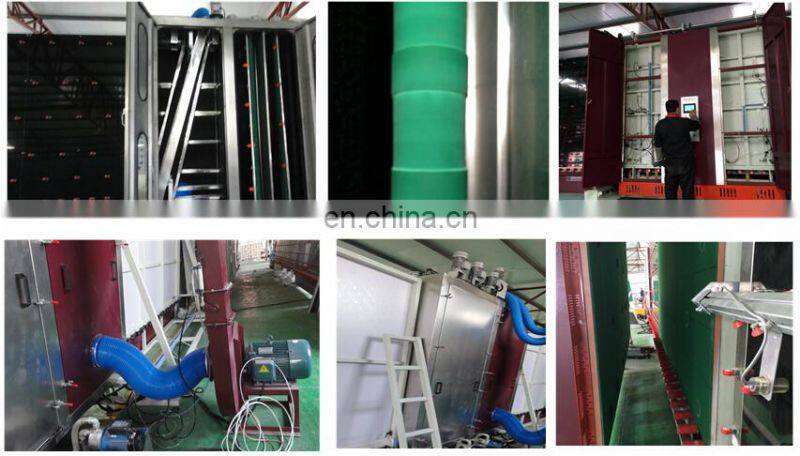

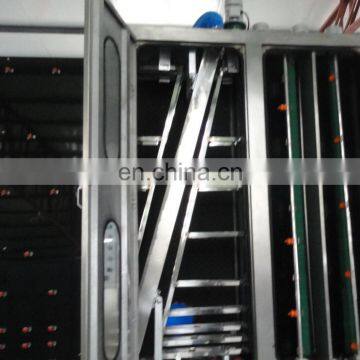

- Washing and Drying Unit stainless steel and anticorrosion material with all parts; Three pairs of brushes, entire rubber rollers;
- Cleaness Inspecting Unit Also outletting unit after glass washing and drying; With lighting tubes on this unit;
- Aluminum Spacer Assembly Unit used to load aluminum spacer bar; The first glass goes into the panes pressing unit first;.
- Panel Pressing Unit Press the two sheets of glass with spacer together;
- Tilting Table Glass sheet can be tilted to horizontal position, easy for transporting or unloading.
Processing details:
Parameter :
Equipment Model Parameter | JYN-1600 | JYN-1800 | JYN-2200 | JYN-2500A | |
Power supply (as customer choose) | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | |
Total power | 16.0Kw | 24.0KW | 26.KW | 28.0KW | |
Process Glass size | Max | 2000*1600mm | 2500*1800 | 3000*2200 | 3000*2500 |
| Min | 280*450mm | 280*450 | 280*450 | 280*450 |
| Glass thickness | 3-18mm | 3~25 | 3~25 | 3~25 |
Working speed | Washing speed | 3~9m/min | 3~9m/min | 3~9m/min | 3~9m/min |
| Conveying speed after washing | 15~45m/min | 15~45m/min | 15~45m/min | 15~45m/min |
Outline dimension | L×W×H (mm) | 13000*1300* 2600 | 19200*2400* 2900 | 19600×2500× 3380 | 19600×2500× 3680 |
Net weight | 4000KG | 5500KG | 6500KG | 7300kg | |

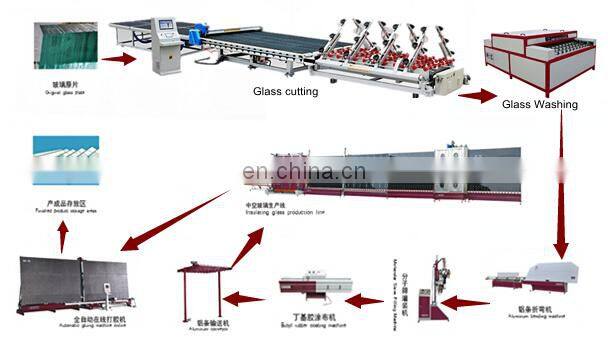

All the insulating glass making line
Our engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.
TRUMP INTERNATIONAL produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
Engineers available to service machinery oversea;
Oversea third-party support available;
OEM/ODM available.
Before sale:
♦ Free professional design for each customer especially.
After sale service :
♦ 24 hours technical support by phone, email or skype (email or skype) .
♦ 18 month warranty period
♦ Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment terms :
♦ 30% deposit by T/T,70%
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal


1. Question:Are you manufacture?
Answer:
Yes,we are the professional manufacture which have more than 5 workshops.
2.Question: About this Machine,What’s the guarantee ?
Answer:
1).Our guarantee for 16 months. 2).24 hour’s technical support by email or calling 3).English manual and video tutorial 4).We will provide the consumable parts at an agency price 5).24 hours on line service each day, free technical support.
3.Question:if our price is higher than another company or factories ?
Answer: please check, what is is the different of the machine of parts ,service and guarantee,especially the machine inner electric parts,
sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,
but we use the famous and reliable parts for the machines inside.
Kindly note:
These five basic machines just can be enough for a 20 foot container,if you want to know the freight charge, you can tell me your destination port name, then I can tell you the freight charge.
