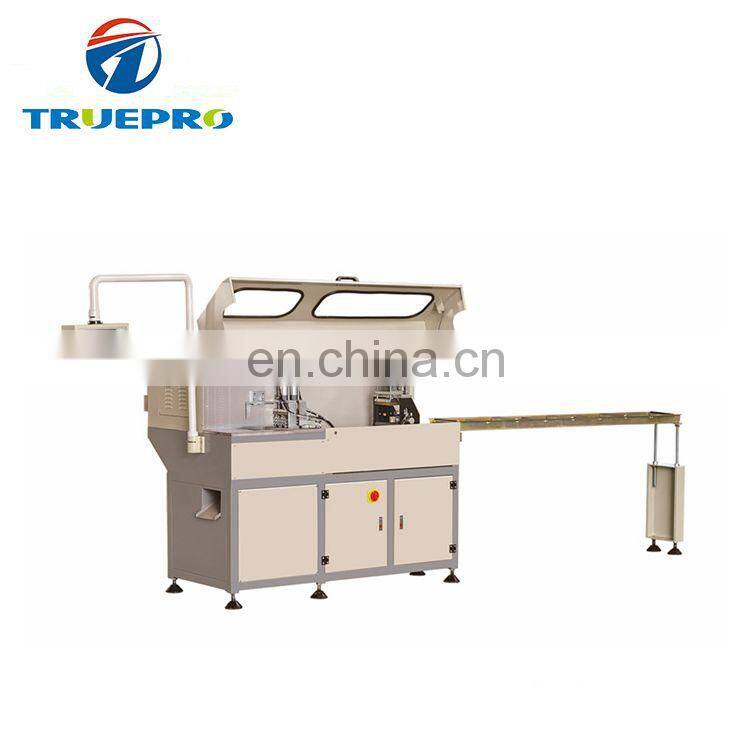

CNC Aluminum Profile Automatic Corner Cutting Machine

CNC Aluminum Profile Automatic Corner Cutting Machine photo-1
CNC Aluminum Profile Automatic Corner Cutting Machine photo-2
CNC Aluminum Profile Automatic Corner Cutting Machine photo-3
CNC Aluminum Profile Automatic Corner Cutting Machine photo-4
CNC Aluminum Profile Automatic Corner Cutting Machine photo-5
CNC Aluminum Profile Automatic Corner Cutting Machine photo-6
US$ 1,960 - 5,859 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TRUEPRO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name TRUEPRO

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine



Main Feature:

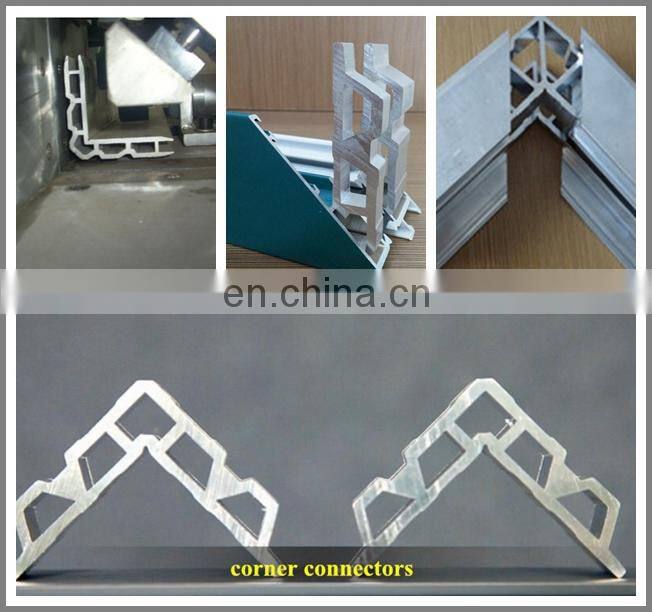

1.Used for aluminum corner connector cutting.
2.Only one time clamping,can achieve 6 meters corner section bar continuous cutting.
3.Feeding motion using linear motion bearing small movement resistance of high precision.
4.Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.

Main Technical Parameter:

Brand
TRUMPRO
Air Pressure
0.5~0.8MPa
Model
CLJJA-500
Motor Rotary Speed
2800r/min
Power Supply
380V 50Hz
Saw Blade Specification
Φ500*Φ30*4.4 Z=96
Cutting Motor Power
3KW
Feeding Length
5~700mm
Cutting Width*Height
140mm*140mm
Overall Dimension
5670*1770*1840
Blade feeding speed
0-3m/min
Weight
800KG



CNC  aluminum profile automatic corner cutting machine





CNC  aluminum profile automatic corner cutting machine

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

We have our own research and development personnel and team, innovation of science and technology. Also has a good technical personnel, there are a lot of experience in this industry.

CNC  aluminum profile automatic corner cutting machine

CNC  aluminum profile automatic corner cutting machine

1. When can we arrange shippment?

We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
