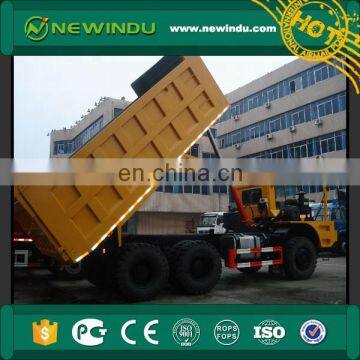

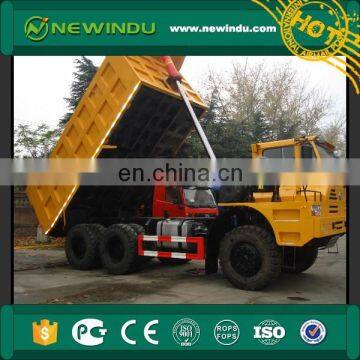

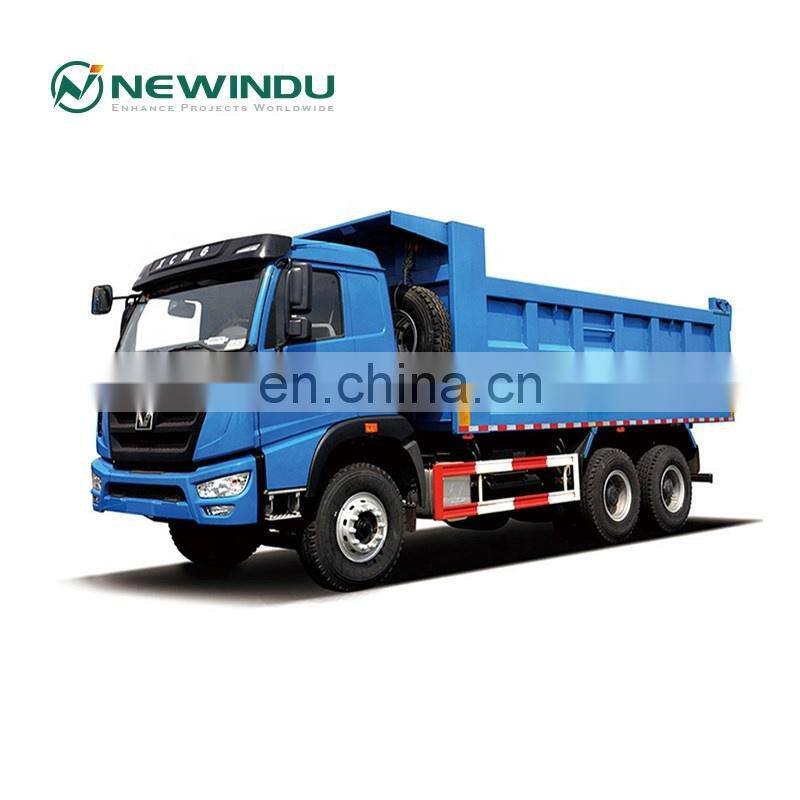

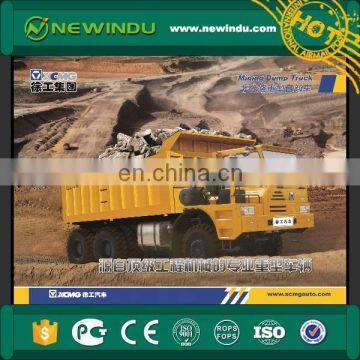

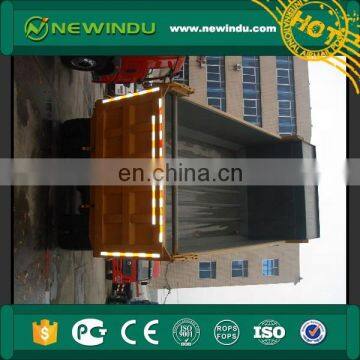

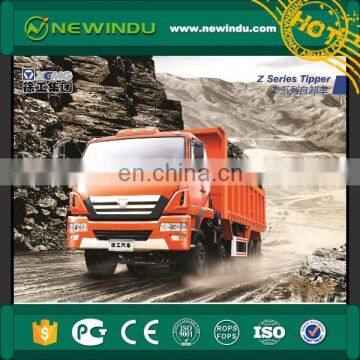

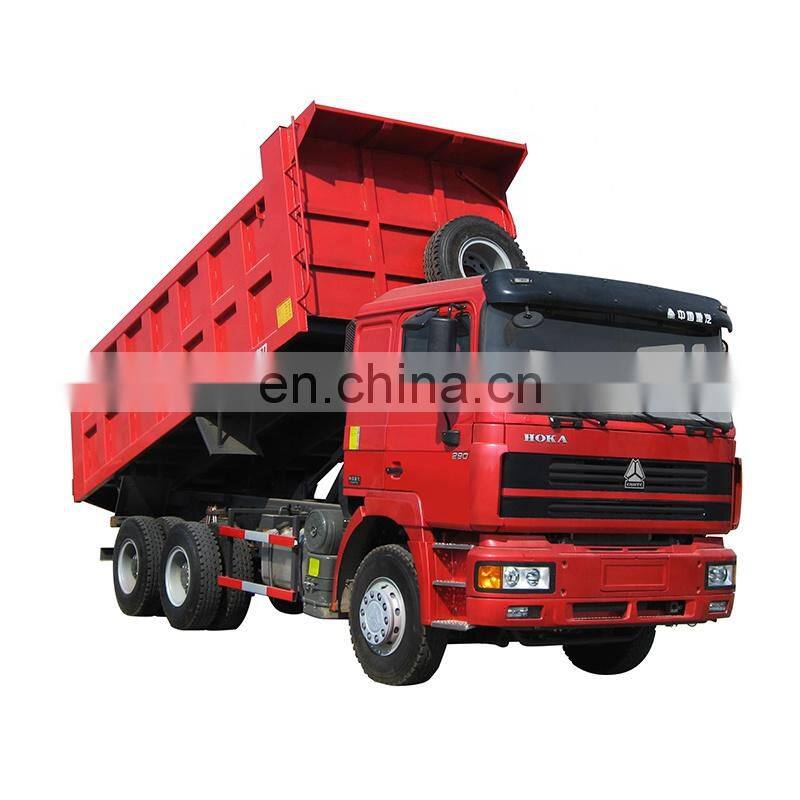

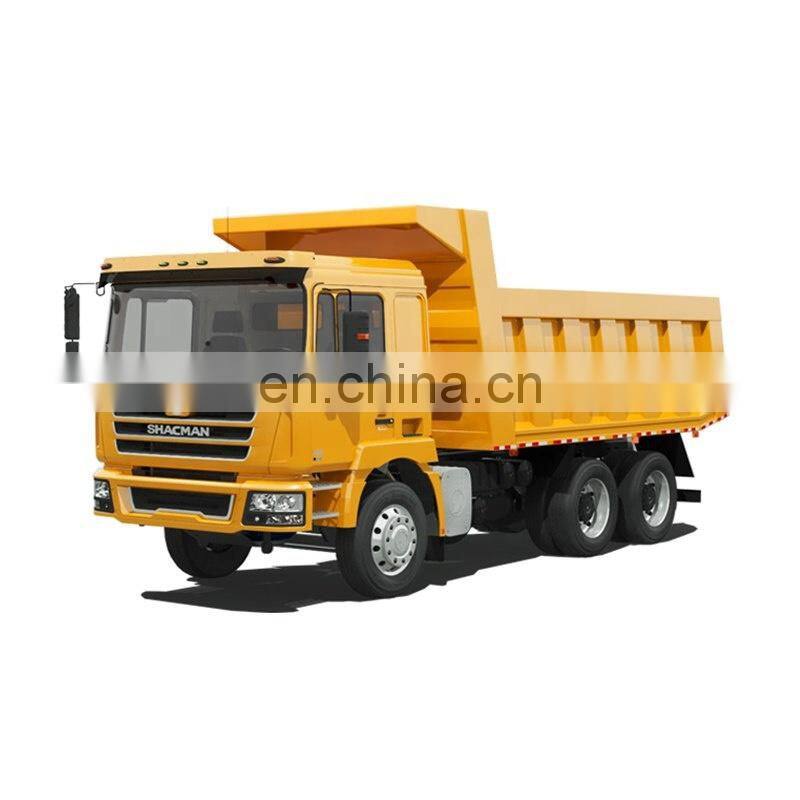

12 Wheels Tipper Truck 8X4 High Quality Dump Truck
- 1000 per Month
- T/T Credit Card
You May Like
-
Newindu Mining Use Heavy Duty Dump Truck Tipper
-
Dump Truck Mining Dump Truck for Sale from Stock
-
mining dump truck with factory supply price
-
Hot Price Sinotruk 70ton Heavy Duty Mining Dump Tipper Truck
-
SANY SR285RW10 Rotary Drilling Rig with Diamond Core Hammer
-
SANY 405 kN.m Rotary Drilling Rig SR405RC10 soil boring machine
Product Details
| Brand Name | Newindu | Place of Origin | Jiangsu, China |
Product Description
12 Wheels Tipper Truck 8X4 High Quality Dump Truck
Taylor Peng
Mobile / Whatsapp / Wechat: +8613971092326
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2806, Super Ocean Finance Center,
No. 2067 West Yan'an Road, Shanghai, China
Web:
1. The whole vehicle axle load distribution is resonable to meet the user needs.
2. Low gravity center , good discharge stability and vehicle moving.
3. Optimization of the structure of the hydraulic lifting system, high work efficiency, the strong lifting ability, the light overall weight, stable and reliable operation.
4. Mature cargo body, sub frame etc assembly technology, satisfying the user comprehensive and individual choice.
5. Unique integral shot line, ring painting line to ensure all products are arranged on overall sanding, painting, achieving finishing coat installation.
Chassis | Curb weight(kg) | 14770 | |
Wheelbase(mm) | 1850+2950+1350 | ||
Dimensions(mm) | 9950×2500×3450 | ||
Overhang (front/rear) (mm) | 1500/1850 | ||
Wheel track (front/rear) (mm) | 2040/2040/1860/1860 | ||
Approach/Departure angle(°) | 25/25 | ||
Axle Load(kg) | 6500/6500/18000 | ||
Max. driving speed(km/h) | 90 | ||
Model | DFL3310 | ||
Tire | Number | 12pcs with one spare tire | |
Specifications | 11.00R20 18PR,11.00-20 18PR, 12.00R20 18PR,12.00-20 18PR | ||
Clutch | Reinforced diaphragm clutch | ||
Passenger in cab | 3 | ||
Engine | Model | dCi350-40 | |
Displacement(ml) | 11120 | ||
Power(kw) | 257 | ||
Emission standard | Euro 4 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tipper | Max. Capacity(T) | 10t 15t 20t 25t 30t 35t | |
Box material | Q235 carbon steel | ||
Box size(L*W*H) | 7200×2300×1180 | ||
Thickness(Side panel and Baseplate) | On basis of the products you need transport | ||
