SANY 30m Concrete Pumps Truck for Sale
- Shanghai
- T/T Credit Card
You May Like
-
SANY 30Meter SYM5190THBDZ30 Truck Mounted Concrete Mixer Truck Pump
-
SANY SYG5530THB62 62M Concrete Pump Truck With SANY Chassis
-
China SANY SYG5418THB56 37m Concrete Pump Truck for Sale
-
SANY Small 30m Concrete Pump Mixer Truck for Sale
-
High Quality 10 Cbm Concrete Mixer Truck for Sale
-
New China Brand 8*4 Mixer Truck 15m3 Concrete Mixer Truck
Product Details
| Brand Name | SANY | Place of Origin | Hunan, China | |
| Certification | ISO9001 | |||
| Warranty | 1 Year | Weight | 19000kg | |
| Dimension(L*W*H) | 10650*2500*3700mm | Power Type | Diesel | |
| Condition | New |
Product Description

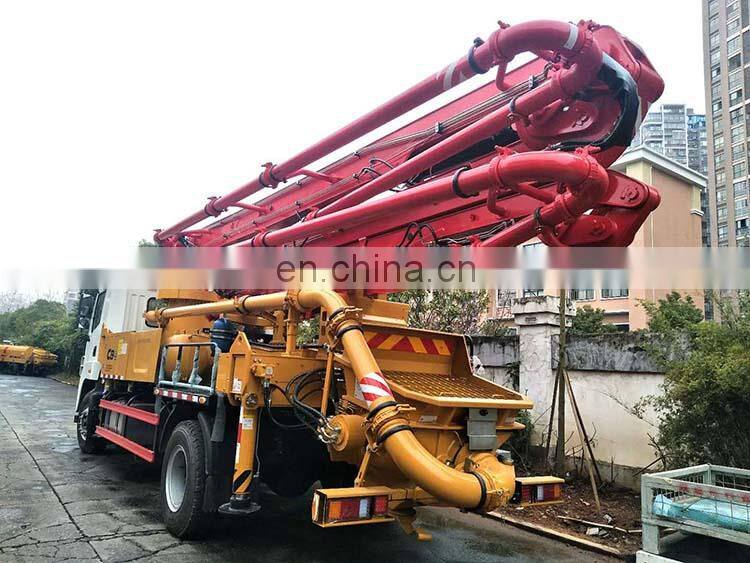

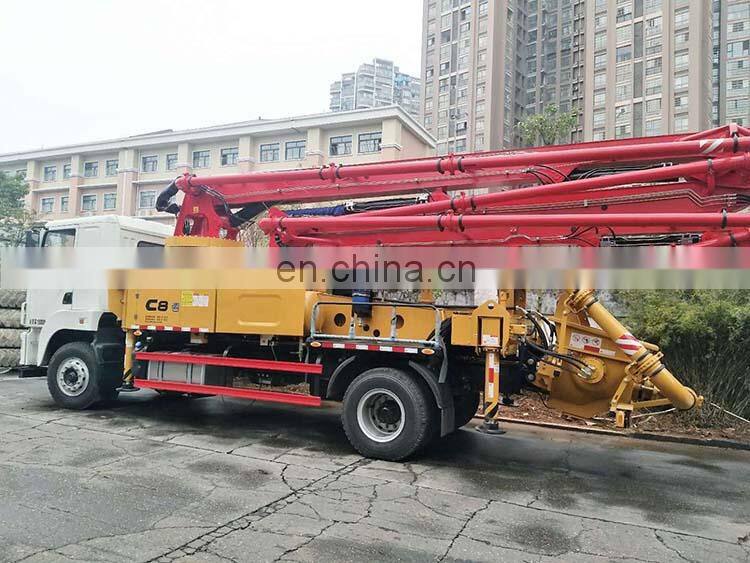

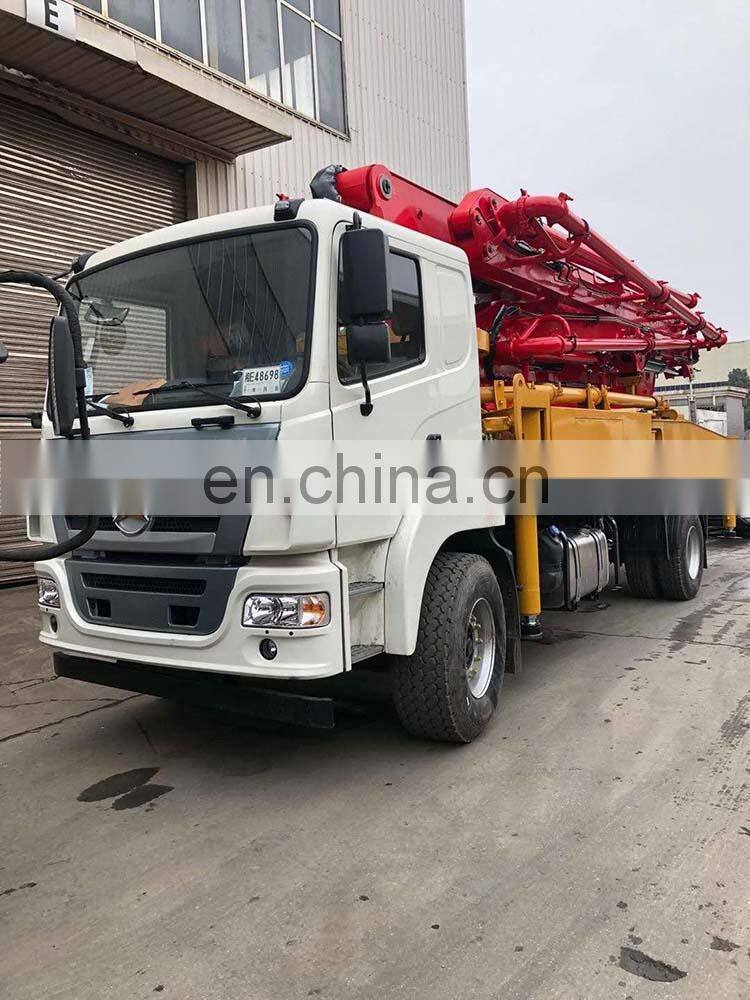

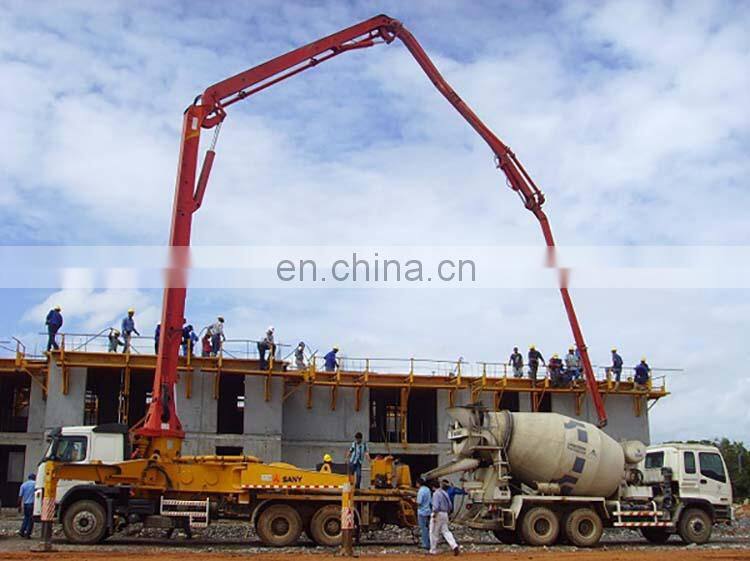

SANY 30m Concrete Pumps Truck for Sale
Aring Zhou
Email: aring at
Wechat/Mobile/Whatsapp:+86 15855426352
Skype: zyy1520724641 at outlook
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
| Model | SYM5190THBDZ30 | |
| Dimension | Length | 10650 mm |
| Width | 2500 mm | |
| Height | 3700 mm | |
| Empty Height | 19000kg | |
| Boom&Outrigger | Vertical reach | 30.1m |
| Horizontal reach | 26.5m | |
| Reach depth | 15.2m | |
| Untolding reach | 9.6m | |
| 1st section-Length | 7676m | |
| 1st section-Articulation | 89° | |
| 2nd section-Length | 6090m | |
| 2nd section-Articulation | 180° | |
| 3rd section-Length | 6100mm | |
| 3rd section-Articulation | 245° | |
| 4th section-Length | 6635mm | |
| 4th section-Articulation | 230° | |
| Rotation | ±360° | |
| Outrigger spread L-R Front | 5850mm | |
| Outrigger spread L-R-Rear | 5420mm | |
| Pumping System | Output(Low/High-pressure) | 120 m3/h |
| Pressure(Low/High-pressure) | 6 Mpa | |
| Max.stroke per minute(Low/High-pressure) | 30 times/min | |
| Delivery cylinder diameter | 230mm | |
| Stroke Length | 1600mm | |
| Hydraulic system | Open | |
| Hydraulic system pressure | 32Mpa | |
| Hydraulic tank capacity | 320L | |
| Water tank capacity | 400L | |
| Pipe size | 125mm | |
| End hose length | 3m | |
| End hose diameter | 125mm | |
| Chassis | Engine power | 176/2300 kw/ rpm |
| Fuel tank capacity | 300L | |
| Displacement | 6.87L | |
| Max.speed | 80km/h | |
| Brake distance | ≤10/30m km/h | |
