Liugong 180HP Motor Grader for Road Construction CLG418

FOB Price

US$ 40,856 - 40,856 / Unit

1 Unit(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newinbdu	Place of Origin	Jiangxi, China
Certification	ISO, CE
Weight	15500kg	Dimension(LWH)	890026253420
Condition	New	Reverse Speed(km/h)	23
Forward Speed(km/h)	33

Product Description

Liugong 180HP Motor Grader for Road Construction CLG418

Product Description

1.Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%
2.Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine
3.With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
4.Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.

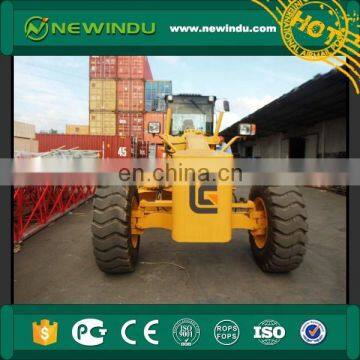

Photos for Reference

Technical Parameters

Basic specification
Engine model	6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LWH)	8015×2380×3050mm
Operating weight(Standard)	11200kg
Performance specification
Travelling speed ,forward	5,8,13,20,30,42km/h
Travelling speed ,reverse	5,13,30km/h
Tractive force(f=0.75)	61.3KN
Max. grade ability	30%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
Frame articulation angle	±27°
Min. turning radius using articulation	6.6m
Blade
Maximum lift above ground	410mm
Maximum depth of cutting	515mm
Maximum blade position angle	90°
Blade cutting angle	54°-90°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm
