GR215 Motor Grader Grading Machine Road Construction Equipment With 215hp

FOB Price

US$ 85,000 - 85,000

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newinbdu	Place of Origin	Jiangsu, China
Certification	ISO, CE
Dimension(LWH)	897026253470mm	Condition	New
Reverse Speed(km/h)	23	Forward Speed(km/h)	38

Product Description

GR215 Motor Grader Grading Machine Road Construction Equipment with 215hp

Product Description

215HP Oriemac Brand New Motor Grader GR215 with Cumins engine

1)New appearance.
2)The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
3)Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
4)The adopted international matched hydraulic parts ensure the reliable operation.
5)The blade movement is hydraulic controlled fully.
6)The rear axle is three-way drive axle with NO-SPIN self -locking differential.
7)The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
8)The luxury and beautiful cab features wide visibility and good sealing.
9)The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.

Technical Parameters

Basic specification
Engine model	6CTAA8.3/6CTA8.3
Rated power/speed	153kW/2200rpm 160kW/2200rpm
Dimension(LWH)	8970×2625×3470mm
Operating weight(Standard)	16500kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	90KN
Max. Grade ability	30%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm

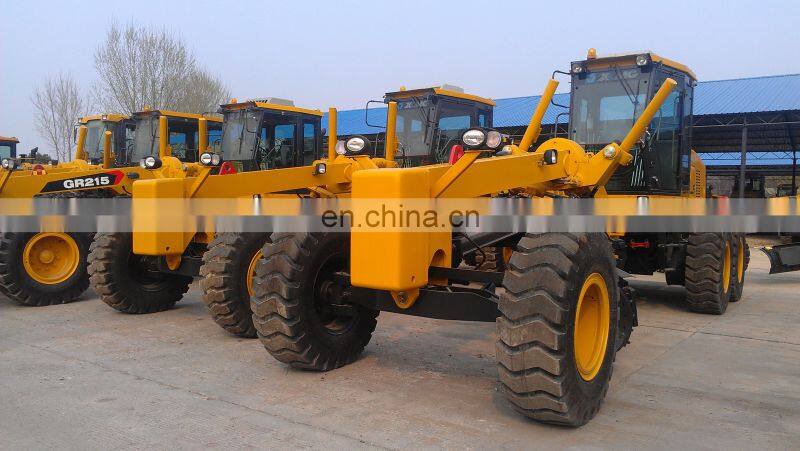

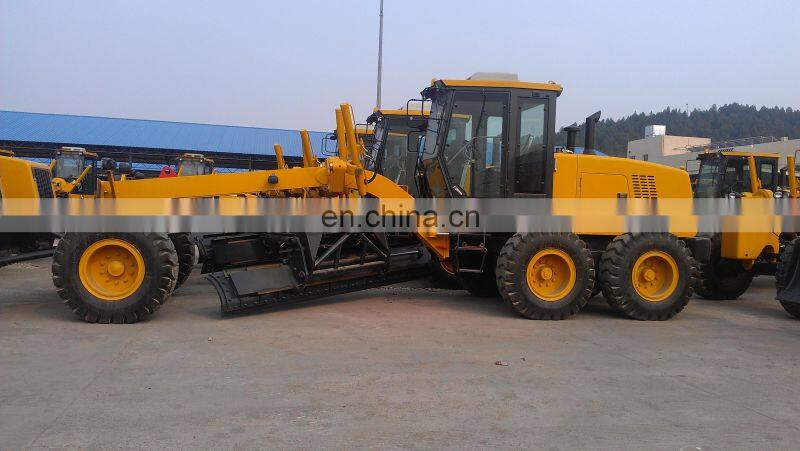

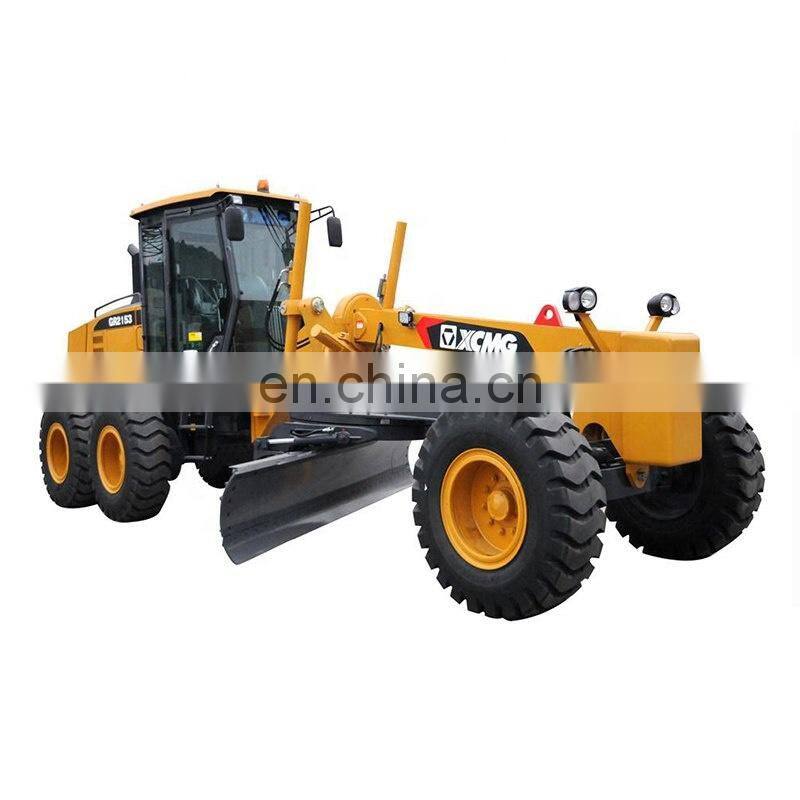

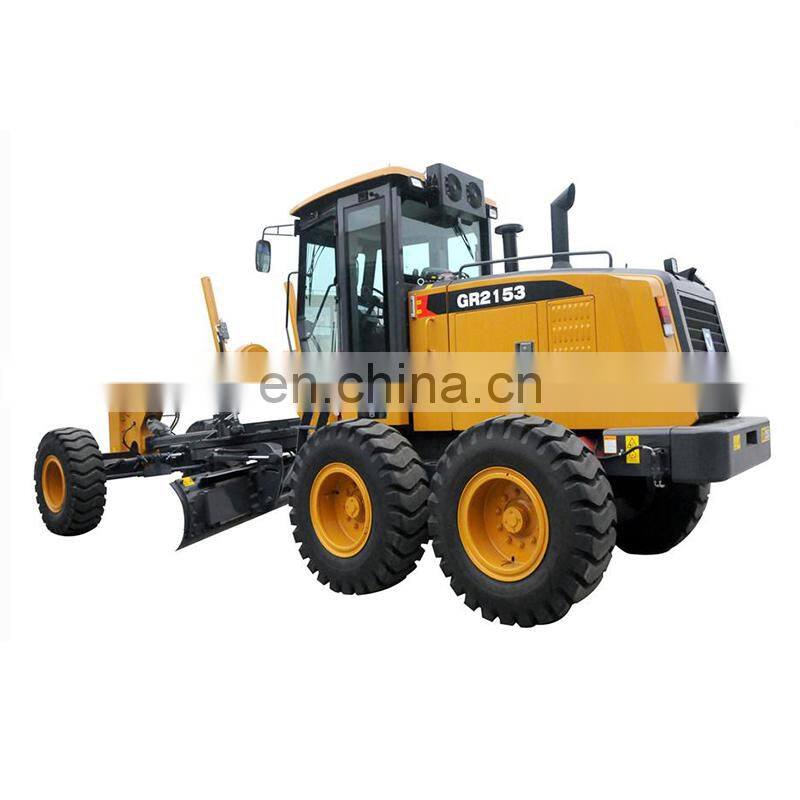

Photos for Reference
