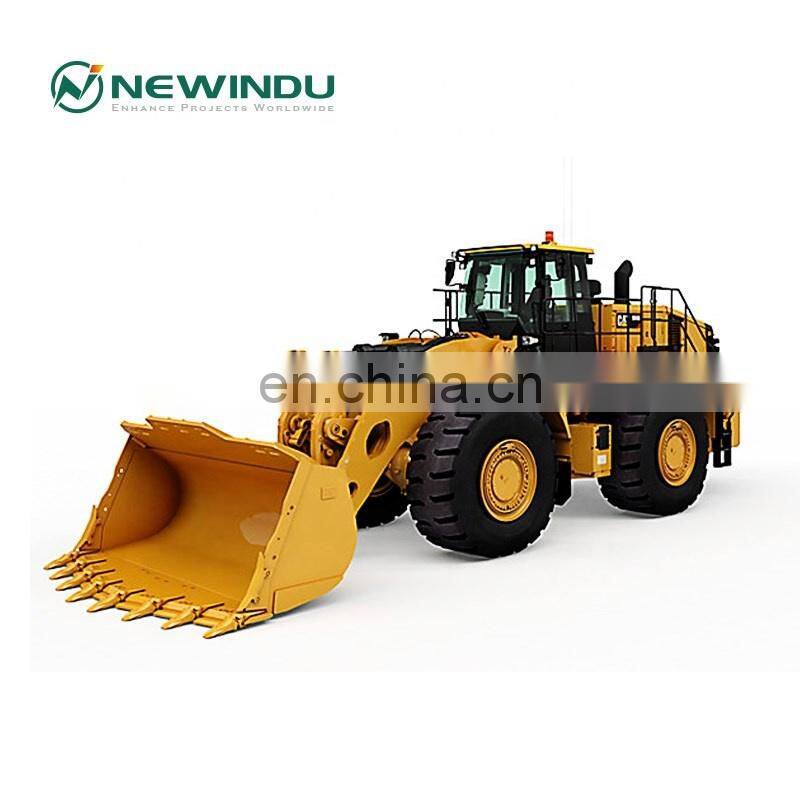

Loading Machine 993K-1 Heavy Equipment Wheel Loader

FOB Price

US$ 76,735 - 76,735 / Unit

1 Unit(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Newindu	Place of Origin	Shanghai, China
Type	Front Loader	Certification	ISO
Warranty	1 Year
Dimension(Long * Breadth * High)	708536632290mm

Product Description

Loading Machine 993K-1 Heavy Equipment Wheel Loader

Product Description

993K-1 loader is a medium and high power, high efficiency and energy saving loader product developed by using the latest technology and modern design method. The whole machine adopts hydraulic transmission and control technology. Its structure is advanced and reasonable, and its quality is reliable. The pilot hydraulic control makes the operation more portable and can greatly reduce the driver's labor intensity. Moderate wheelbase and high loading and unloading height are especially suitable for heavy-duty working conditions such as mine, earthwork construction and so on. With the options of installing mine special tire and vacuum tire: anti-puncture, wear resistance, adhesion, making it more suitable for mining and other harsh environment operation.

Technical Parameters

Item	Parameters	Unit
Rated operating load	6540	kg
Bucket capacity	2.7-4.0	m³
Machine weight	17100	kg
Max.Torque	1000	N·m
Dumping Height at 45° Discharge	3118	mm
Dumping Reach at 45° Discharge	1140	mm
Tipping Load, Articulated at 40°	10700	kg
Tipping Load, Straight	12600	kg
Wheel base	3200	mm
Max. Speed	40	Km/h
Total hydraulic cycle time	10.5	s
Max. SAE	175	kN
Tractive force	167	kN
Min. turning radius	5850	mm
Articulation angle	40	°
Overall machine dimension L×W×H	801628253501	mm
Model	QSL8.9-C220-Ⅲ
Rated Power/Speed	164/2000	Kw/rpm
Emission Standard	Tier 3
Fuel Tank	300	L
Hyd Tank	220	L
Drive Axle Oil (Front/Rear)	26.2/26.2	L
Engine Coolant	45	L

Photos for Reference
