X CMG Excavator Crawler XE150D With High Efficiency 15ton Operating Weight

FOB Price

US$ 30,000 - 49,000 / Unit

1 Unit(Min. Order)

Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Changlin, Newindu	Place of Origin	China
Certification	ISO
Warranty	1 Year
Condition	New	Dimension(Long * Breadth * High)	780125902880mm

Product Description

X CMG Excavator Crawler XE150D with High Efficiency 15ton Operating Weight

Contact Way

Taylor Peng
Mobile / Whatsapp / Wechat: +8613971092326
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2806, Super Ocean Finance Center,
No. 2067 West Yan'an Road, Shanghai, China
Web:

Product Description

The XE150D hydraulic excavator subject to full hydraulic drive has been widely used throughout China and exported to more than twenty countries and regions in the world by virtue of its high working efficiency like medium-sized excavators and such characteristics of less fuel consumption and higher flexibility for small-sized excavators, with the sales leading its peers domestically for three consecutive years.

Its working mechanism has a high-strength structure, able to meet the demands of all kinds of earthwork engineering if working together with a reinforced bucket; the reinforced four wheels and tracks can have its service life far longer than its major competitors, and moreover, its high-power driving motor can work freely in a variety of sites; the latest hydraulic components and electromechanical integration control technology can make full use of the engine power and save every drop of fuel to create more value for customers; all kinds of points for daily maintenance and service can be accessible easily on the ground, which can further facilitate the maintenance operation.

Technical Parameters

Model		Unit		XE150D
Operating weight		kg		14400
Standard bucket capacity		m³		0.52-0.61
Engine
	Direct injection	/		√
	Four strokes	/		√
	Water cooling	/		√
	Turbo charged	/		√
	Air to air intercooler	/		√
	No. of cylinders	/		4
	Rated power/speed	kw/rpm		85.4/2200
	Max. torque/speed	N.m		447/1500
	Displacement	L		3.927
The main performance	Travel speed	km/h		5.2/3.4
	Swing speed	r/min		12.3
	Max. gradeability	/		≥35
	Ground pressure	kPa		38
	Max.Bucket digging force	kN		85
	Max.arm crowd force	kN		65
	Max.traction force		kN	135

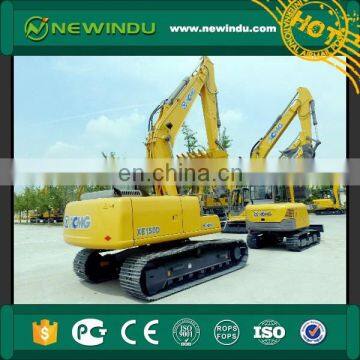

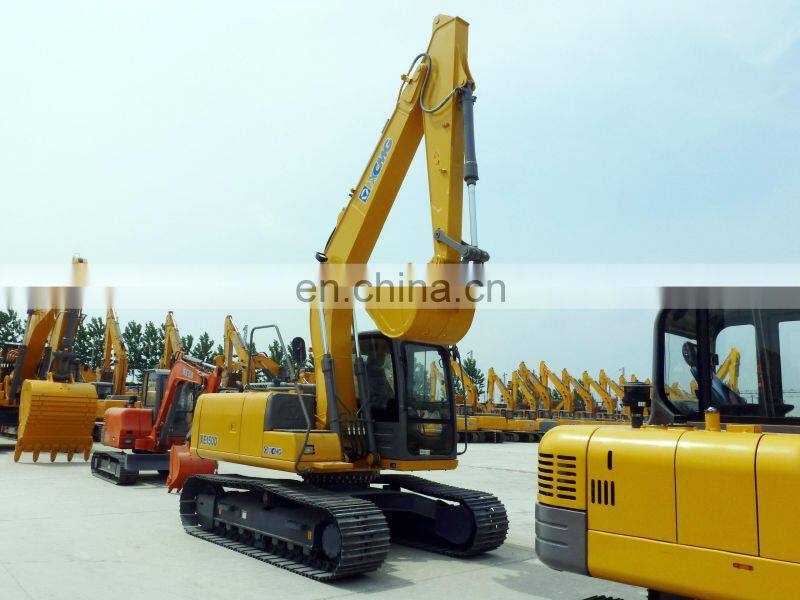

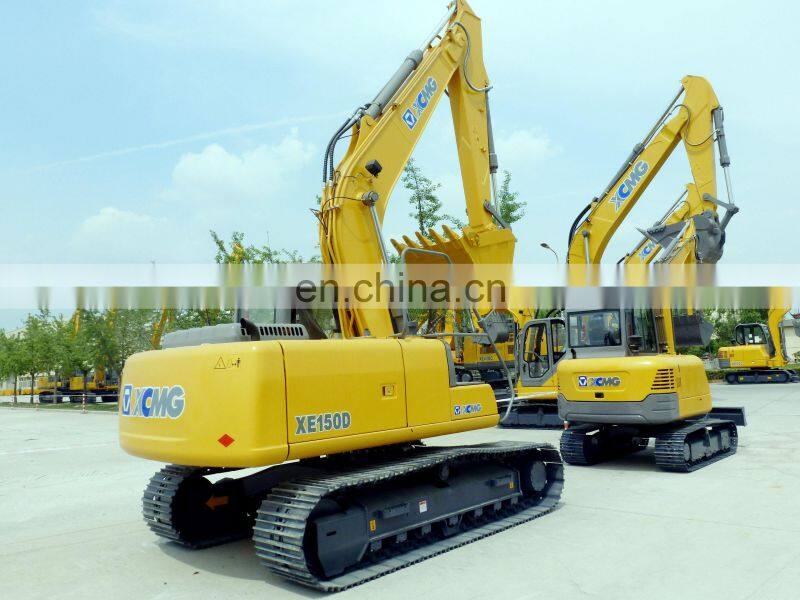

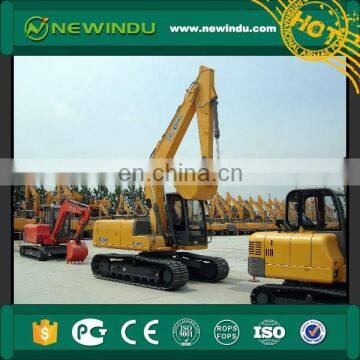

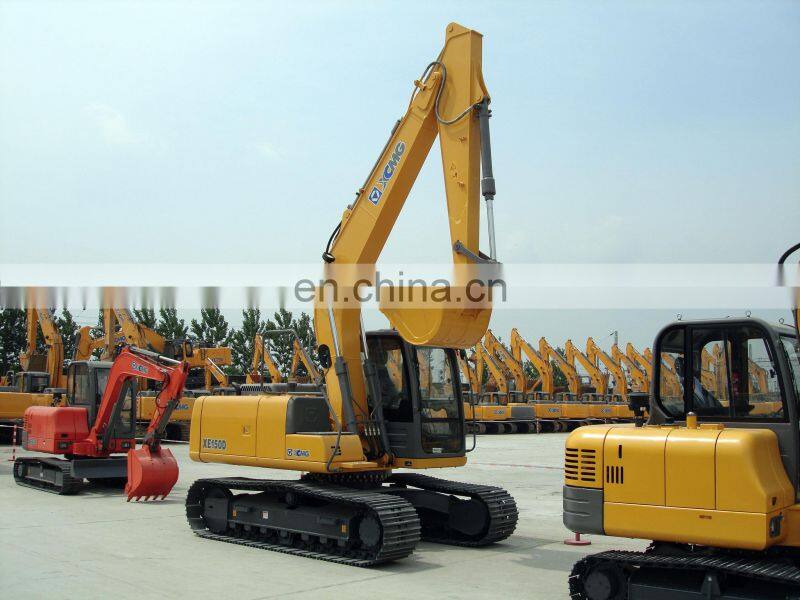

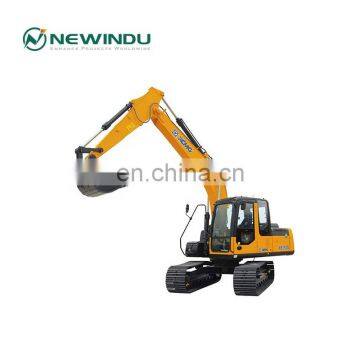

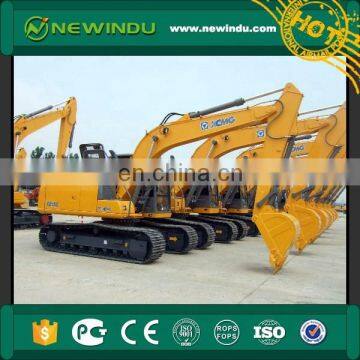

Photos for Reference
