Truck Crane 16 Ton QY16D

Name: Truck Crane 16 Ton QY16D
Brand: Newindu
Availability: InStock

FOB Price

US$ 12,000 - 30,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

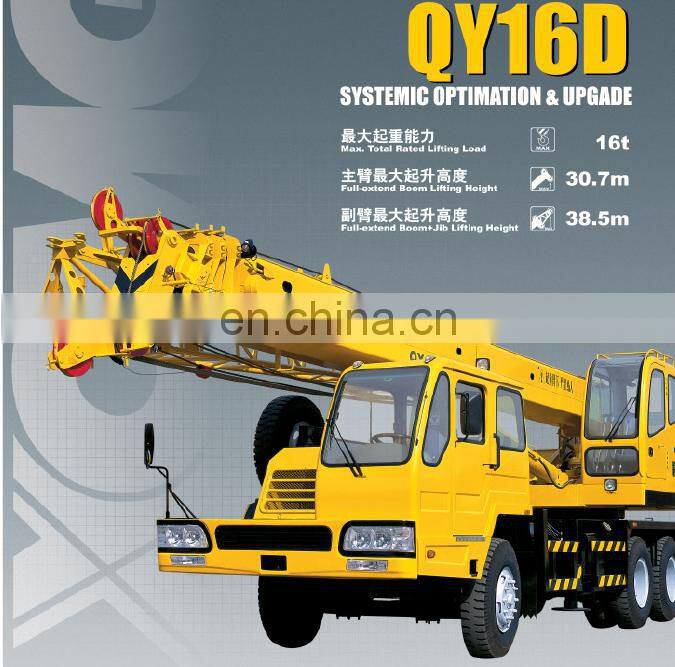

truck crane 16 Ton QY16D

Features

Overall length: 11990mm
Overall width: ≤2500mm
Overall height: 3350mm

Please Contact

Aring Zhou

Email: aring @newindu.com

Wechat/Whatsapp/Mobile: +86 15855426352

Skype: zyy1520724641 @outlook.com

Main Parameters

Parameters

Classificatory	Item		Unit	Parameter
Engine	Model			D6114ZLQ5B
Outline dimension	Overall length		mm	11990
	Overall width		mm	≤2500
	Overall height		mm	3350
	Wheel base	Axle 1, Axle 2	mm	4025
	Wheel base	Axle 2, Axle 3	mm	1350
Mass	Total mass in travel state		kg	24000
	Axle load	Axle 1	kg	6400
	Axle load	Axle 2	kg	17600
Travel performance	Travel speed	Max. travel speed	km/h	≥70
	Travel speed	Min. stable travel speed	km/h	3~4
	Turning diameter	Min. turning diameter	m	≤20
	Turning diameter	Min. turning diameter at boom tip	m	≤23
	Min. ground clearance		mm	270
	Approach angle		(°)	21
	Departure angle		(°)	10
	Braking distance (at 30km/h with full load)		m	9.5
	Max. grade-ability		%	24
	Fuel consumption for 100km		L	35

Main Technical Data for Lifting Operation

Classificatory	Item				Unit	Parameter
Lifting performance	Max. total rated lifting capacity				t	16
	Min. rated working radius				m	3
	Turning radius at turntable tail				m	≤3.12
	Max. load moment	Base boom			kN.m	686
		Fully extended boom			kN.m	388
		Fully extended boom + Jib			kN.m	254
	Outrigger span	Longitudinal			m	4.6
	Outrigger span	Lateral			m	5.4
	Lifting height	Base boom			m	≥9.9
		Fully extended boom			m	≥30.7
		Fully extended boom + Jib			m	≥38.5
Working speed	Boom raising time				s	≤60
	Boom full extension time				s	≤95
	Max. swing speed				r/min	≥2.5
	Hoist speed		Main winch	Full load	m/min	≥54
	(single line)		Main winch	No load	m/min	≥100
			Aux. winch	Full load	m/min	≥54
			Aux. winch	No load	m/min	≥100
Noise limit	Crane exterior noise				dB (A)	≤118
Noise limit	At seated position				dB (A)	≤90
