New Condition 40Ton Rough Terrain Crane From Good Supplier
- Shanghai/Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | Newindu | Place of Origin | Jiangsu, China | |
| Certification | CE/ISO9001 | |||
| Warranty | 1 Year | Application | Construction | |
| Condition | New | Span | 2250~10000m | |
| Rated Lifting Moment | 1445kN.m | Rated Loading Capacity | 40ton | |
| Max. Lifting Height | 45.1m |
Product Description

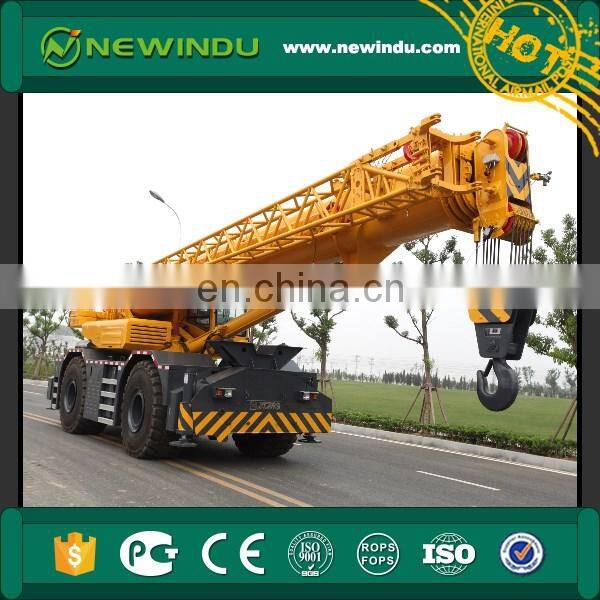

New Condition 40Ton Rough Terrain Crane from Good Supplier
Aring Zhou
Email: aring @newindu.com
Wechat/Whatsapp/Mobile: +86 15855426352
Skype: zyy1520724641 @outlook.com
| Category | Item | Parameter | Allowance | ||
| Dimension | Overall length | mm | 11952 | ±1% | |
| Overall width | mm | 2980 | -1%~0 | ||
| Overall height | mm | 3450 | -1%~0 | ||
| Wheel base | mm | 3700 | ±1% | ||
| Track (front/rear) | mm | 2440 | ±1% | ||
| Front/rear overhang | mm | 1900/2151 | ±1% | ||
| Front/rear extension | mm | 4201/0 | ±1% | ||
| Weight | Kerb mass | kg | 30300 | ±3% | |
| Axle load | 1st Axle | kg | 15100 | ±3% | |
| 2nd Axle | kg | 15200 | ±3% | ||
| Travel | Max. travel speed | km/h | 25 | ≥ | |
| Min. turning radius | m | 5.7 (4 wheels), 9.6 (2 wheels) | ±3% | ||
| Min. ground clearance | mm | 400 | ±1% | ||
| Approach angle | ° | 23 | ±1° | ||
| Departure angle | ° | 20 | ±1° | ||
| Braking distance (at 24 km/h) | m | 9 | ≤ | ||
| Max. grade-ability | % | 55 | ≥ | ||
| Power | Engine model | QSB6.7-C190 | / | ||
| Rated engine power | kW | 142 | / | ||
| Engine rated rotation speed | r/min | 2200 | / | ||
| Engine emission standard | off-road EU Stage IIIA | / | |||
| Driving type | 4×2, 4×4 | / | |||
| Tire specifications | 20.5R25 | / | |||
| Number of tires | 4 | / | |||
RT40E is a type of high property price ratio rough-terrain crane specially for the European market. RT40E is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.
