Home > Manufacturing & Processing Machinery > Crane > Truck Crane > ZOOMLION 110T Crawler Crane ZCC1100H
US$ 200,000 - 400,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SANY
Place of Origin:
Hunan, China
Certification:
ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZOOMLION Efficiency 30T Truck Crane QY30V532.9 for SaleUS$ 10,000 - 150,000MOQ: 1 Unit -
ZOOMLION Truck Crane 55ton QY55D531.2RUS$ 10,000 - 150,000MOQ: 1 Unit
-
ZOOMLION Brand 70T QY70V532 Truck CraneUS$ 10,000 - 150,000MOQ: 1 Unit
-
SANY 25ton STC250H Truck Crane for Best Sale in AlgeriaUS$ 10,000 - 150,000MOQ: 1 Unit
-
SANY 30ton Pickup Mobile Truck Crane STC300SUS$ 10,000 - 150,000MOQ: 1 Unit
Brand Name
SANY
Place of Origin
Hunan, China
Certification
ISO
Warranty
1 Year
Application
Construction
Condition
New
Span
2500mm
Rated Lifting Moment
235N.m
Rated Loading Capacity
110ton
Max. Lifting Height
67m

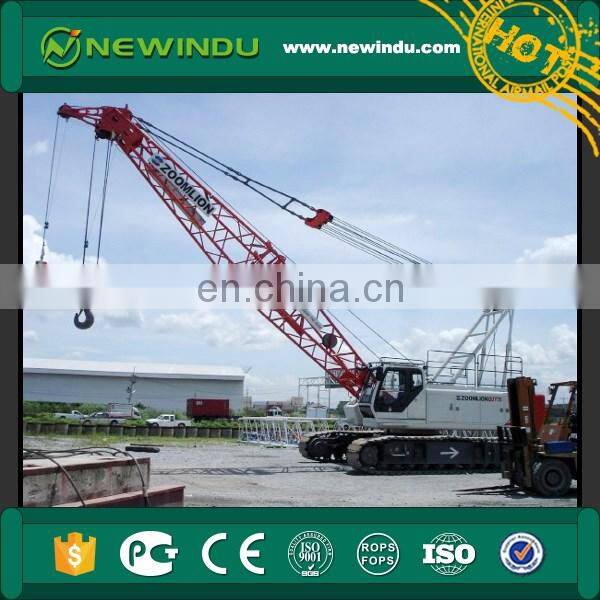

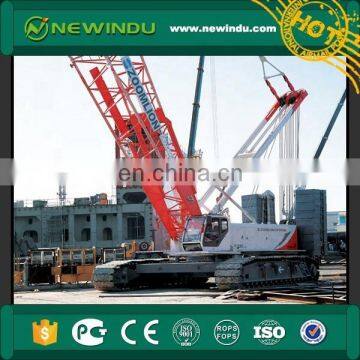

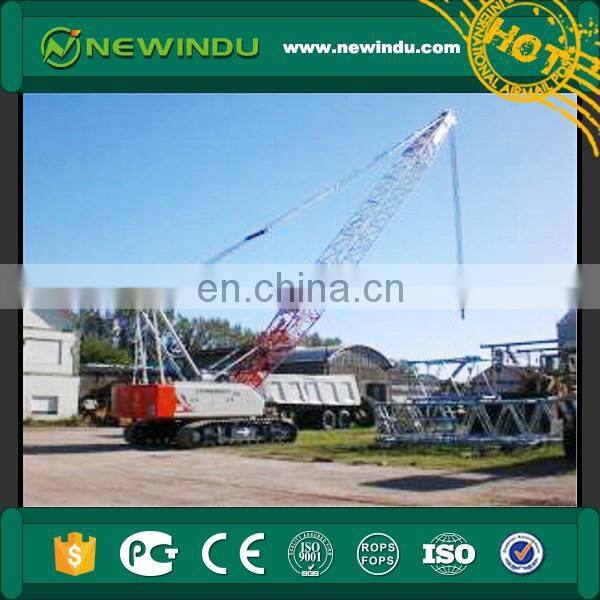

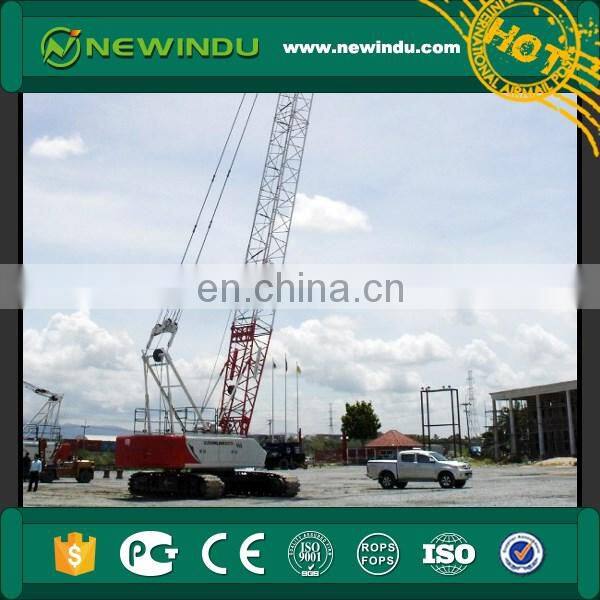

ZOOMLION 110T crawler crane ZCC1100H
Product Description
| Item | Unit | Value | Remarks | ||
|---|---|---|---|---|---|
| Max. lifting capacity / radius | US Tons/ft(mt/m) | 110/10’6”(100/3.2) | |||
| Max. lifting capacity of fixed jib | US Tons (mt) | 8.8(8) | |||
| Main boom length | ft(m) | 42’8”-219’10”(13-67) | |||
| Fixed jib length | ft(m) | 180’5”+59’(55+18) | |||
| Main boom angle | . | 30-82.5 | |||
| Fixed jib angle | . | 10,30 | |||
| Rope speed of hoisting winches 1 and 2 | With free-fall function | ft/min(m/min) | 325(99) | On the 4th rope layer | |
| Without free-fall function | ft/min(m/min) | 393(120) | On the 4th rope layer | ||
| Single rope speed of derricking winch | ft/min(m/min) | 190(58) | On the 4th rope layer | ||
| Max./rated single rope force of hoisting winches 1 and 2 | With free-fall function | Lbs(mt) | 44100/29988(20/13.6) | With optional free-fall function | |
| Without free-fall function | Lbs(mt) | 31311/27342(14.2/12.4) | On the 1st rope layer | ||
| On the 1st rope layer | |||||
| Max.single rope force of derricking winch | Lbs(mt) | 15656(7.1) | On the 1st rope layer | ||
| Slewing speed | r/min | 0-2.3 | |||
| Traveling speed(high/low speed) | mph(km/h) | 0.78/0.31(1.25/0.5) | |||
| Gradeability | %(°) | 30%(16.7° | |||
| Max.transport weight of basic machine | Lbs(mt) | 99887(45.3) | |||
| Deadweight(with basic boom) | Lbs(mt) | 189630(86) | |||
| Counterweight | Lbs(mt) | 61740(28) | Rear counterweight | ||
| 22050(10) | Central counterweight | ||||
| Slewing radius | ft(m) | 15’5”(4.7) | |||
| Overall dimensions(L × W × H) | m | 45’3”×11’2”×11’(13.8×3.4×3.35) | |||
| Ground clearance of the undercarriage | ft(mm) | 17”(437) | |||
| Engine | Type | QSL9-280 | |||
| Rated power | HP@RPM(Kw@RPM) | 280@2100(209@2100) | |||
| Max. output torque | Lbs?ft@RPM(N?m@RPM) | 1050@1500(1424@1500) | |||
| Exhaust standard | According to U.S.EPA Tier 3 | ||||
| Distance between track center×crawler contact length×crawler width | ft(m) | 8’2”×17’10”×2’7”(2.5×5.44×0.8) | Crawler carrier retracted | ||
| 13’9”×17’10”×2’7”(4.2×5.44×0.8) | |||||
Production Flow
