Geological Core Drilling Machine 600m Used for Sale
- Qingdao/Tianjin/Shanghai/Guangzhou/Wuxi
- T/T Credit Card
You May Like
-
Tractor Borehole Driller
-
China Mining Core Drilling Machine for Soil Test
-
Medium Pressure Long Hole Hydraulic Mine Well Drilling Rig
-
Engineering and Water Well Drilling Rig Manufacturers for Sale
-
Core Hydraulic Drill Rig for Water Well
-
Coal Mine Investigation Drill Rig Manufactures for Fluorspar Ore
Product Details
| Brand Name | YT | Place of Origin | Henan, China | |
| Model Number | YT200 | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 3600kg | |
| Dimension(L*W*H) | 3.8mx2mx2.7m | Voltage | 380V | |
| Condition | New | Power(W) | 15KW | |
| CNC or Not | Normal | Drilling Speed | 7M/HOUR |
Product Description
Product Application
Drill for Water well, Geological exploration/investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.
Main Features
1.Drills up to 200m deep, 75-300mm diameter ,Crawler mounted.
2. Hydraulic system, the mast can be raised up and put down automatically.
3. Hydraulic legs. can lift the machine 1.3m over the ground.
4. Bw 160 mud pump, 160L/Min displacement.
3. Drill on soil, sand, gravel, thickhard rocks, marble, Quartz, and any other hard ground, etc.
4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock.
5. It is a full set of machine with all 200m accessory can be used upon arrival.
Machine Parts
Name: Diesel engine
Brand: changchai
Original: China
Domestic famous engines, strong driving force, low fuel consumption, 14.7KW
Main Features
Name: BW160 Mud pump
Brand: YT
Original:China
Flow: 160L/min
Max pressure: 2MPa
Times/min: 93
Inlet hose dia:51mm
Outlet hose dia: 38mm
Machine Parts
Name: Hydraulic chuck, Hydraulic mast, Hydraulic leg
Brand: YOTOL
Original: Germany
Hydraulic mast: 6.5m, 18T lifting capacity.
Hydraulic leg: 2.5M
Alloy bit: for sand, soil drilling
Diamond bit: rock, hard rock, quarry, marble , gold ground drilling
3 wing bit: Hole opening drilling
Hydraulic drill mast
Automatic hydraulic mast, easily operated.
6.5m in height
18T loading capacity
Main Features

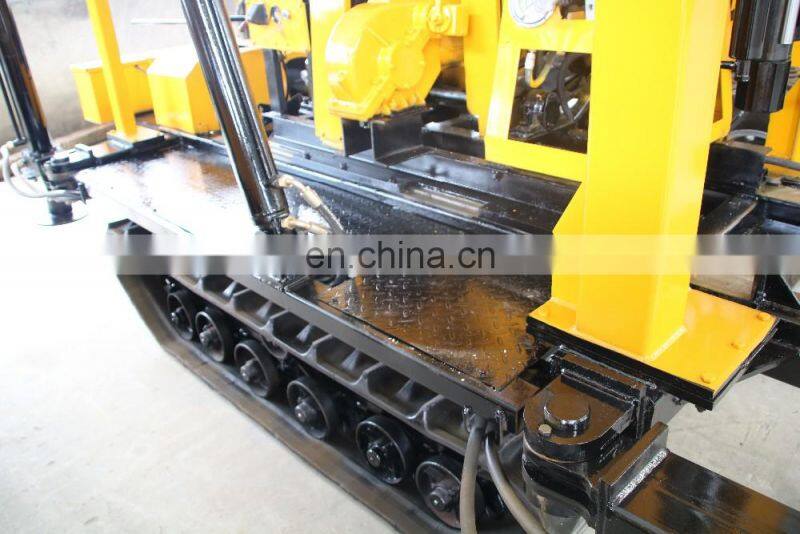

Name: Crawler mounted/trailer mounted
Brand:YT
Original: China
Crawler size:350*90*48mm
Climbing angle: 20 degree
Moving speed: 10KM/H

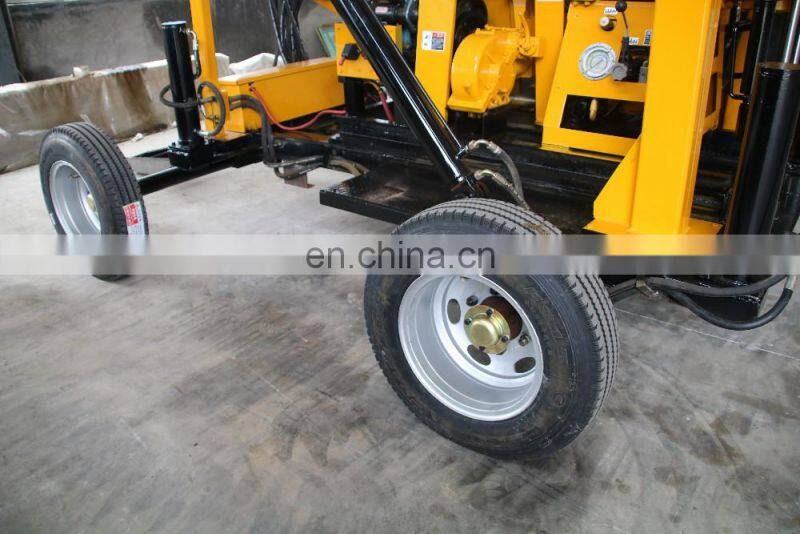

trailer mounted
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
200m, 600m,1400m core drill rig
91.8% Response Rate
Hydraulic DTH water well Drill rig
91.8% Response Rate
Anchoring Drill rig
91.8% Response Rate
600m tractor core drill rig
91.8% Response Rate
Tractor mounted core drill rig
91.8% Response Rate
Truck mounted 600m core rig
91.8% Response Rate
1.All spare parts can be changed for free with in 12 months.
2.The machine are expected to be functioning 10years with ability of spare parts.
3.You can enjoy technical support by phone call or email forever.We will respond quickly to provide a prompt solution.
4.On-site training could be executed if this term is included in the contracts agreed.
5.We can assign our engineers abroad for on-site service if this term is included in the contracts agreed
