Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill

Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-1
Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-2
Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-3
Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-4

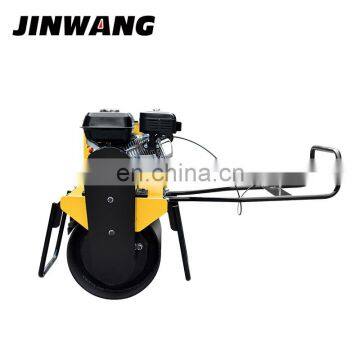

Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-5
Hand-held Single Wheel Manual Vibration Road Roller Compactor for Trench Backfill photo-6
US$ 695 - 780 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
JW
Place of Origin:
Shandong, China
Type:
Single Drum Roller
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name JW
Place of Origin Shandong, China
Type Single Drum Roller
Certification ISO,CE
Weight 150KG

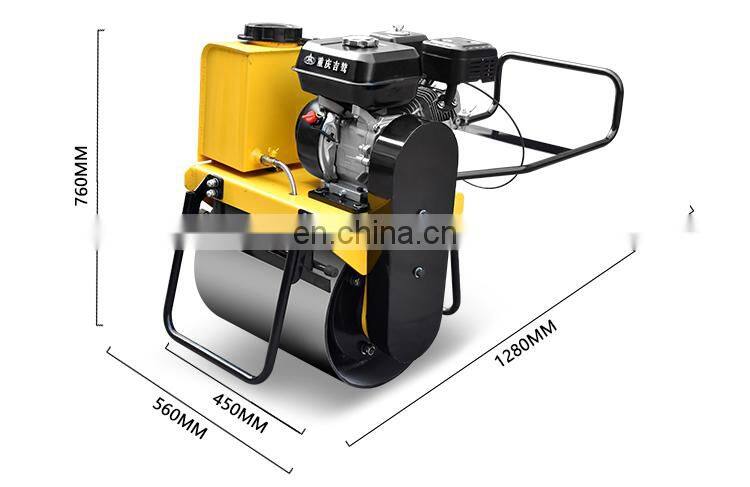

Dimension(L*W*H) 1280*560*760mm(handrails)
Condition New
Power(W) 4000
Grade Ability 30%
Travel Speed 0-3km/h

Hand-held single wheel manual vibration road roller compactor for trench backfill

Hand-held single wheel manual vibration road roller compactor for trench backfillHand-held single wheel manual vibration road roller compactor for trench backfill

Product Description

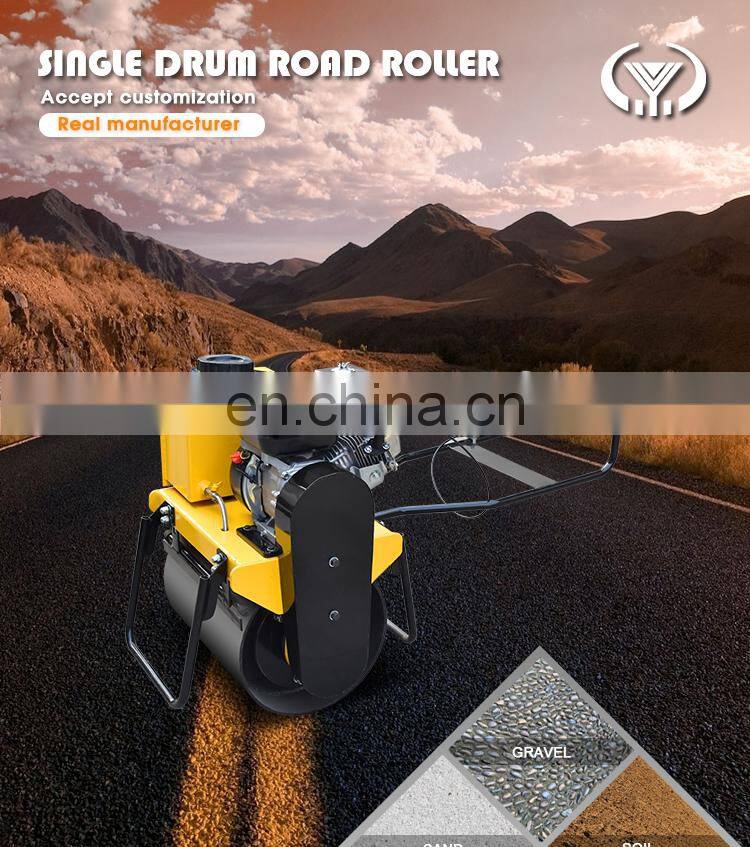

JinWang T450 single drum road roller ,the body is small, the machine is light, and it can be pushed by humans at will.

The small working radius allows it to work in tight areas and can be used for trench foundations, trench backfilling, building and square structures, and compaction of road compactors.

Hand-held single wheel manual vibration road roller compactor for trench backfill

Hand Push Single Drum Roller

Model

JWD-T450

Dimensions

Steel wheel width

450mm

Steel wheel diameter

380mm

Overall length (armrest flat)

1280mm

Overall width

560mm

Overall height (upright handrail)

960mm

Package dimensions

840*560*760mm

Machine weight

150kg

Engine

Model

HONDA Cx160

Type

Gasoline engine air-cooled 4-stroke OHV single cylinder

Rated power

5.5hp/3600rpm

Fuel tank capacity

3.6L

Lubricating oil quantity

0.6L

Fuel consumption

313g/kWh

Compaction ability

Static line load before/after

35N/cm

Nominal amplitude

0.5mm

Vibrational frequency

80Hz

Vibration force

10kN

Water tank volume

12.5L

Working condition

Drive

Human

Vibration

Mechanical transmission   Automatic centrifugal clutch

Walking parameter

Rated speed

0-3km/h

Theoretical climbing ability

30%

Hand-held single wheel manual vibration road roller compactor for trench backfill

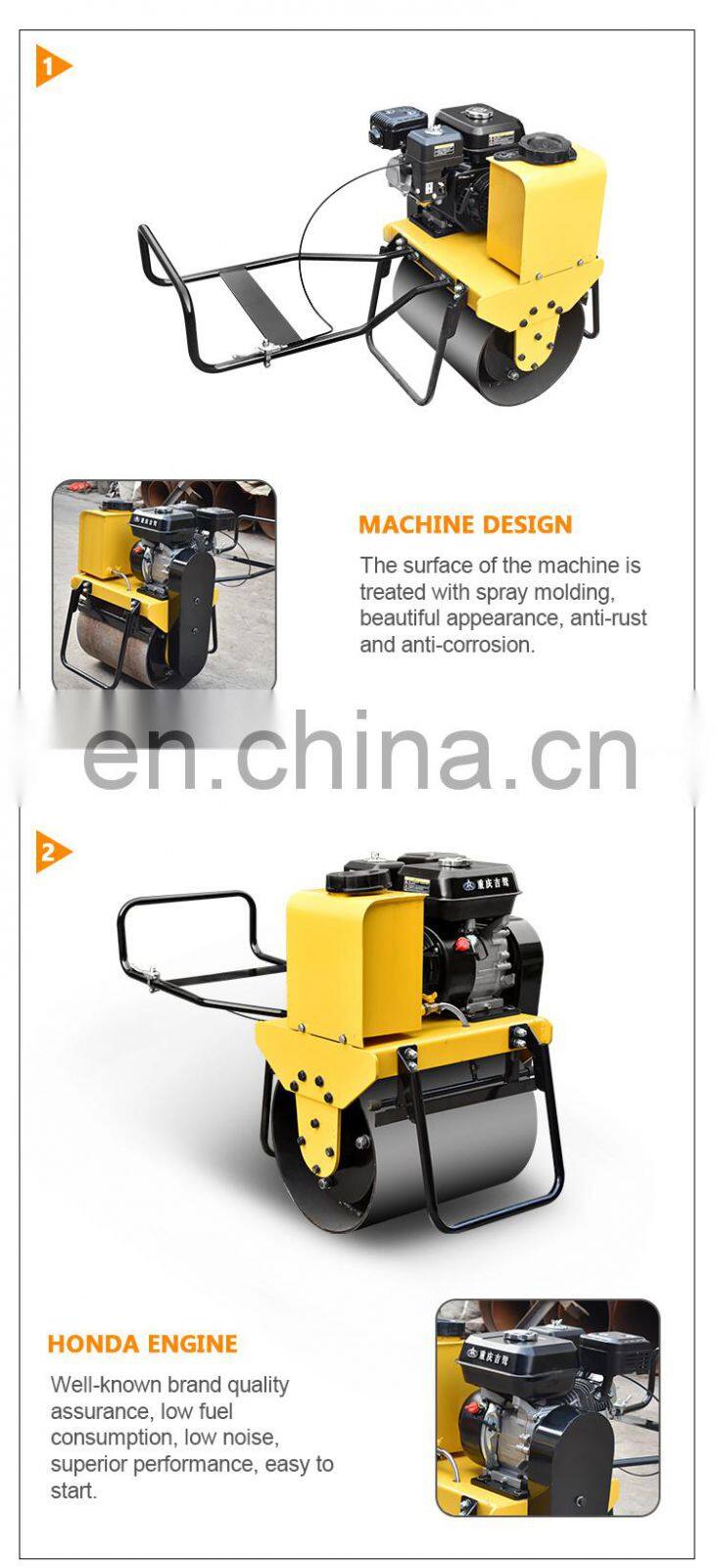

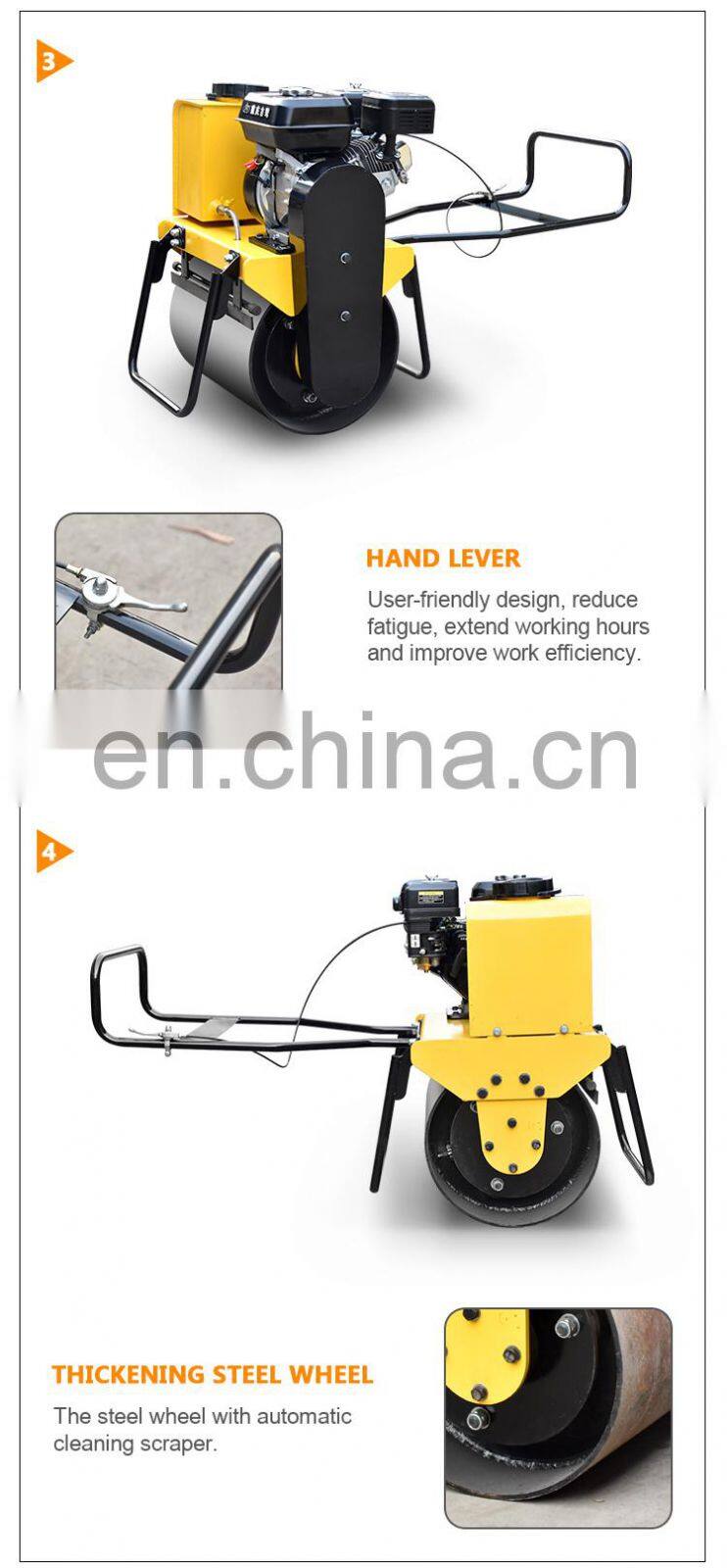

Product Details

 Hand-held single wheel manual vibration road roller compactor for trench backfillHand-held single wheel manual vibration road roller compactor for trench backfill

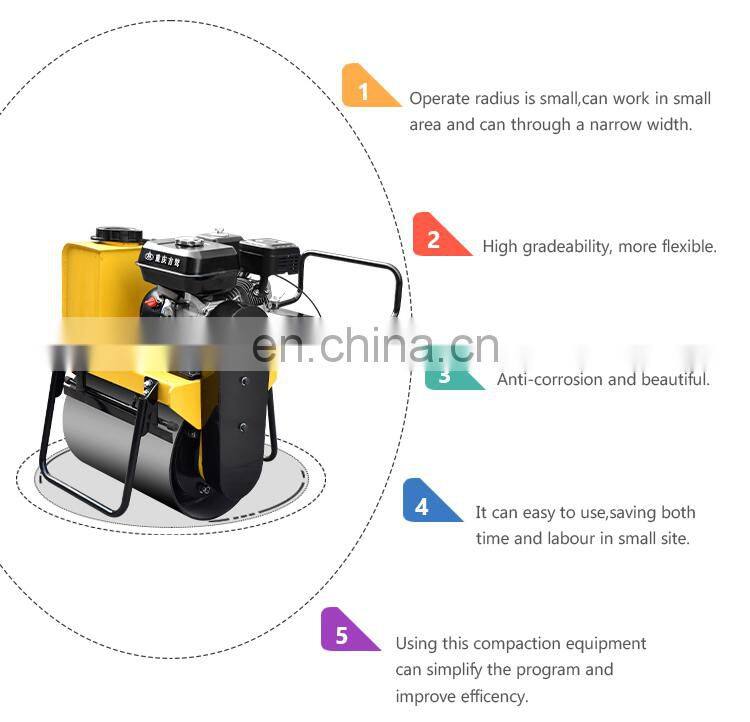

Product Advantages

 Hand-held single wheel manual vibration road roller compactor for trench backfill

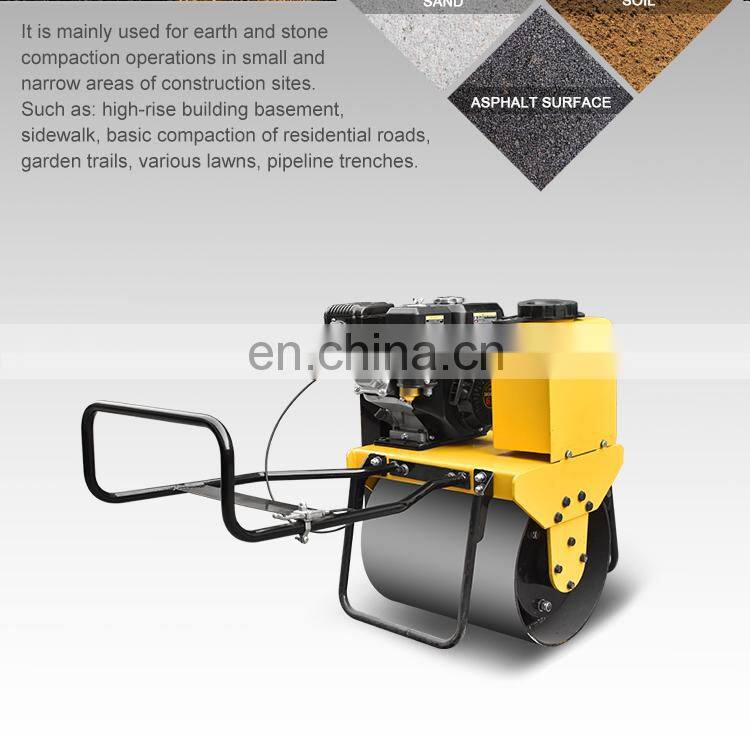

Product Application

 Hand-held single wheel manual vibration road roller compactor for trench backfill

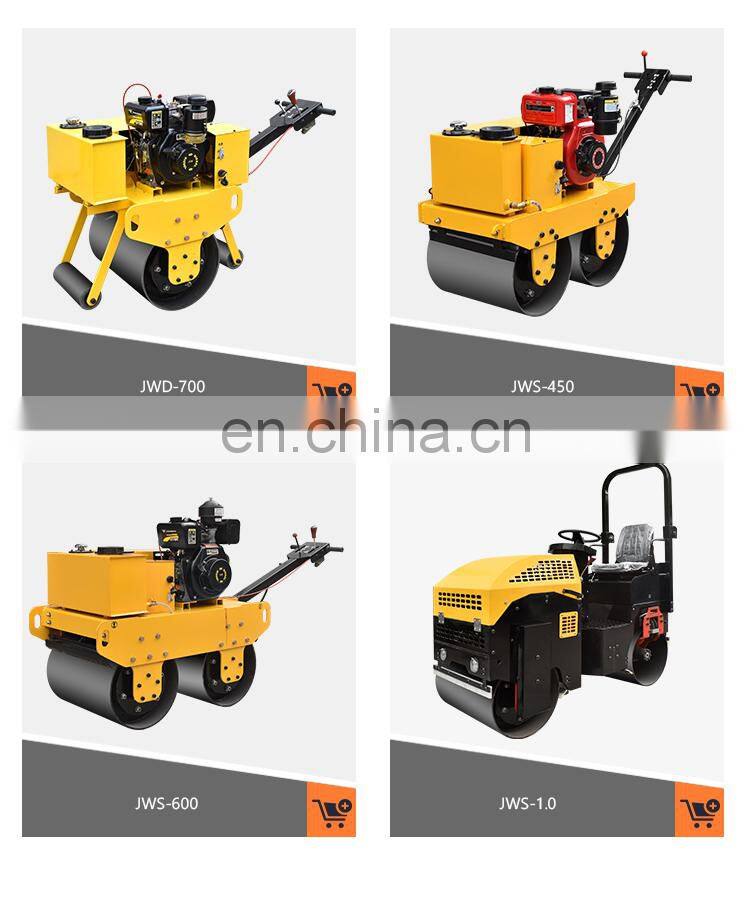

Related Products

Packaging & Shipping

Delivery time:About 7 days for preparing your order ,shipping immediately after receive your payment.

Standard packaging:Cartons cases/Wooden cases/Iron frame(as your as your requirement).

Hand-held single wheel manual vibration road roller compactor for trench backfill

Company Information

 Hand-held single wheel manual vibration road roller compactor for trench backfill

Jining Jinwang Machinery Equipment Co., Ltd. is located in Jining, the capital of the canal, the hometown of Confucius and Mencius, and the ceremonial state. The company is located in the Yadong International Heavy Industry Park of Jining Economic Development Zone. It is a well-known independent design, research and development, production. Manufactured in a comprehensive engineering machinery equipment manufacturer. At present, the main products are small excavator series, mini excavator series, mini excavators and so on. Our products are exported to more than 50 countries and regions overseas.

Hand-held single wheel manual vibration road roller compactor for trench backfillThe company is committed to providing interconnected, efficient and reliable overall solutions for modern agricultural production, urban living construction and resource industries. It is committed to continuously satisfying customers' needs, positioning customers, creating an international talent team, international advanced technology, international The national enterprise that influences the influence of the brand has become the leader in the global machinery and equipment manufacturing industry!

Hand-held single wheel manual vibration road roller compactor for trench backfill

FAQ

Q1. Are you manufacturer or trader?

A: Support field inspection and video inspection. We have many years of production experience and are a set of independent design, research and development, production and manufacturing in one of the comprehensive construction machinery manufacturers.

Q2. Can we accept customization?

A:We can customize according to your requirements, including size, appearance, color, etc.

Q3. How about your delivery time?

A:Generally, it will take 7-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4.Do you test all your goods before delivery?

A: Yes, We have a strict quality and safety management system. All products are 100% tested by IQC, IPQC, QE and FQC before leaving the factory.

Q5.What is the warranty policy?

A: The warranty period is one year and the parts are provided free of charge within the warranty period. If there is any quality problem, we can send engineers to the customer's place. We can provide Internet or telephone service at any time.

Q6. Our main overseas markets?

A:Our products are exported to more than 50 countries and regions, mainly South America, Africa, southeast Asia and so on.
