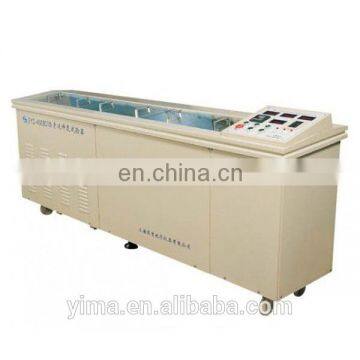

SYD-4508C Ductility Tester of Petroleum Asphalt

SYD-4508C Ductility tester of petroleum asphalt

Brief introduction

This instrument is suitable for according to GB/T 4508-4508, or 0605 T - 2011 standard stipulated by the method for determining the conditions stipulated in the asphalt in and stretch up to a certain temperature to a certain speed when fracture length, expressed in cm.

Features

1.The humanized design concept, test all screw groove, guides and other devices, sample installation is very convenient, maximum tensile length of 1.5 meters.

2.Novel transmission design, smooth tensile process synchronization, uniform speed, no shaking, ductility display accurate.

3.Configure, test, three sets of ductility test test made of copper materials, accord with the requirement of standard size.

4.Stretching after the test can be automatically return, accurate positioning.

5.The membrane panel, liquid crystal display temperature controller, touch key control, waterproof, durable, clean and convenient.

Technical parameter

1.Working power supply: AC220V (5% ~ + 10%), 50 hz.

2.Measuring range: 1.5 m (plus or minus 10 mm).

3.Forms of heating: electric heater heating.

4.Heating power: 3000 w.

5.Bath circulation: strong magnetic bath circulation pump cycle.

6.Temperature control range: 5 ℃ ~ 49 ℃ adjustable, digital display, display resolution temperature 0.01 ℃.

7.Temperature control precision: plus or minus 0.1 ℃.

8.Stretching speed: 10 mm/min, 50 mm/min two notches.

9.The measuring accuracy: + / - 1 mm.

12.The environment temperature: - 10 ℃ ~ + 35 ℃.

13.Relative humidity: 85% or less.

14.Appearance size: 2365 mm * 520 mm * 1000 mm (length * width * height).

15.Machine power consumption: no greater than 4100 w.
