AIC3600 Vibration Analyzer for Compressor Turbine Fans Etc

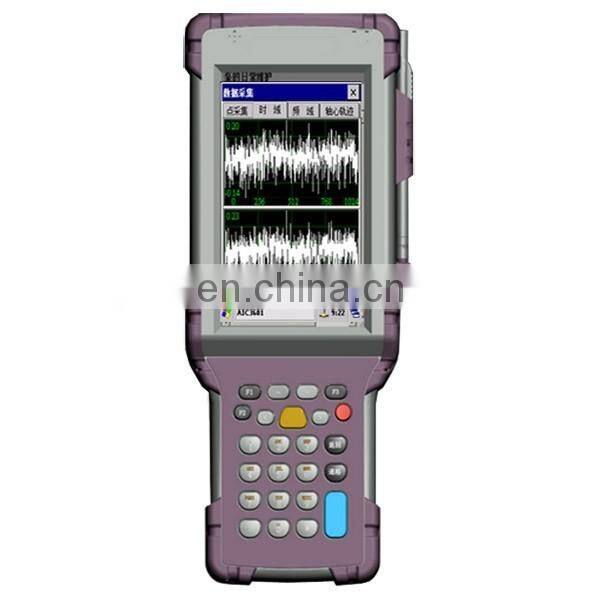

AIC3600 Vibration Analyzer for compressor turbine fans etc

Brief introduction

AIC3600 vibration analyzers are mainly divided into the AIC3061 single-channel vibration
analyzer and theAIC3602 double-channel vibration analyzer.
Basic introduction to the vibration analyzer: 1. randomly acquiring any equipment data without
conformance to the inspection route after the inspection plan is downloaded; 2. inquiring basic
information of the equipment on the analyzer by reading an ID button on the equipment; 3.
measuring vibration, temperature value, rotating speed, time-domain figure, frequency-domain
figure and axis orbit; 4. recording basic parameters such as pressure and flow of the equipment; 5.
giving a prompt when the measured value is out of limit and recording the state of the equipment;
6. serving as a note pad. 7. being multi-functional and convenient to carry.

Features

·Applied to TO-39 and TO-18 packages
·Single, double or four units
·8-unit linear array and 4X4 rectangular array, with a special integrated circuit with multiplexing
and various optical lenses
·Excellent photoelectric characteristics and extremely low temperature coefficients
·Various optical filters applicable to narrow band and wide band application
·Built-in environment temperature reference (thermal resistance)
·Continuous response in the whole infrared spectrum range
·Not sensitive to electromagnetic pulse (EMP) due to low internal resistance (<100kΩ)
·Based on return MOS silicon micro mechanical technology

Technical Parameter

 Parameters in the measurement mode
1) Sensitivity coefficient: 0.0035
2) Frequency range (+10%): 10 Hz - 15 KHz
Figure 6.1
User's Manual for AIC3600 VibrationAnalyzer
Page 13 of 17
3) Resonant frequency: 46 KHz
4)Amplitude linearity (+10%): 50g
5) Transverse sensitivity: 4.8%
5) Installation threads: M5
6) Weight: 20 gm
7) Dimensions: φ16mm × height 31mm
