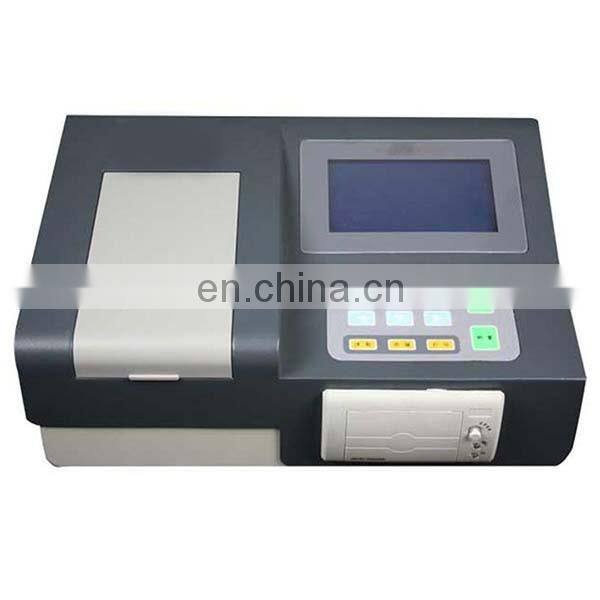

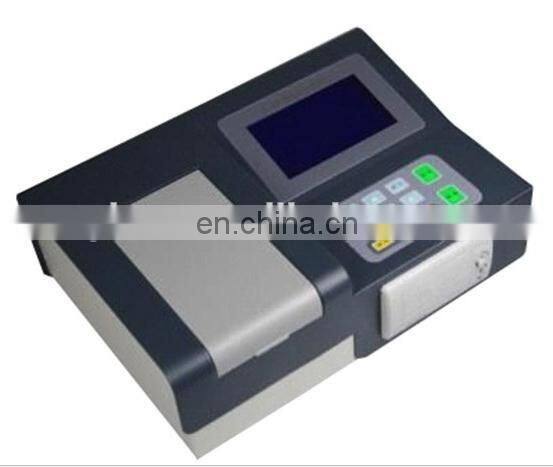

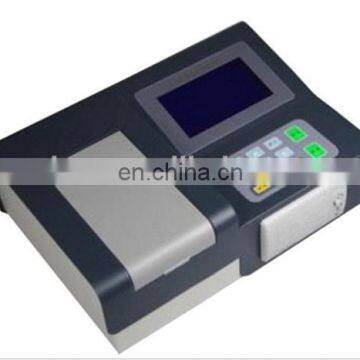

ZYD-Y1 Plant Nutrition Detector

ZYD-Y1 plant nutrition detector

Brief introduction:

Plant nutrition detector is a high degree of automation, soil special testing equipment, it can guide farmers reasonable fertilization, improve the utilization rate of fertilizer nutrients, crop production. Its essence, Jane, and fast can make users handy to finish the test in practice.

Features:

1. Equipped with operating system software installation CD, the software contains more than 50 common crops needed to keep weight per unit of production data.

2. The measured soil available nitrogen, available phosphorus and available potassium content, select the target to be planted crop type, crop yield, fertilizer varieties of chosen and corresponding the percentage content of nutrient input software, can automatically calculate the fertilizer rate per acre.

3. The measured soil fertilizer software can also be measured soil nutrient data management, data query, browse, analysis, statistics, print and publish.

4. Can be set up and print the sample number, test date, inspection units, samples of the test items, sample content, fertilization amount and other related information, make the print content is very detailed and rich.

5. The new instrument structure design, no moving parts, anti-interference, resistance to vibration, high detection precision, instrument long service life.

6. A large screen LCD, humanized operation interface, instructions in Chinese, can be directly read process monitoring data and test results.

7. Instrument host should bring along their own built-in miniature printer, it can print test results.

8. Portable design, metal shell, security firm.

9. High intelligent degree, the instrument can be automatic fault diagnosis system.

Technical indicators

Number of channels: 12 channel

Wave length: 410 nm, 410 nm, 589 nm, 640 nm

Display: 5 inch screen the liquid crystal display in Chinese

Storage: more than 10000 test results

Interface: USB

Drift: 0.003 or less Abs / 3 min

Transmittance: accuracy + / - 2%

Transmittance measurement repeatability: 0.3% or less

Each channel error: plus or minus 1.0%

Power input: 16 v DC 3 a

Instrument weight: 2.5 Kg

Size: 340 x240x120mm
