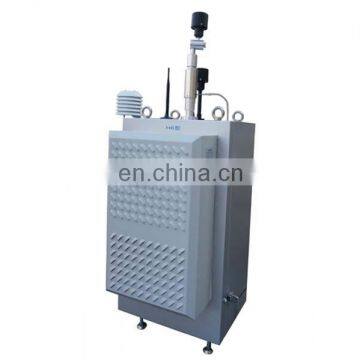

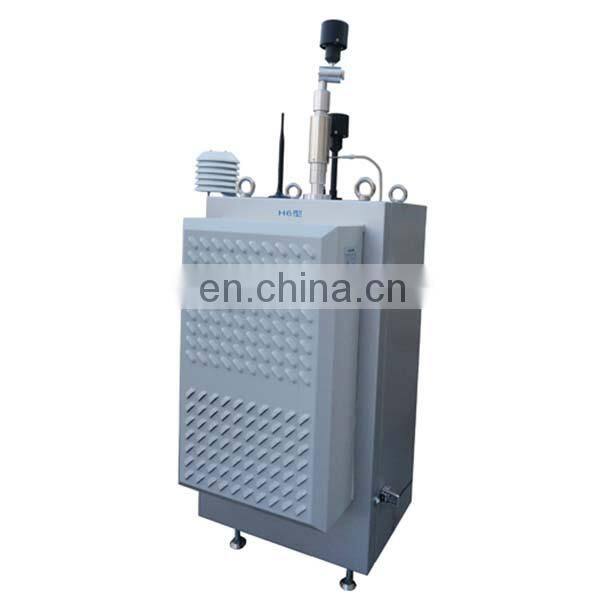

H6 Air Quality Warning System (constant Temperature Type)

 Brief introduction

We released a real-time ambient air pollutants monitor. Although its performance is close to the level of automatic monitoring system, but its cost is about one-fifth of the ambient air automatic monitoring system. Compared with the cheap alternative products on the market, H6 provides the test data can achieve very accurate results. And can be field calibrated according to the reference standard to ensure that it has the best traceability.Built-in air conditioning refrigeration, PTC heating module and PID temperature control module to ensure that the equipment in harsh climatic conditions can be long-term trouble-free operation. Users can customize the measured factors according to their own needs.The optional monitoring factors include: standard pollutants such as ozone (O3), nitrogen dioxide (NO2), nitrogen oxides (NOx), carbon monoxide (CO), sulfur dioxide (SO2), particulate matter  (TSP, PM10, PM2.5, PM1) (VOC), hydrogen sulfide (H2S), carbon dioxide (CO2); and noise, temperature, humidity, wind speed, wind direction, air pressure, precipitation, etc.

Application areas:

• Urban ambient air grid layout

• Road-related: highways, street junctions and so on

• Can be installed on a variety of mobile tools for monitoring

• Agricultural straw burning, forest fire alarm, tourist area air quality monitoring

• Industry-related monitoring: petrochemicals, power plants, waste disposal stations or yard, mining, cement, heavy industry, airports, docks, railways, construction sites

• residential quarters, schools, hospitals

• Environmental impact assessment, source analysis

• Short-term monitoring of "hot spots" to optimize the distribution

 main feature:

• Using air conditioning cabinets for long-term work in harsh climates;

• Modular design, configuration of any combination, easy to set different monitoring factors on demand, suitable for large-scale grid layout;

• Field calibration based on traceable reference standards;

• Optional zero calibration module;

• Selection of four-electrode high-precision imported sensors;

• No need to replace the sampling cutter, can simultaneously measure PM10, PM2.5 concentration;

• The circuit adopts industrial embedded processor, which can be suitable for harsh outdoor environment, working environment temperature range (-40 ~ 70) ℃;

• Particulate sampling using dynamic heating control to remove water mist on the measurement data;

• Particulate and gaseous pollutant sampling flow using electronic flowmeter flow rate measurement, dynamic PID flow control. Long - life sampling power system, quiet and efficient;

• Selection of industrial data transmission module, stable and reliable data transmission;

• The system uses dual-channel communication, in extreme cases to achieve communication, to ensure data continuity;

• Modular design, the module between the use of high reliability CAN bus communication, the use of automotive electronic communication protocol to ensure system stability;

• It can not only realize remote data transmission, but also read system status information remotely, and can realize remote control, realize remote modification of instrument parameters, diagnose fault;

• The terminal device can remotely upgrade the terminal's application program through the FTP server to realize the remote maintenance, so that the user can use the latest application program to update the system function in time;

• Optional weather meter five parameter tester;

• Optional IP camera to ensure that night and line of sight shooting requirements, can be automatically captured, but also for users to view in real time;

• Live real-time data display: The terminal meter displays data once for 5 seconds;

• Optional data service platform can display minutes, hourly average, daily average. The report analysis function can be generated on day

 Statements, monthly reports, annual reports, trend analysis and other functions. Support multi-point bit with the screen display, support mobile end

 End data query, but also to the display terminal to push data;

• Installation in a variety of ways, according to the scene to choose: bracket installation, hanging rod installation and other means, any kind of installation are solid and reliable, can resist the instant 12 wind.

Technical parameters

System standard configuration: host + temperature and humidity;

System optional configuration: PM2.5 / PM10 detection module (laser method), gaseous pollutant detection module, dust sampling head, gas sampling head, weather sensor, camera, LED display and bracket, noise outdoor kit.
