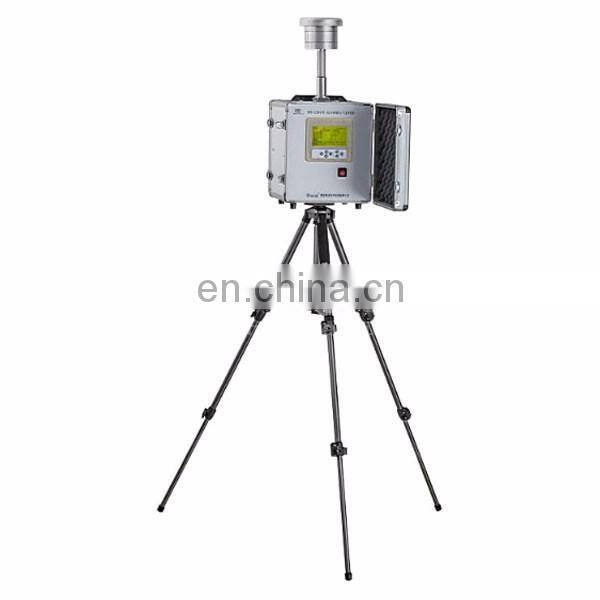

EA079 Ambient Air Noxious Harmful Gas Sampler

Brief introduction

Applicable to the collection of airborne particulate samples and NOX, SO2 and other harmful gases such as TSP/PM10/PM2.5

Features

1. A machine, with three channel simultaneous sampling function, can automatically and simultaneously achieve two harmful gases in the atmosphere constant current sampling and a particulate samples constant current sampling; machine integration structure design, compact structure, small volume, the transportation is convenient.

2 using ambient temperature, atmospheric pressure and 3 way high precision mass flow sensor and SCM Measurement and control technology, can automatically constant current sampling, sampling rate, volume and high precision. With quantitative, regular, interval sampling function.

3 sampling volume is the standard condition volume (the standard temperature is 273.15K and the pressure is the 101.325kPa state volume), does not need the manual computation, can display, store automatically.

4 overload automatic protection function

Sampling process, sampling flow for 5 minutes is not up to the set sampling flow rate of 90% or more than 10% of the set value, stop sampling.

5 power failure protection function

Sampling during power outages, can automatically store the sampling data, after the call to the sampling.

6 can store 162 sets of sample data.

7 big screen Chinese display, man-machine dialogue, simple operation, easy to use.

Technical parameter

Atmospheric sampling

1 flow setting range: (0.100 ~ 1) L/min (standard condition); flow resolution: 0.001L/min.

2 flow indication error is better than 2.5%, and the repeatability is better than 1%, and the stability is better than 2.5%.

3 timing error: + 1 per thousand.

4 sampling methods:

The immediately 24h sampling

The delay 24h sampling, the longest delay time 24h

The arbitrarily set start time and end time sampling

Sampling particles

1 flow operating point: 100L/min (working conditions), the flow resolution: 0.1L/min.

Error: flow is better than 2.5%, repeatability: better than 1%, stability is better than 2.5%.

2 temperature measurement range: (-55.0 ~ 125) C, the resolution: 0.1.

3 flow setting range: (15 ~ 140) L/min (working conditions), digital arbitrary set;

Sampling volume setting range: in the 9999 9999.9L arbitrary set, the standard error of the volume of the volume is better than 5%

4 atmospheric pressure measurement range: (50 ~ 140) kPa, resolution: 0.01kPa.

5 load capacity: sample flow 100L/min, can overcome the 6kPa resistance.

6 filtration membrane number range: (1 ~ 125).

7 brushless sampling pump, no fault running time is greater than 20000h.

8 sampling methods:

8.1 sampling quantity: according to set the sampling volume sampling (standard conditions 273.15K, 101.325kPa)

Quantitative sampling volume setting range: (1 ~ 99999999.9) L.

8.2 time sampling:

The immediately 24h sampling

The delay 24h sampling, the longest delay time 24h

The arbitrarily set start time and end time sampling

8.3 interval sampling: can be set according to the continuous time interval sampling, set the start date, start time, sampling time and time interval, the number of sampling

Working conditions

1 working environment temperature: (-30 ~ 50)

2 working environment relative humidity: less than 85%
