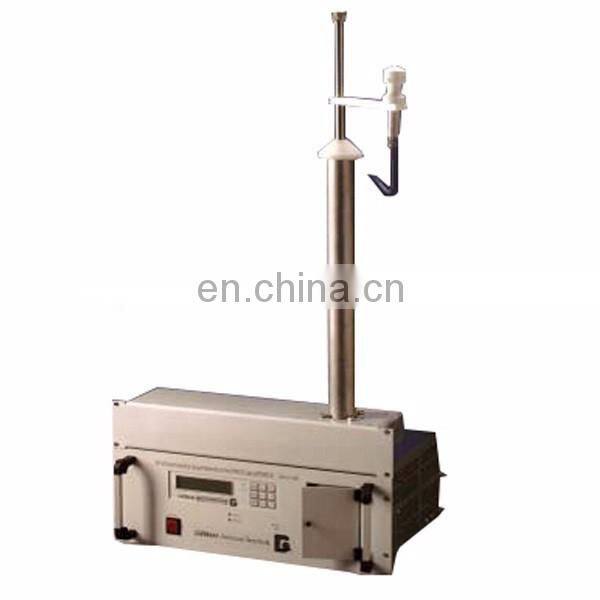

ZK-PDMS Laser Ambient PM1.0 PM2.5 PM10 Monitor US EPA Approved

 Brief introduction

The particle size spectrum analyzer takes the laser diode as the light source, and the 31 particle size channel measurement module can accurately calculate the particle mass concentration and distribution base. The analyzer can detect the particle size distribution of solid particles and droplets, the measurement process does not have the loss of semi volatile material, suitable for the official network instrument as PM10 and PM2.5 measurement. Study on the source apportionment of particulate matter and the number concentration spectrum has a important role in solving that need to be addressed in the environmental monitoring of Atmospheric Respirable Particulate Matter and other pollutants continuous, real-time and automatic monitoring problems, especially.

Features

Full automatic unattended online real time monitoring, 19 inch cabinet installation.

The simultaneous measurement of PM1, PM2.5, PM10 (optional 31 channel diameter), PM10, EU and US-EPA certification PM2.5 all.

Particle size distribution, relative temperature and humidity probe, atmospheric pressure (three options).

Not affected by vibration, there is no radioactive source, less maintenance, with automatic tracking system.

The use of NAFION as dehumidification method, SVC makes no loss.

Network instrument for atmospheric monitoring system.

Maintenance costs and monitoring costs are low.

Technical parameter

Particle categories: solid or non volatile liquid particles

Measurement range: 0.25 to 32 m

Sampling flow: 72L/h

Measurement of particle size channel: 31 channels

Power supply: 230V, 50Hz; 110V, 60Hz

Power: 80W
