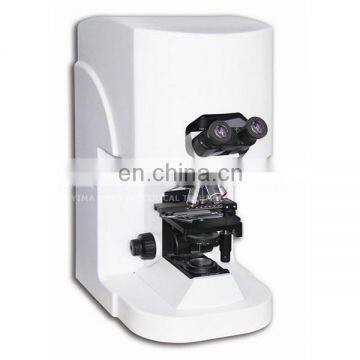

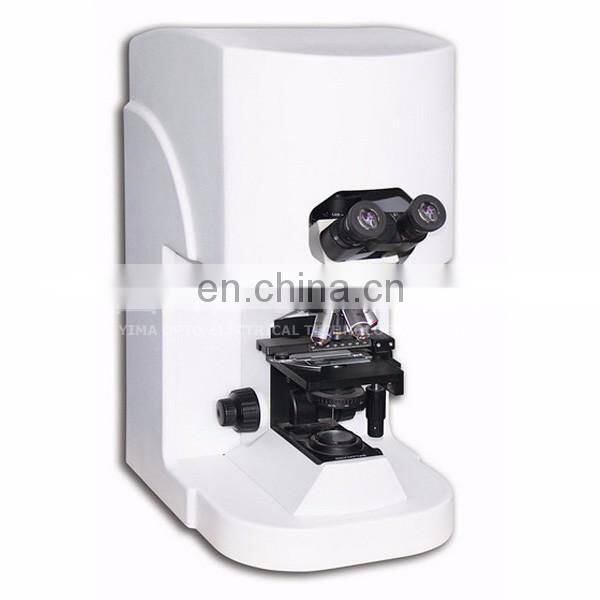

EA132 Dust Dispersion Tester Particle Distribution Analyzer

Brief introduction

Dust dispersion tester, the traditional microscopic measurement methods and modern image technology combination is a kind of using the image method, the dust particle analysis and particle size measurement system analysis, by optical microscope, digital CCD camera and particle image processing analysis software. The system through the special digital camera microscope dust image photographed and transmit them to the computer, through a dedicated dust dispersion degree of treatment analysis software for image processing and analysis, with intuitive, vivid, accurate and wide measurement range and other characteristics.

Directly through the computer software of dust particle size and number of parameters of one button automatic analysis and statistics, and fully in accordance with the national standard grain size distribution is divided into four regions, namely: <2um, 2um-5um, 5um-10um, >10um, and can according to user needs, custom grading. Its operation method is simple, practical, fast, accurate calculation results.

Features

Compared with the traditional counting method, it not only improves the clarity of the dust particles and the accuracy of the data, but also conforms to the principle of the measurement of the degree of dispersion of the geometric projection diameter. In addition, through advanced imaging technology, not only can maintain the prototype of dust particles, but also in the treatment of overlapping dust, using the most advanced segmentation technology, is a leap in the degree of dispersion.

Technical parameter

1, measuring range: 1 to 3000 microns

2, the maximum optical amplification: 1600 times (the total magnification) 7197 times

3, accuracy error: < + 3%

Three orders: flat field microscope eyepiece: 10 * and 16 *

Achromatic lens: 4 *, 10 *, 40 * and 100 * (oil)

Total magnification: 40 x -1600 x

Camera: 3 million pixel digital CCD (standard C interface lens)
