WBMW -2 Microwave Materials Science Workstation

WBMW -2 Microwave Materials Science Workstation photo-1
US$ 6,200 - 6,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
renshijuyuan
Place of Origin:
Shaanxi, China
Model Number:
WBMW - 2
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name renshijuyuan
Place of Origin Shaanxi, China
Model Number WBMW - 2
Power Electronic

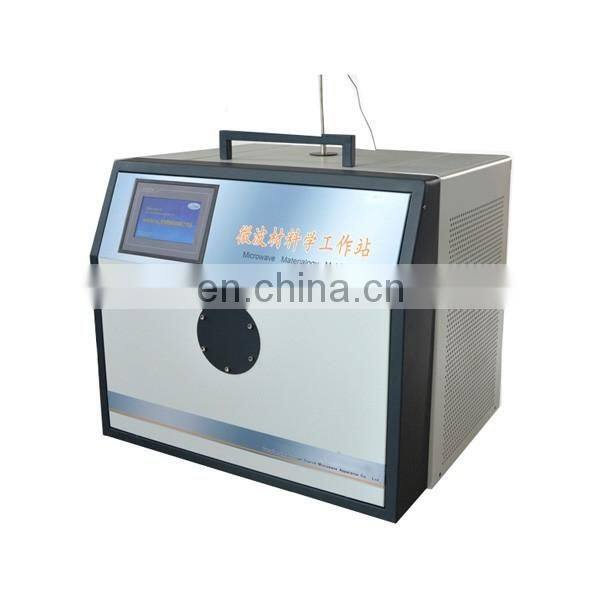

WBMW-2 Microwave materials science workstation
Features:
The unit can be used as a (manufacturing) both high and low temperature microwave muffle furnace, muffle furnace, sintering furnace, ashing furnace, vacuum & tube furnace atmosphere, the microwave chemical reactor, in situ, in situ dynamics analysis of macro thermogravimetric analyzer, microwave temperature range of electric arc furnace, heating furnace, such as high pressure compression furnace, high temperature tensile furnace used alone, also can be integrated on the same carrier as a single workstation.

Technical parameters:

Model

WBMW-2

WBMW-4

Can be heated material

Not any inflammable and explosive materials

microwave frequency

2.45GHZ±50MHz

Heating manner

Pure traditional microwave heating, electric heating and hybrid heating

The biggest power/KW

2  (Adjusted power)

4 (Adjusted power)

maximum working temperature /

1600

Long-term Working Temperature /

≤1500

Temperature test element

Special sensor microwave field

  • temperature control accuracy

 /

±2

Furnace chamber size (long * wide *deep)/ mm

300*300*450

400*400*550

The heating cavity quantity/piece

0.5 L ~ 3 L option 2 (see table 2) heating chamber models and sizes

Heating rate (standard)

0~80/min
Set arbitrary, programmable, heating

0~250/min
Set arbitrary, programmable, heating

  • temperature control system

Adopt PLC control, touch screen operation

Installation dimensions (long * wide * high)/ mm

730*610*700

1000*720*800

microwave leakage /m W/cm

≤0.4

≤0.4

Provide related accessories

High temperature gloves * 1 , Chinese instruction*1

Warranty

1 years



WBMW -2 Microwave materials science workstation

Dear customer,

  We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .

  Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.

  Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.

  If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba

We firmly believe that science and technology is no boundaries

Our mission is to make every effort to contribute to all humanity.
