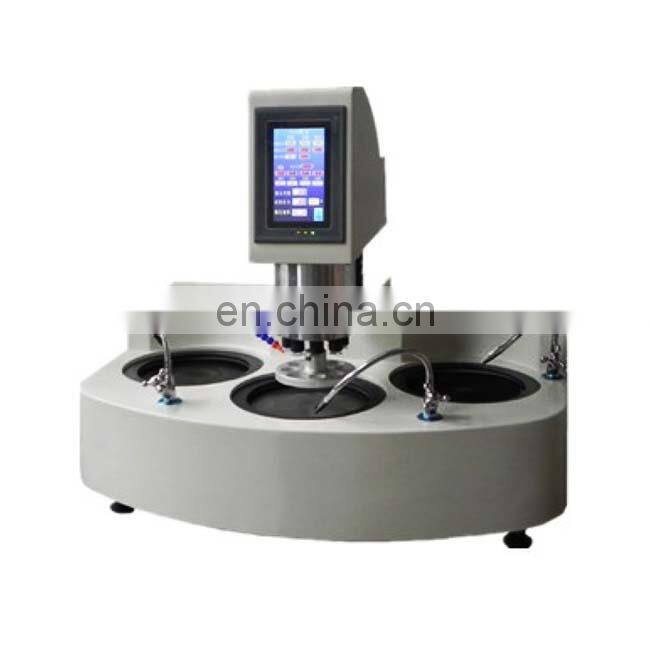

ZMP-3000 Automatic Metallographic Grinding and Polishing Machine

ZMP-3000 automatic metallographic grinding and polishing machine

Introduction:

ZMP-3000 automatic metallographic grinding and polishing machine is designed for accurate and reproducible preparation results during metallographic inspection. It is suitable for manual or automatic sample preparation. Its simple and flexible operation makes it easy for users to cope with various applications. demand,.

Features:

1. Intuitive touch screen panel, friendly interface

2. Single point force and center force loading method

3. Adjustable speed of working plate and grinding head

4. Can store 100 custom grinding and polishing programs

5. With automatic liquid filling unit Easymat

6. Emergency stop button

7. Adjustable metal hose for easy flushing

8. Use durable materials

9. With EasyTurn grinding head, it can automatically switch between two work disks

EasyTurn grinding head: After the position of the disc 1 is finished according to the setting procedure and time, the grinding head automatically moves to the position of the disc 2, automatically works according to the setting procedure of the disc 2, and then moves to the position of the disc 3 to work.

Technical Parameters:

Model: ZMP-3000

Loading method: single point force or center force loading

Single point force loading: 1-40N 1-8 samples

Center force loading: 300N

Mode of operation: automatic

Grinding disc diameter: 230mm

Working plate speed: 50-1500r/min

Grinding head rotation speed: 20-160r/min

Motor power: 550W (3 AC variable frequency motors)

Sample size: Φ8-40mm (special size can be selected)

Power: 220V/50HZ

Optional: Silent air pump, diamond grinding disc
