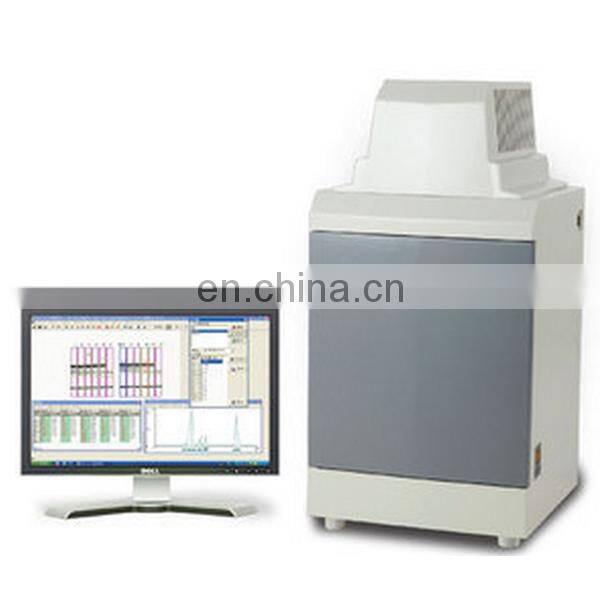

Tanon 6100 Chemiluminescent Imaging System

Tanon 6100 Chemiluminescent Imaging System

Introduction

Tanon 6100 model offers sensitive chemiluminescence detection in addition to gel and blot documentation of fluorescent and colorimetric samples.The system includes a supersensitive 16-bit CCD camera that is supercooled for detection of faint chemiluminescent samples. F/0.95 lens upgrade the sensitivity. The system is the ideal accompaniment to chemiluminescent western blots. It enables quick and easy visualization, documentation, and analysis ofblots with a few clicks of mouse

Features

Cooling to -40℃(absolute) for optimal imaging with low-light applications.

True 16-bit date and a dynamic range that covers 4.5 orders of magnitude to maximize limit of detection.

Blot imaging and analysis are easy and accurate.

The operation of excitation sources , motorized lens , the imaging taken are controlled by the GIS 1-D software.

Technical parameters

Camera : High-sensitivity monochrome camera

Sensor : Sony ICX694

Camera cooling system : Peltier

Cooling range (absolute) : -40℃

Quantum efficiency : High QE: 75%

Dark current : 0.0005e-/pixel/sec. @ -35º C

Readout noise : 5.5 e- RMS at 12 MHz

Exposure time : 1ms-60min

Pixel array size (H×V) : 2750 X 2200

A/D conver : 16 bit (0-65535)

Pixel size (H×V) : 4.54um×4.54um

Binning : 1×1,2×2,4×4,5×5

Dynamic range : >4.6 OD

Motorized lens : F/0.95,1 inch lens, Software - controlled Focus

Zoom : Two locality sample platform

Excitation sources : Overhead LED white light

Filter station : No

Filter : No

Sample area : 16×16cm

Operating system compatibility : Windows Xp, Windows 7, Windows 8
