LSE030 Experimental Multi-function Extractor

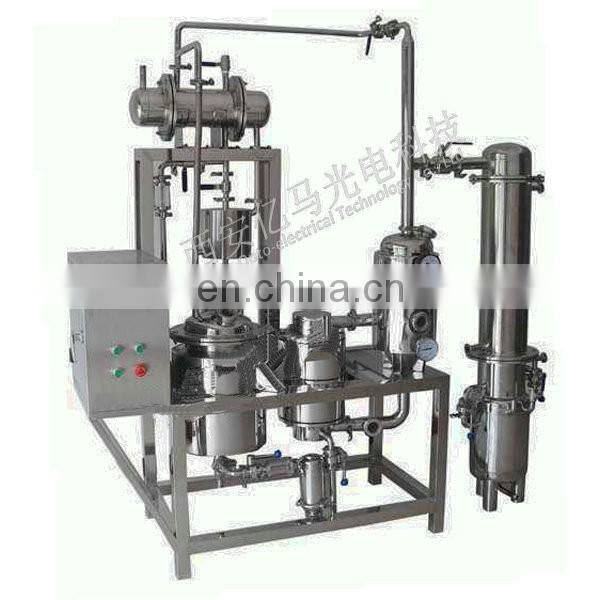

LSE030  experimental multi-function extractor

Brief introduction:

LSE030  experimental multi-function extractor is our company on the basis of similar products at home and abroad for reference, research and development of new products, equipment composition, extraction tank, reflux condenser, reflux cooler, aromatic oil collector, extraction tank filter, column tubular heater, evaporator, recovery condenser, recycle cooler, collecting tank, stainless steel frame and connecting pipe valve parts, instrument, etc

Equipment function: static water extraction or alcohol extraction, normal pressure hot reflux water extraction or alcohol extraction, outside atmospheric circulation concentration, atmospheric concentration, vacuum decompression concentration, organic solvent recovery (atmospheric pressure or vacuum)

Features:

1. The cover an area of an area small, only 2 ~ 3 m2, connect water and electricity can be used, minimum inventory 0.3 KG.

2. The extraction system equipped with reflux condenser, cooler, oil water separator, aromatic oil can effectively recycle material.

3. The heat conduction oil circulating heating (interlayer pressure), uniform heating, and the heater from extraction tank, applied in the organic solvent extract concentrated

 more secure.

4. Outside the cabin crew circulation evaporation concentrator, enrichment efficiency, higher concentration proportion can reach 1.1 ~ 1.38.

5. Suitable for scientific research institutions, universities and colleges, hospitals, pharmaceutical industry, food industry on materials such as wood, tea, juice and fruit juice solution extraction, enrichment, and recycling of organic solvent.

6. Can be hot reflux extraction, enrichment, conventional extraction, enrichment, water sink sink (alcohol) and other operations

7. Because the entire extraction and enrichment, and the recovery is in the flow of closed, thus avoiding the "run", "risk" and "leak" wait for a phenomenon

8. The unit and material contact parts are all made of stainless steel, power is in the negative pressure, normal pressure, work positive pressure condition.

9. Low temperature concentration, ensure the quality of products, dynamic circulation evaporation, improves the thermal efficiency change, effectively solve the problem of change with higher concentration and lower thermal efficiency, saving energy consumption, improve working efficiency

Technical parameters
