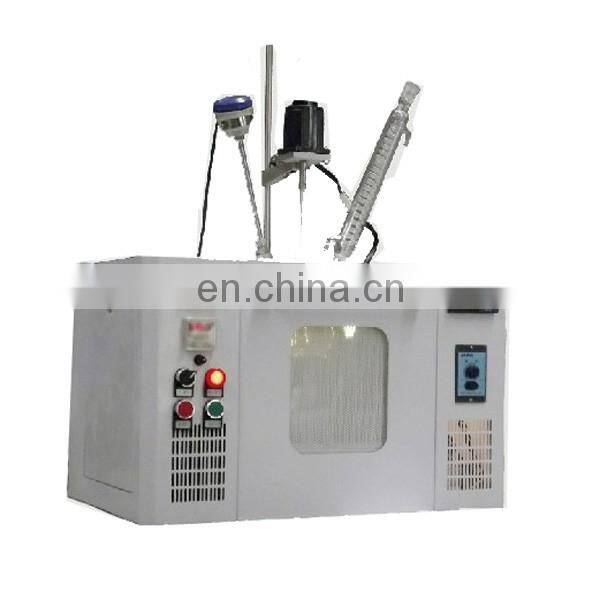

MKX-H1C1A Laboratory Microwave Heating Oven

MKX-H1C1A laboratory microwave heating oven

Introduction:

MKX-H1C1 series microwave chemical synthesizer, the use of industrial automation (PLC) control, color touch-screen operation, has a good interactive interface. At the request of a plurality of data to monitor temperature, humidity, pressure, power, etc., and set the mass storage function, can store multiple sets of reaction conditions, its biggest feature is in the following two aspects, to provide users with a fully functional test platform .

Feature

Atmospheric Microwave Synthesis / Extraction System: According to the test conditions of the material form (solid, liquid, solid-liquid mixed state), the experimental requirements (heating, concentration, drying, pyrolysis), the material dielectric properties (low dielectric constant, high dielectric electric constant), and thermal conductivity (high and low), set up a variety of temperature sensors, including (1), the thermal resistance of the contact temperature measurement, (2) non-contact infrared surface temperature measurement, (3) internal temperature optical fiber etc., and the design of advanced microwave power with automatic adjustment of the reaction temperature control technology, non-pulsed microwave continuous heating, the reaction stably performed.

Technical Parameters

Product name laboratory microwave oven

Model MKX-H1C1A

Dimensions (mm) 670 * 460 * 450mm (W * H * D)

Volume of inner (L) size 250 * 275 * 285mm (width × height × depth), suitable for release 20 ~ 1000ml beakers, flasks and other containers

Equipment power (W) 900

Operating Voltage (V) 220

Limit temperature (℃) 300

At Temperature (℃) 0-300

Mechanical agitation mixing method

Contact temperature measurement methods platinum resistance temperature sensor, digital online real-time display of temperature

Temperature accuracy ± 1 ℃

Selected with magnetic stirring, infrared temperature measurement

Shelf except wearing parts, the whole year warranty
