Home > Products > Lab equipments > JK-PTGHW-A10 Heating Mantle

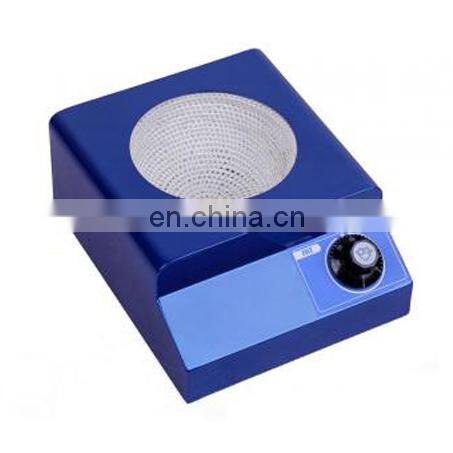

JK-PTGHW-A10 Heating Mantle
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | JK | Place of Origin | Shaanxi, China | |
| Model Number | JK-PTGHW-A10 |
Product Description
Application
It is an ideal equipment used for heating liquid in those laboratories of medicine, petroleum, chemical industry,universities and colleges and environmental protection,etc.
Characteristics
1,It adopts thermotolerant alkali-free glass fibre as insulating material, resistance wire made of nickel-chromium is sealed in the insulating layer, braid a hemispheric internal heater.
2,The case is made of high quality cold-roll steel sheets with car baking finish on the surface,novel and beautiful
3,Large heating area,fast heating up,even temperature,good heat preservation,no open fire.
4,Anticaustic,aging resistance, sturdy and durable,safe and reliable.
5,Easy to operate,good using effect.
6,Heating mode is thermoregulation type(electronical thermoregulation)
Technical parameters
Model Parameters | JK-PTGHW-A1 | JK-PTGHW-A2 | JK-PTGHW-A3 | JK-PTGHW-A4 | JK-PTGHW-A5 |
Item.No | 090601 | 090602 | 090603 | 090604 | 090605 |
Specification (ml) | 100 | 250 | 500 | 1000 | 2000 |
Power (W) | 100 | 180 | 250 | 300 | 500 |
Voltage (V) | -220V±10% 50Hz |
|
|
|
|
Maximum temperature(℃) | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ |
Working time | continuous | continuous | continuous | continuous | continuous |
Dimension [cm] | 23*17*13 | 31*20*15 | 39*27*16 | 39*27*16 | 39*27*16 |
Weight (Kg) | 2.5 | 2.5 | 3 | 5.5 | 6 |
Model Parameters | JK-PTGHW-A6 | JK-PTGHW-A7 | JK-PTGHW-A8 | JK-PTGHW-A9 | JK-PTGHW-A10 |
Item.No | 090606 | 090607 | 090608 | 090609 | 090610 |
Specification (ml) | 3000 | 5000 | 10000 | 20000 | 50000 |
Power (W) | 600 | 1000 | 1500 | 2500 | 6000 |
Voltage (V) | -220V±10% 50Hz |
|
|
|
|
Maximum temperature(℃) | 380℃ | 380℃ | 380℃ | 380℃ | 380℃ |
Working time | continuous | continuous | continuous | continuous | continuous |
Dimension [cm] | 43*30*19 | 45*33*21 | 55 *40 *25 | 60*44*33 | 70*54*43 |
Weight (Kg) | 7 | 10 | 16 | 25 | 25 |
