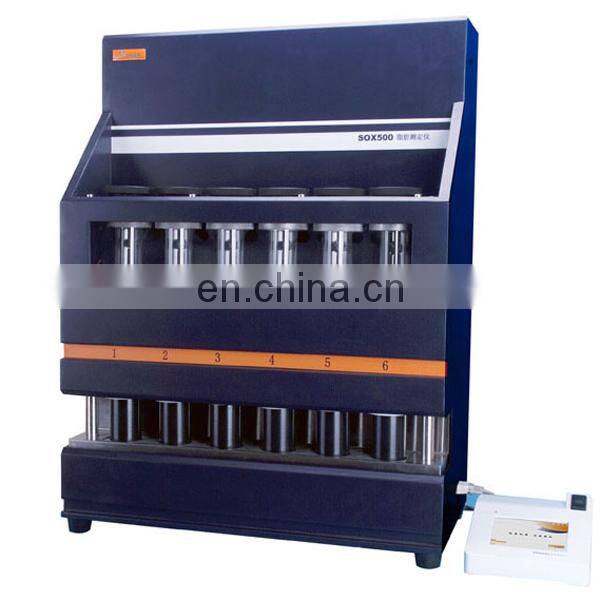

SOX500 Crude Fat Analyzer(Soxhlet Extractor )

Brief introduction:

SOX500 fat tester is according to the principle of soxhlet, the weight method is adopted to determine the most crude fat fat tester. Instrument with soxhlet method of standard method (gb), soxhlet extraction, hot extraction, continuous flow and CH standard heat extraction and so on five kinds of extraction methods; Can automatically realize extraction, leaching, solvent recovery and predrying four big functions; In one-piece metal bath heating, the heating effect will be improved; Color touch screen and its simple interface design style give people a new feeling; Using external operation panel; Built-in ether leak detection device to prevent air pollution, protect the safety of the experiment. Widely used in agriculture, food, environment and different fields such as industry, food, oil, feed and other industries the ideal instrument for the determination of fat; Also can be applied to medicine, soil, sludge, detergents and other substances in the extraction of soluble organic compounds.

Features:

1. Touch the color display and its simple interface design style give people new experience

2. The outer small operation panel, simple operation, save a space

3. Select five unique extraction way

4. The experiment process at any time suspend or continue, flexible manipulation

5. One-piece metal bath heating, heating up fast, uniform, stable and safe

6. The temperature control range, for a variety of different boiling point of organic solvents

7. Independent timing and time control loop system, accurate control experiment

8. The outer flexible printing system choice

9. Ether leakage alarm, ensure the safety of the researchers

10. Abnormal real-time monitoring instrument

11. Condensate real-time detection

12. Efficient solvent recovery system

Technical parameters:

Temperature control range: room temperature + 5 ℃ ~ 300 ℃

Measuring range: 0.1 ~ 100%

Temperature control precision: + / - 1 ℃

Repeatability error: 1%

Determine the sample weight: 0.5 g ~ 15 g

Processing capacity: 6 / batch

Heating cup size: 150 ml

Solvent recovery rate: 85% or higher

Determination of time: 20 ~ 80% shorter than that of the traditional methods

Power supply: 220 VAC plus or minus 10% 50 hz

Rated power: 2.6 KW

Overall dimensions (length x width x height) : 650 mm * 348 mm * 875 mm

Net weight: 61 kg
