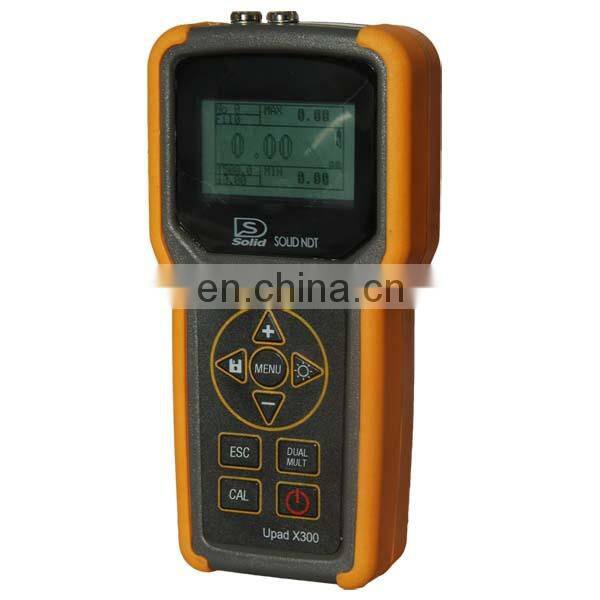

Upad X300 Ultrasonic Thickness Gauge

Introduction

The Upad X Ultrasonic Thickness Gauge maximizes the "no need to remove the coating" and "automatic zero-point calibration"; at the same time, taking into account reliability, performance and durability, the X300 Ultrasonic Thickness Gauge is wherever you are Trustworthy and hard-working partners. The X300 intelligently combines advanced zero point calibration technology with automatic real-time probes to solve probe wear, probe replacement, or zero-point error during high-temperature measurement. The application of echo-echo detection technology enables detection accuracy to be perfect, eliminating paint on materials. The impact of such protective layers, while greatly improving production efficiency. This innovative thickness gauge will provide users with a superior experience.

It is suitable for measuring the thickness of good conductors of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass fiber and any other ultrasonic waves.

Features

1 The powerful penetrating coating thickness measurement function frees you from the hassle of tedious preparation and allows you to easily measure the thickness by slightly processing the coating surface.

2 Advanced zero-point real-time automatic calibration technology to track the latest technological trends in the world. It eliminates the trouble of manually correcting the zero point of the probe, and solves the measurement error caused by zero drift of the probe to ensure the accurate measurement value and get rid of the dependence on the standard test block.

3. USB interface can be inserted into U disk, no need to drive, plug and play, to achieve thickness report

4. Unprecedented mass storage, leading the trend of technology. Can save 1000 sets of data, each group can save 1000 data, outstanding, unprecedented.

5. Online statistics during measurement: maximum, minimum, standard deviation; data file statistics: maximum/small value, mean value, mean square error

6. It has the probe connection status indication function; it indicates the strength of the signal coupling; the measured value shows a solid/hollow change, and visually indicates whether the coupling condition can be measured normally.

Technical Parameters

How it works: Ultrasound (pulse-echo/echo-echo)

examination range:

 Normal mode 0.75-400mm

Penetrating coating 2-25mm

(depending on probe, material under test and surface condition)

Detection resolution: 0.1mm (> 100mm) / 0.01mm (<100mm)

Accuracy of indication: ±(0.5%H+0.01)mm

Sound speed: 1000~9999m/s, preset 5 common material sound speed

Zero auto calibration: real-time zero calibration of probes with unique zero auto calibration technology

V Course Correction : Automatic

Probe connection status indication : Yes

Coupling status judgment: Prompt signal coupling strength; measured value display solid/hol

Dimensions: 165×82×30 mm

Weight: 250g (including battery)

Working environment: Temperature: -20°C~70°C Humidity: 5%~90%

Excitation pulse: 150V negative pulse

Gain: High/Low/Auto

Frequency bandwidth: 0.5-15MHz

LCD dot matrix display:

 High-contrast 128x64 dot-matrix liquid crystal display, beautifully printed text, numbers and symbols, high-brightness EL backlight

Measured value display: 3 customized measured value display areas, online statistics or speed

Statistics:

 Online Statistics: Maximum, Minimum, Standard Deviation

File statistics: maximum/small value, mean value, mean square error

Alarm : Threshold sound and light alarm

Storage: 1000 sets of thickness values 1000/set, linear

USB storage: Break through the traditional storage mode, measure the thickness of the report storage anytime, anywhere

No need for communication software, get rid of cable constraints.

Probe connection: LEMO 00 (C5) x2

Communication: RS232/USB

Battery: 1.5V AAA Battery x4

Working hours: Can work continuously for 200 hours (under standard test conditions)
