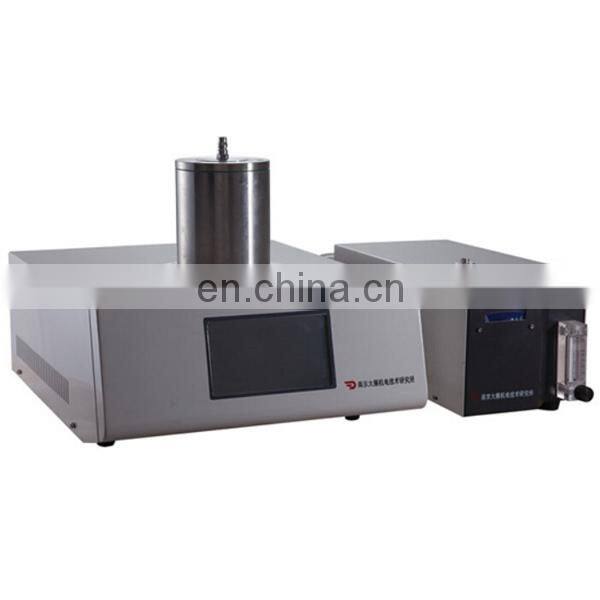

STA200 Synchronous Thermal Analyzer

Introduction:

Simultaneous thermal analysis will be DTA TG thermogravimetric analysis and differential thermal analysis and differential scanning calorimetry (DSC combined into an organic whole, at the same time measurement using the same sample synchronization by TG and DTA and DSC.

Survey and research materials of the following features:

DSC: melting, crystallization, phase change, reaction temperature and reaction heat, heat of combustion, heat...

TG: thermal stability, decomposition, REDOX, adsorption, desorption, free water and crystal water content, composition ratio calculation, etc

Technical parameters:

TGA/DSC STA - 200 thermal analyzer temperature range: at room temperature to 1150 ℃ can be extended to ~ 1350 ℃

The temperature resolution: 0.1 ℃

Temperature fluctuation: plus or minus 0.1 ℃

The heating rate: 1 ~ 80 ℃/ min

Temperature control mode: temperature, constant temperature, cooling

Constant temperature time: 0 ~ 300 min set arbitrary

The cooling time: 15 min (1000 ℃ ~ 100 ℃)

Scales measuring range: 1 mg ~ 2 g can be extended to 5 g

DSC range: 0 ~ + 500 mw

DSC resolution: 1 mu W

Resolution: 0.1 mu g

Constant temperature time: 0 ~ 300 min set arbitrary

Display mode: 24 bit color 7 inch LCD touch screen display

Atmosphere: inert, oxidizing, reducing and static and dynamic

Atmosphere device: built-in gas flowmeter, contains two gas switch and flow control

Software: intelligent data processing software can automatically record TG curve, print test reports

Data interface: standard USB interface

Power supply: AC220V 50 hz
