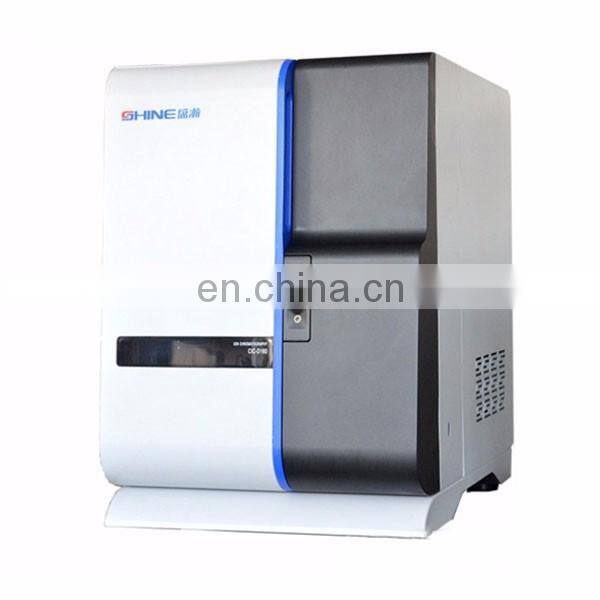

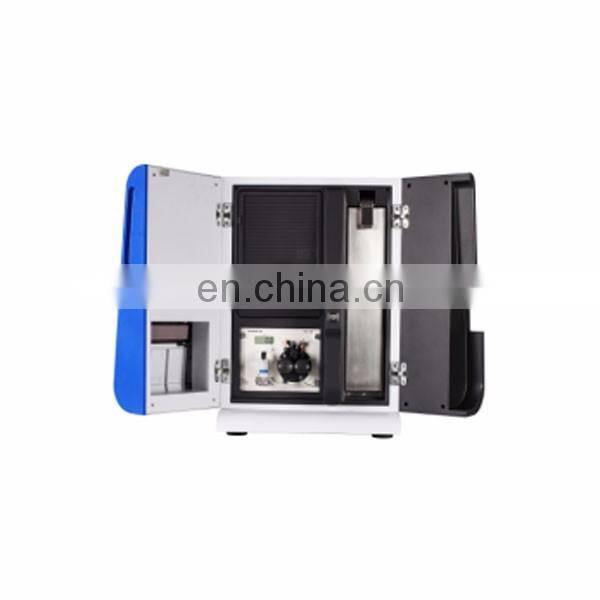

CIC-D160 Ion Chromatograph

CIC-100 Ion Chromatograph

1.     Introduction

CIC - D160 ion chromatograph is a new modular design of the high stability of ion chromatograph, combining ShengHan independent research and development core technology products and foreign excellent machining process equal to one, not only can be configured conductance detector, combined with powerful chromatography workstation and precision circuit control system, the CIC - D160 ion chromatograph can also configure the UV-Vis detector implementating related to environment, food, chemical, geological, and many other areas of conventional  anion and cation, sugar, amino acids, other small molecule organic acids, cyanide, etc.

2.    Major technical standards

Ion Chromatographic Pump

Type: WellChrom HPLC-Pump KP-24

Pressure range: 0~42 MPa

Volume of flow range: 0.001~9.999 mL/min

Pressure accuracy: 0.1 Mpa

Volume of flow accuracy (setting error): RSD≤0.1%

Over pressure and leak protection: It will give an alarm and stop working in these situation.

Digital Temperature-control detection system

1. Conductivity Detector

Structure: five-polar ring passively and 316 stainless steel conductance detector

Detection Mode: Double conductivity detection

Conductance cell size: ≤0.8μl

Output voltage: -5000~5000 mV (to regulate)

Measure range: 0~30000 μS/cm (10 level to choose)

Resolution : ≤0.025 ns

Conductance cell temperature: 5~50℃(to regulate)

Constant temperature accuracy: ±0.01℃

Baseline noise: ≤0.6%FS

Baseline drift: ≤2.0%FS

2. UV-Vis Detector

Wavelengh range: 190~740 nm

Light source: deuterium light

Wavelengh accuracy: ±1nm

Spectrum scan: stop working to scan baseline noise automatically: 2×10^-5 AU(254 nm, room temperature)

Baseline drift: 15×10-5 AU/h (254 nm, room temperature)

Minimum concentration of detection: 5×10^-9g/mL(254 nm, naphthaline standard solution, eluents of methanol, room temperature)

Post-Column Derivation UV-Vis detection: Fe(Ⅲ) ≤1 ppb; ≤0.5 ppb;

≤1 ppb; ≤1 ppb

Flow System

The whole plastic pipeline: made of PEEK materials

Six-way valve: Rheodyne electromagnetic six-way valve made in America, compression resistance of 7000 psi. Collect signals automatically.

Analytic Capability

For high capacity anion column, pH 0~14, compatible organic solvent, etc. can be analyzed at the same time with one injection.

For high capacity cation column, lycine, ,Choline chloride can be separated and analyzed.

Different types of detectors can detect several transition metallic ions, heavy metallic ions and special ions.

Analyse repeatbility: ≤1.0% (see SO₄^2-)

Linear range: ≥10³

Minimum concentration of detection: ≤0.0001μg/g(see  Cl^- ); ≤0.005μg/g(see BrO₃^-);≤0.01μg/g(see Ca²⁺);≤0.001μg/g(see Cu²⁺);≤0.001μg/g(see CrO₄^2-);
