GC522 Gas Chromatograph
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | WUFENG-S | Place of Origin | Shaanxi, China | |
| Model Number | GC522 |
Product Description

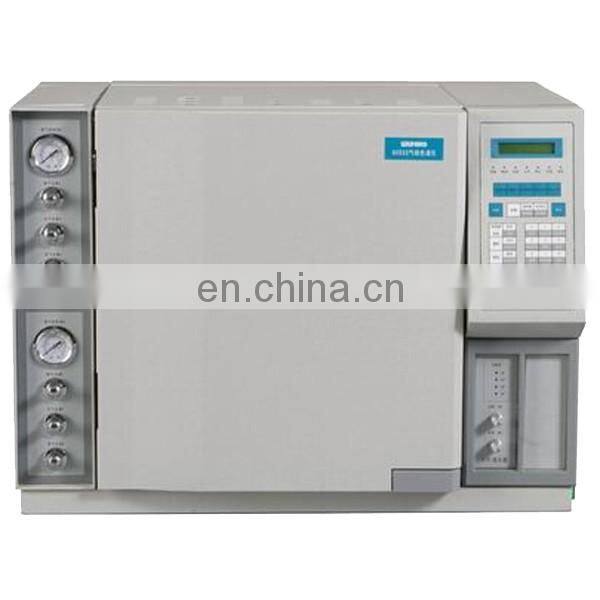

GC522 Gas Chromatograph
Features
Advanced Microcomputer System with Excellent Control Function
Flexible Sample Injector System Satisfying Various Analysis Requirements
2 Kinds of Sample Injector Systems with Capillary Columns Suitable for Various Specifications of Capillary Columns
Detector with High Sensitivity and Stability
Double Stable Gas Circuit with High Precision
Powerful Data Processing System for Your Free Choices
Technical parameters
Temperature Control
Range of Temperature Control: with a room temperature above 7℃ to 400 ℃ (the increment is 1 ℃)
Objects of Temperature Control: column heater, detector, thermal conductivity cell, sample injector and accessories
Ascending Stages: five stages
Ascending Speed: 0.1℃~40℃/min (the increment is 0.1 ℃)
Constant-Temperature Period: 055minS (the increment is 1min)
Flame Ionization Detector (FID)
Sensitivity: M≤1×10-11g/s (C16)
Optimal Test Result: M≤ 8* 10-12g/s (C16)
Noise: ≤5×10-14A
Excursion: ≤6×10-13A/h
Linear Range: ≥106
Thermal Conductivity Detector (TCD)
Sensitivity: ≥2500mV·mL/mg (C16)
Noise: ≤20μV
Excursion: ≤30μV/h
Maximal Sensitivity: 10000mV·mL/mg (electronic magnification)
Linear Range: ≥104
Electron Capture Detector (ECD)
Limit of Detection: ≤2×10-13gram per second(r-666)
Linear Range: ≥103
Utmost Operating Temperature: 350℃
