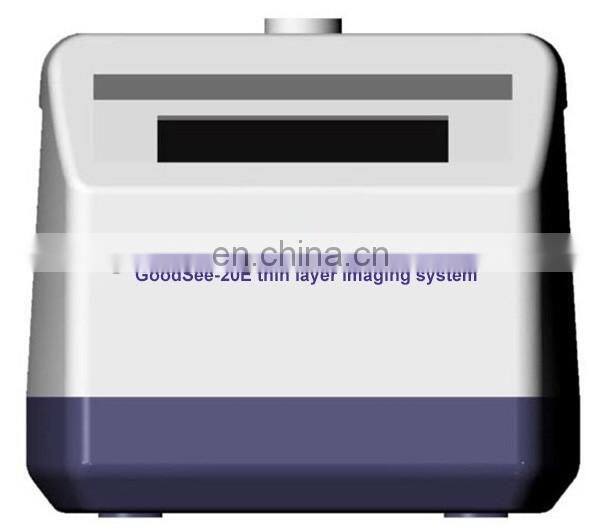

GoodSee-20E Thin Layer Imaging System

GoodSee-20E thin layer imaging system

Introduce:

Thin layer chromatography is the unique advantage of thin layer chromatography,Chinese herbal medicine research and application must provide a thin layer chromatography picture,GoodSee -20E is a high performance,simple operation image analysis system,

All the functions of the thin layer image record, and have a certain quantitative and semi quantitative function, can be used for accurate sample analysis.

Main function of GoodSee -20E:

1,Shooting and archiving of speckle color images of thin layer chromatography;

2,Correction of image distortion;

3,Correction the uneven shoot the light

4,Image annotation and text editing;

5,Calculate and real time direct RF value;

6,use high precision background points to achieve quantitative;

7,show report include Rf value ,peak area,content and image ;

Main components of GoodSee -20E:

1,Automatic control shoot camera bellows;

2,Special digital camera(with UV fluorescent microscope);

3,TSTAR-20EThin layer image analysis software;

Technical parameters :

1,shoot size:maxmium 200×200mm;

2,shoot light source :UV254 nm,UV365nm,Visible light;

3,software environment:WIN2000/XP;

4,power supply :220V  50HZ  90W;

5,Resolution:more than 400 million pixels;

6,communicate port :RS232port

Apply to the Analysis of traditional Chinese medicine fingerprint, Traditional Chinese medicine new drug application, quality analysis of traditional Chinese medicine an so on.The appropriate upgrade can become an image type dual wavelength thin layer chromatographic scanner. (note:Image type dual wavelength TLC scanner is an illegal type of thin layer chromatographic scanner, Can only be used for quality control of traditional Chinese medicine. )

If you have higher analysis requirements, please choose our GOODLOOK 1000 automatic thin layer imaging system
