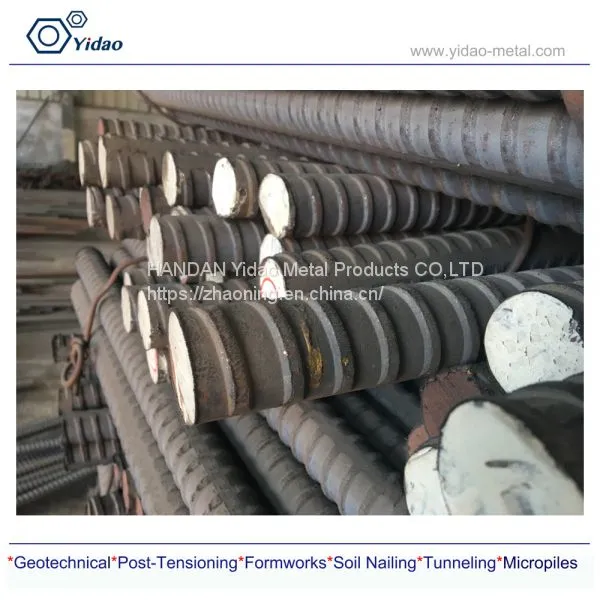

high Prestressing concrete PSB550 steel bars and rebar
- 50000 Ton / Tons per Month
- tianjin port
- L/C Credit Card
- High Strength Fully Thread Steel Bar for Prestressing Concrete
- PSB830 25mm Scres-thread rebar Steel bars for the prestressing of concrete
- Anti-floating anchor/ hot rolled high strength /prestressed concrete thread bar
- prestressed concrete steel anchorage anchor plate for thread steel bars system
- steel connectors/flat and domed anchor plate square/ concrete anchor plates for thread steel bars system
- thread system Screw Bar anchorage anchor plate for concrete construction tunnelling and minin
Product Details
Brand Name: | oem | Place of Origin: | China | Model Number: | 01 |
Diameter: | 26mm-40mm | Length: | Other, 9m-12m or costomized | Application: | Post-Tensioning/ Geotechnical/ Formworks/ Ground Anchors/Soil Nailing /Tunneling/ Mining |
Standard: | AISI, ASTM, BS, GB | Grade: | Other, psb1080 |
Product Description
YIDAO METAL PRODUCTS
YIDAO METAL PRODUCTS,Which is a leading manufacturer in china.
The main products we deal in are Thread Bar(tension bars/high strength thread bar) and Thread bar Accessories.
Such as Hex nut,bolt,Domed nut,Anchor bolt,Couplers,bolt coupler,Spring bar,Bearing plate,Flate washer,etc.
Thread bar Grand:PSB830/PSB930/PSB1080 Diameter Range:M20/M25/M32/M36/M40/M50/M63.5
Surface:Plain/H.D.G/Epoxy resin coated
Accessory Diameter Range: 12mm/16mm/20mm/25mm/32mm/36mm/40mm/50mm/63.5mm OR Customized
In application of Construction/Bridge/Concrete reinforcement /Bar systems/Urban railways/High speed way/ Post-Tensioning/Geotechnical/Formworks/Ground Anchors/Soil Nailing/Tunneling/Mining
prestressing screw thread steel bar for concrete
High strength planished concrete renforcing bar
1. Standard: GB/T 20065-2006 ,ASTM A722
2.Material:40Si2MnV
3.Diameter: 15-63.5mm
4. Length: according to customer's requirements
5.Grade: PSB500,PSB785,PSB830,PSB930,PSB1080,JL540,JL800,ASTM A722 and others.

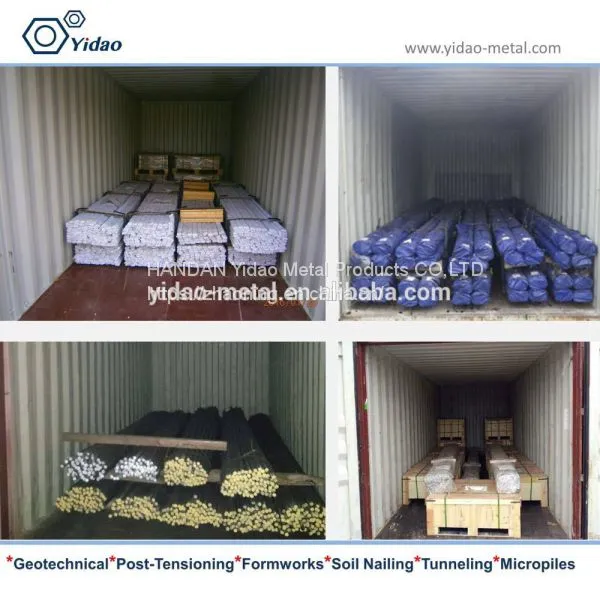

6. Packing: in bundles

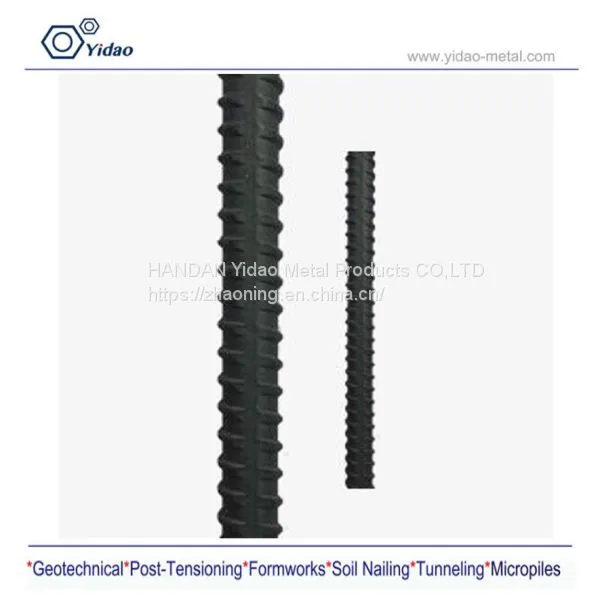

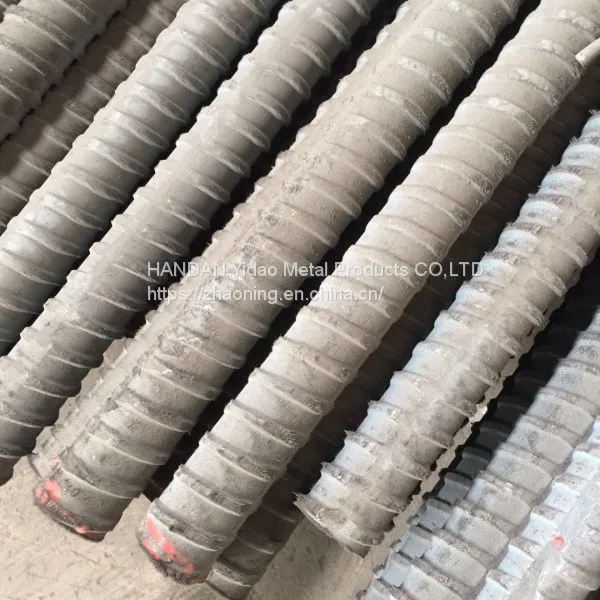

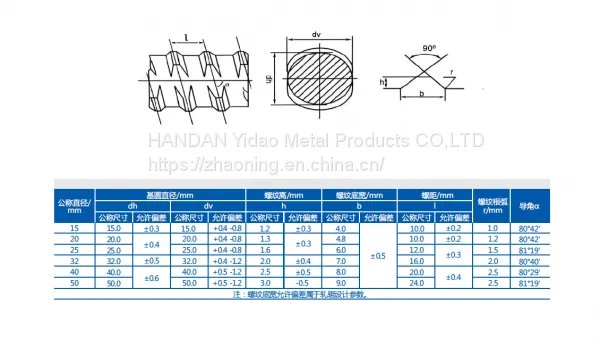

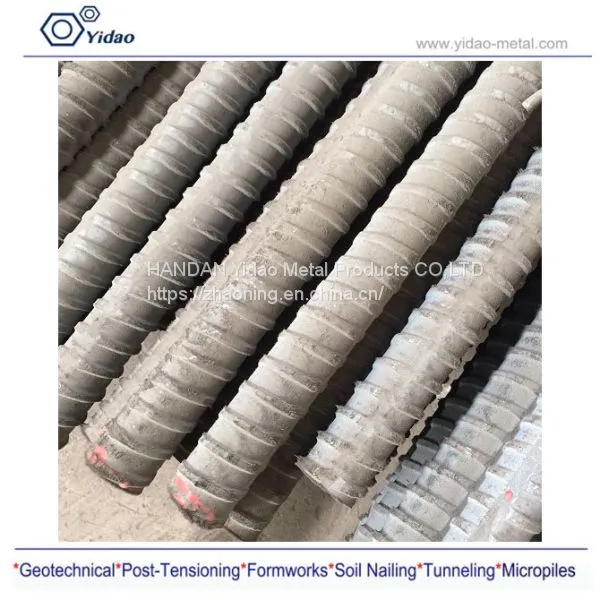

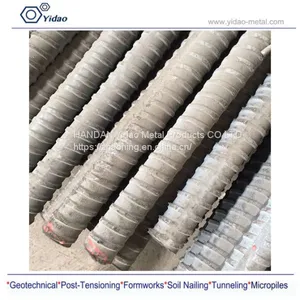

The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread The outline dimensions of the screw thread steel bars for the prestressing of .concrete manufactured by us accord with the regulation for the outline and dimension of screw thread steel bars for the prestressing of concrete provided by Highway LAYOUT Design Institute under the Ministry of Communication
Screw thread steel bars Details
Prestressing screw bar
1. Application: prestressing concrete building construction, such as coal mining roofing, high way, railway...
2. Grade: (yield strength) 500, 555 785, 830 ,930, 1080mpa
(tensile strength) 630, 777, 980, 1030, 1080, 1230mpa.
3. Diameter:15mm,18mm,20mm,32mm,36mm,40mm,50mm,63.5mm,
4. Technology: Hot rolled, Left-handed and dextral

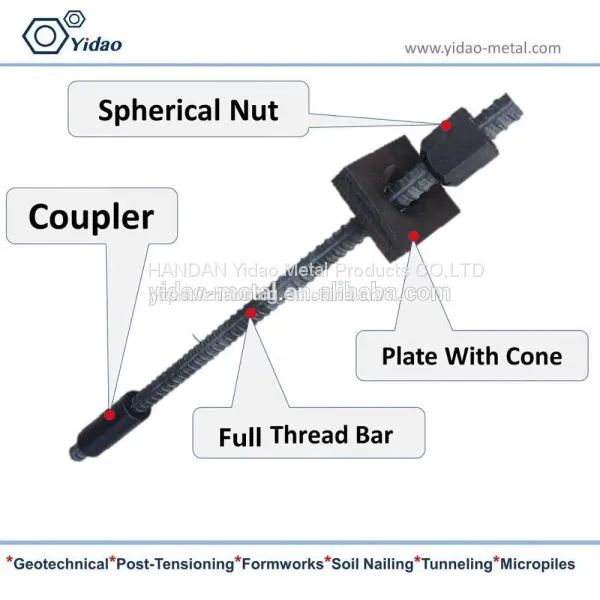

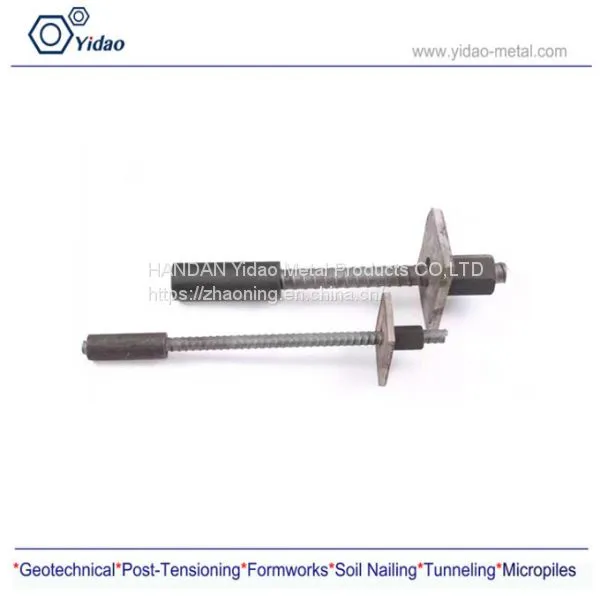

5. Accessories: nut ,coupler, plate, washer
6. Length: Any length you like
7. Coating: galvanized or epoxy coating
8. Delivery condition: New production or goods in stock. based on your requirement.
9. ISO Certificate
Coupler for PC stressing bar specification:
Nominal Diameter mm | L mm | I mm | DI mm | Φ mm | Weight (kg/pc) |
25 | 126 | 45 | 50 | 25.4 | 1.3 |
32 | 168 | 60 | 60 | 32.5 | 2.25 |
36 | 180 | 65 | 70 | 36.6 | 3.6 |
40 | 220 | 80 | 74 | 41.0 | 4.63 |
50 | 270 | -- | 88 | 51.0 | 8.05 |
63.5 | 260 | -- | 102 | 64.0 | 9.05 |
Plate for screw thread bar/PC bar/stressing bar specification :
Nominal Diameter mm | Size marking | |||||
L1 | L2 | R1 | R2 | φ | Weight (kg/pc) | |
15 | 80 | 80 | 12 | 22 | 0.7 | |
20 | 80 | 80 | 16 | 28 | 0.7 | |
25 | 120 | 120 | 13.5 | 20 | 35 | 2.1/2.0 |
28 | 100 | 100 | 14 | 38 | 1.2 | |
32 | 140 | 140 | 15.5 | 24 | 45 | 3.5/3.4 |
36 | 150 | 150 | 15 | 30 | 50 | 4.8/4.6 |
40 | 160 | 160 | 15 | 30 | 55 | 5.53/5.2 |
50 | 200 | 200 | 50 | 14.1 | ||
63.5 | 240 | 240 | 50 | 21.8 |
