Low Voltage Xlpe Aluminum Cable 240mm2

  Product Description

Low voltage  xlpe aluminum cable 240mm2

1 Product Standard

This product is manufactured according to GB/T12706.1, equivalent to IEC60502.1. Or BS, DIN, ICEA standard as customer request.

2 Application

The product is suitable for power transmission and distribution lines with rated power frequency voltage up to and including 0.6/1KV.

Operating Performance

1). Rated power frequency voltage Uo/U: 0.6/1KV.
2). Max. Permissible continuous operating temperature of conductor: 90℃
3). Max. Short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 250℃

4). The ambient temperature under installation should not below 0℃
5). The bending radius of a cable should not be less than 15 times of the cable diameter.

6). The test voltage (A.C.): 3.5kV/5min.

7). The flame-retardant properties of cable comply with grade A, B, C of GB/T19666-2005 or IEC60332.

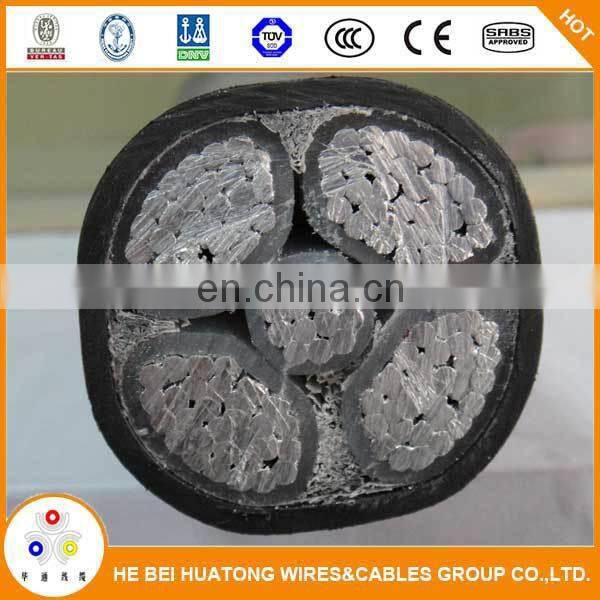

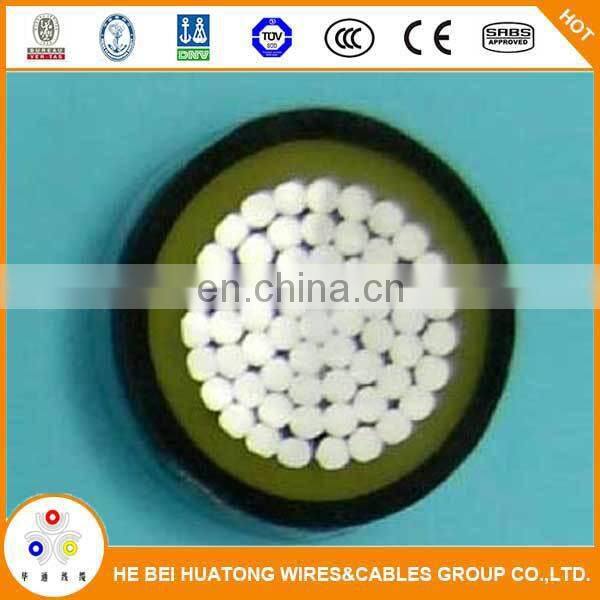

3 Construction:

Conductor: Solid or stranded copper,aluminum

Insulation: Cross-linked polyethylene( XLPE or PVC)

Circuit Identification: The insulation shall be red, black

Filler: Polypropylene lament with lapped binding tape

Inner Sheath: Polyvinyl chloride (Black)

Armor: Galvanized steel wire

Core-covering: Binding tape

Outer Sheath: Polyvinyl chloride (Black)

Package:  Wooden Drum Package or Iron-wooden drum

4 Type and Name:

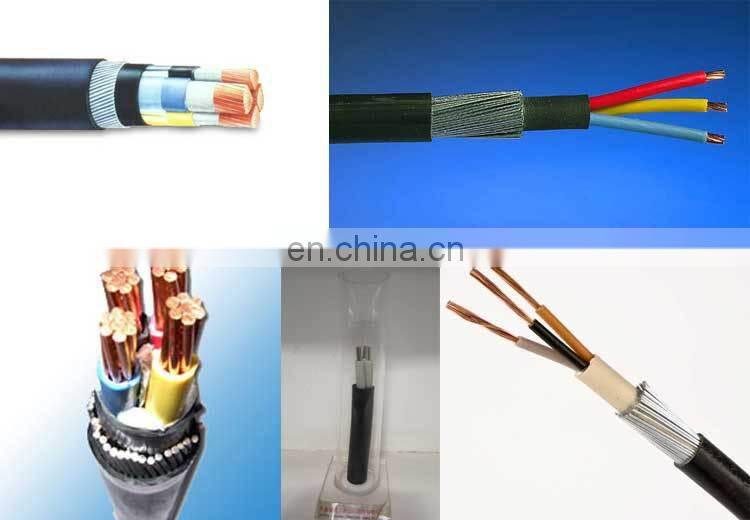

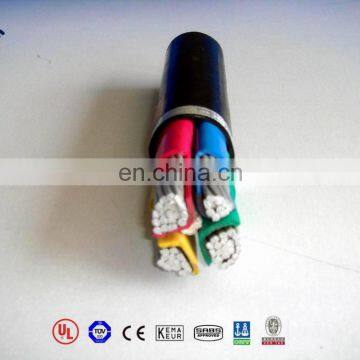

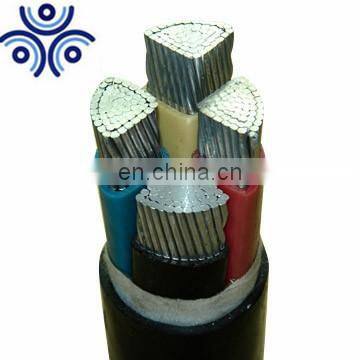

  Details Show

Sow

   Shipping & Packaging

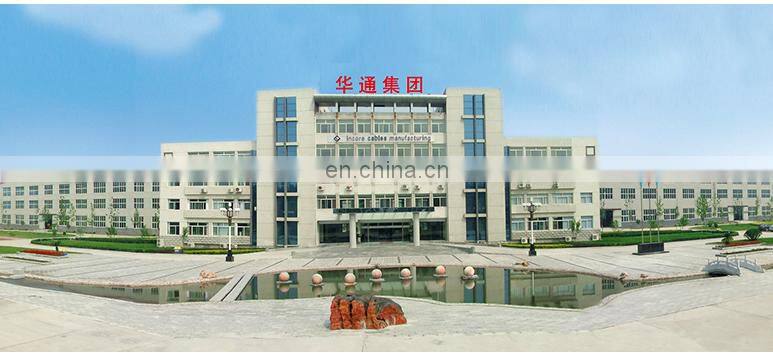

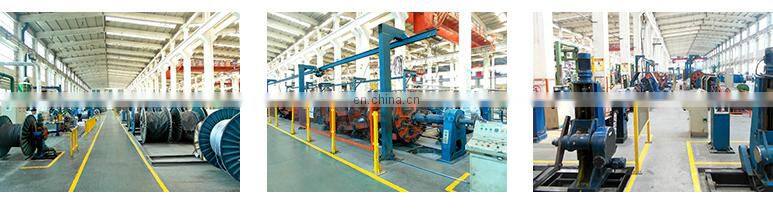

  Company Introduction

 HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

 Certification

 We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thesame time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

  FAQ

 (1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express

account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is

delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months

before the date you would like to get the products at your country.
