Home > Products > ELECTRICAL CABLES > RVV 3 Core 2.5mm Flexible Wire PVC Insulated RVV Wire
RVV 3 Core 2.5mm Flexible Wire PVC Insulated RVV Wire
- Tianjin port Shanghai port Qingdao port or others
- T/T Credit Card
You May Like
-
4 sq mm Copper Core Pvc Insulation Flexible Wire
-
10 sq mm Copper Core Pvc Insulation Flexible Wire
-
4 sq mm Copper Core Pvc Insulation Flexible Wires
-
Copper Cable Prices 1.5mm 2.5mm 4mm 6mm 10mm 16mm
-
Hot Sell 3 Core Shielded Power Cable With ce Mark
-
PVC Insulated Flexible Flat Cable With CE Certificate
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | RVV | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description

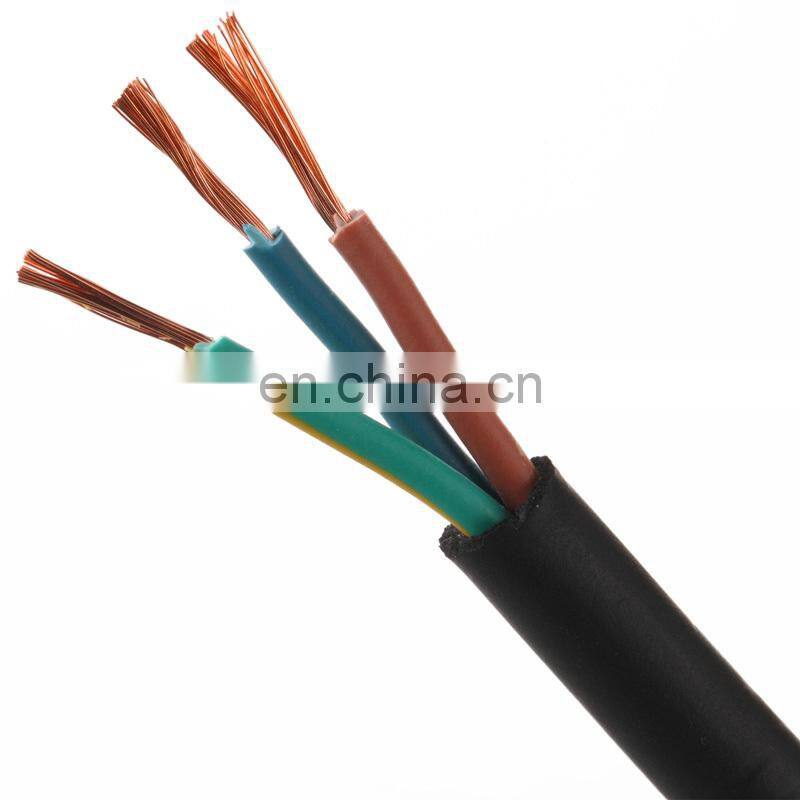

RVV 3 core 2.5mm flexible wire PVC insulated RVV wire
1.Specifications
1.99.99997% copper wire
2. Electric conductivity: 100%
3.0.015-8.0mm wires
4. High conductivity >102%IACS
5. Thermal Class: 130-220C
1)Standard:IEC227-3:1997
2)Voltage: 300/300V 300/500V
3)Application: electric equipment, household...
4)Working temperature:70°C
metric(mm2) | insulation | sheath | average | finished product | 20°Cconductor |
thickness(mm) | thickness(mm) | diameter(mm) | similar weight(kg/km) | resistance≤Ω/km | |
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V | |||||
2×0.5 | 0.5 | 0.6 | 5.9 | 32.8 | 39 |
2×0.75 | 0.5 | 0.6 | 6.3 | 39.2 | 26 |
3×0.5 | 0.5 | 0.6 | 6.3 | 42.1 | 39 |
3×0.75 | 0.5 | 0.6 | 6.7 | 51.2 | 26 |
60227 IEC 53(RVV), 60227 IEC 57(RVV-90) 300/500V | |||||
2×0.75 | 0.6 | 0.8 | 7.2 | 52.3 | 26 |
2×1.0 | 0.6 | 0.8 | 7.5 | 59.3 | 19.5 |
2×1.5 | 0.7 | 0.8 | 8.6 | 78.7 | 13.3 |
2×2.5 | 0.8 | 1 | 10.6 | 119.2 | 7.98 |
3×0.75 | 0.6 | 0.8 | 7.6 | 64.8 | 26 |
3×1.0 | 0.6 | 0.8 | 8 | 74.3 | 19.5 |
3×1.5 | 0.7 | 0.9 | 9.4 | 104.4 | 13.3 |
3×2.5 | 0.8 | 1.1 | 11.4 | 157.5 | 7.98 |
4×0.75 | 0.6 | 0.8 | 8.3 | 79.4 | 26 |
4×1.0 | 0.6 | 0.9 | 9 | 95.5 | 19.5 |
4×1.5 | 0.7 | 1 | 10.5 | 134 | 13.3 |
4×2.5 | 0.8 | 1.1 | 12.5 | 196 | 7.98 |
5×0.75 | 0.6 | 0.9 | 9.3 | 191.6 | 26 |
5×1.0 | 0.6 | 0.9 | 9.8 | 114.1 | 19.5 |
5×1.5 | 0.7 | 1.1 | 11.6 | 165.8 | 13.3 |
5×2.5 | 0.8 | 1.2 | 13.9 | 242.3 | 7.98 |
60227 IEC 52(RVV), 60227 IEC 56(RVV-90) 300/300V | |||||
2×0.5 | 0.5 | 0.6 | 5.9 | 32.8 | 39 |
2×0.75 | 0.5 | 0.6 | 6.3 | 39.2 | 26 |
3×0.5 | 0.5 | 0.6 | 6.3 | 42.1 | 39 |
3×0.75 | 0.5 | 0.6 | 6.7 | 51.2 | 26 |
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

Shipping & Packaging

Company Introduction
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express
account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
