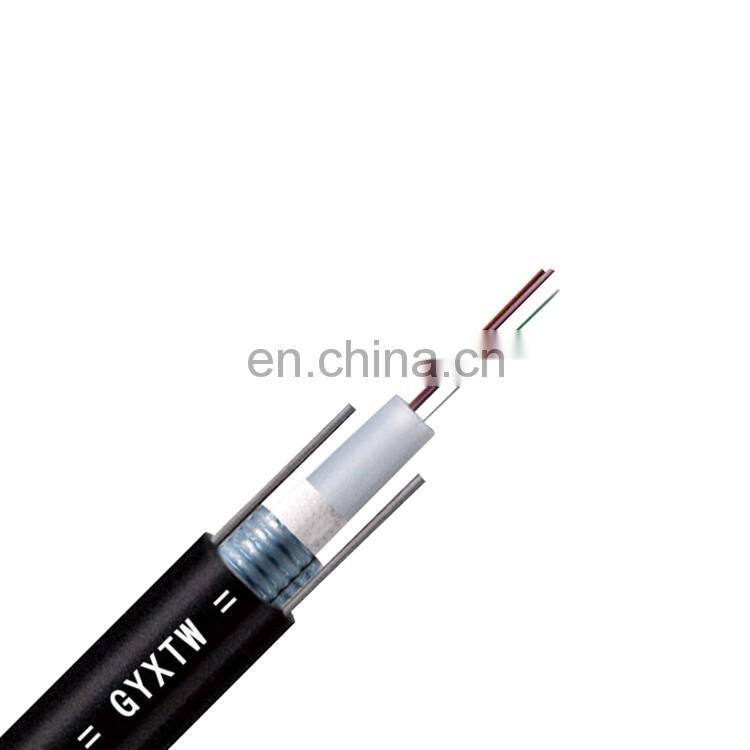

2 4 6 8 12 24 48 Core Outdoor Armoured Duct Single Mode Optical Fiber Cable GYXTW

Application:

1.Access network   2.Bureaus network   3.Metropolitan network  4.Aerial & conduit/duct application

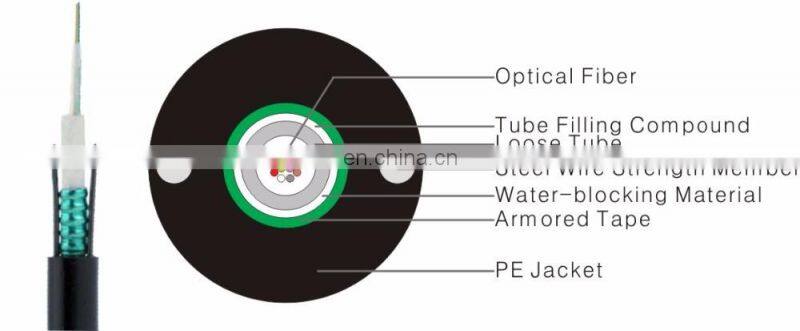

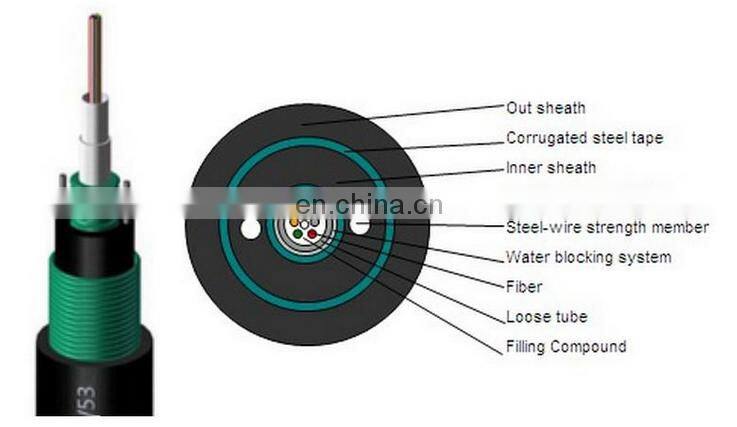

GYXTW single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

Advantage:

1.Low dispersion and attenuation

2.Light weight, small diameter, easy to lay

3.Good tensile strength and crush resistance performance

4.Good moisture-resistance, water blocking, and flexibility

5.Good mechanical and temperature resistant performance

Characteristics:
1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2.Critical protection to fibers,based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube.
3.Special compact structure to avoid the loose tube shrinkage.
4.Excellent crush resistance and flexibility.
5.PSP enhances the cable crush-resistance, impact-resistanceand moisture-proof.
6.Two parallel steel wires ensure tensile strength.Small diameter, light weight and installation friendliness with long delivery length.
7.Excellent ultraviolet prevention with PE sheath.
8. Small diameter, light weight and installation friendliness

Standards:
Comply with standard YD/T 769-2010
